NASA SuperNova Tri Colour Mast LED Navigation Light Boat Waterproof

NASA Marine

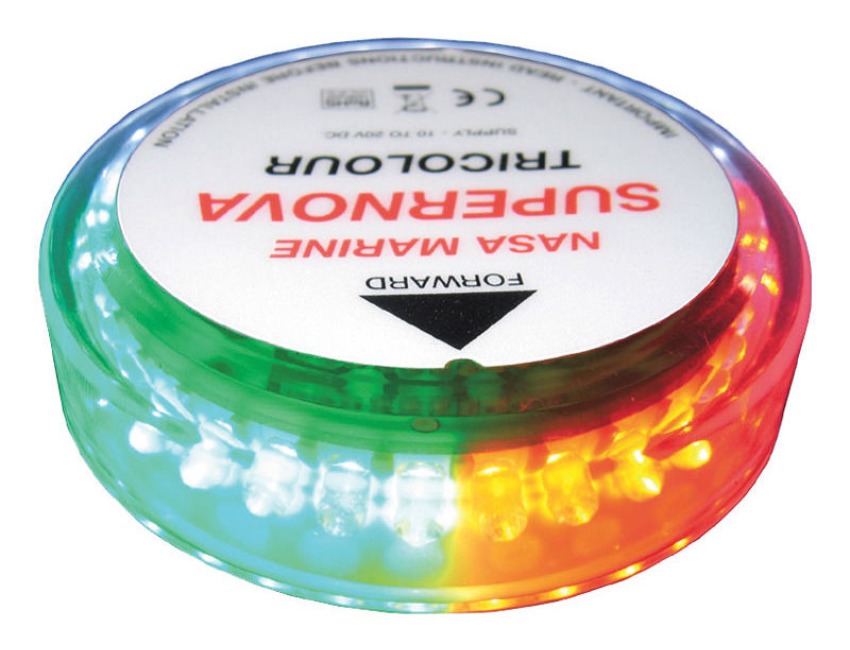

Supernova - TriColour

Supernova lights use high efficiency LEDs ensuring long life and low power consumption.
A tough polycarbonate shell protects Supernova from the elements while a Gore-Tex membrane vent ensures equalization of pressure on the seals.
A simple two wire connection powers the TriColour light. Connecting the red wire to positive and the black wire to negative will illuminate the tricolour light.
Supernova navigation lights are intended for use on vessels up to 12 metres in length.
They comply with CE generic EMC standards and are waterproof to IP65 and IP67.
There is no specific EU standard for LED navigation lights. Supernova lights do not have any national approvals.
Technical Specifications
Supply voltage 10 to 20 volts (For full brightness)
Supply current 200 mA @ 12 volts
(Typically 90% less than equivalent incandescent lamp)s
Night time visibility 2 nautical miles minimum
(25 degrees above and below the centerline)
Waterproofness IP67 (Submersion)
Dimensions 91 mm diameter x 133 mm Height (including mounting)
Configuration tri-colour 112.5 degrees red, 112.5 degrees green,135 degrees white.
