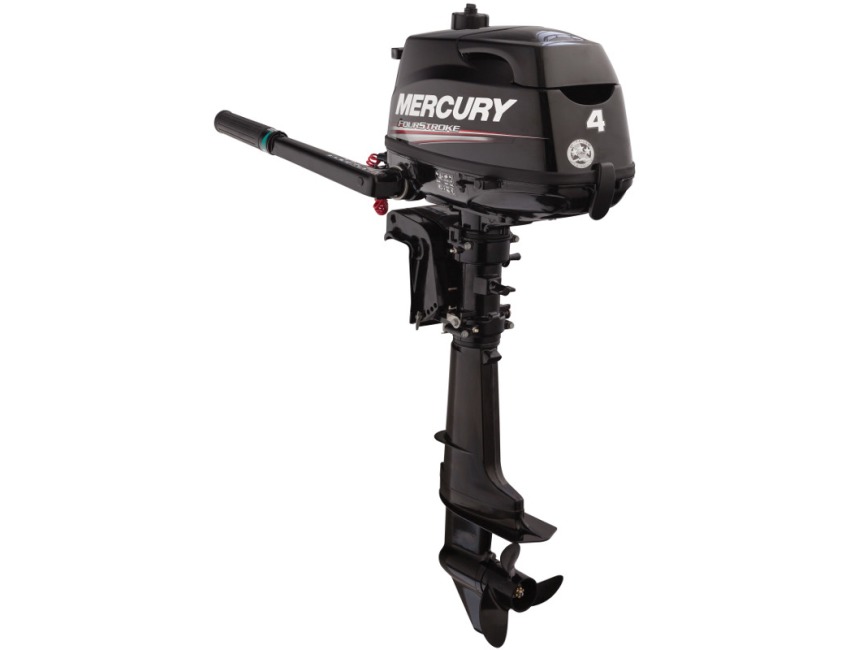

MERCURY F4M 4-Stroke Outboard Motor - Short - COLLECT ONLY

MERCURY F4M - COLLECTION ONLY

Lightweight.
Weighing just 25Kg, Mercury's 4Hp FourStroke outboards are easy to lift and carry.

Shallow Water.
Multiple trim positions enhance performance and enable shallow-water operation.

Easy to Start.
Automatic decompression bleeds off cylinder pressure to reduce the pulling force required to start the engine.

Quiet.
Through-prop exhaust on all Mercury® 4 - 6hp FourStrokes exits underwater for quiet operation.

Fueling Options.
Mercury® 4, 5 and 6hp FourStrokes feature integral fuel tanks with an external fuel-shutoff valve, as well as a fuel-tank cap on top of the cowl. For extended range, these engines also can be connected to a remote fuel tank placed in the boat.

F5M, ML, Sail Specifications:

M= Short Shaft, Manual Start, F-N-R Gear Shift, internal Tank

ML= Long Shaft, Manual Start, F-N-R Gear Shift, internal Tank

Sail= Long Shaft, Manual Start, F-N-R Gear Shift, Internal Tank, Battery Charing, Dual thrust prop

123cc 3.7kW
Single cylinder
Long shaft (508mm) Short shaft (381mm)
Four stroke
2.15:1 gear ratio
Weight 25kg
Manual start
Forward neutral and reverse
Integral 1.2 ltr fuel tank
Warranty: Five year leisure / two year / 1000 hours commercial
