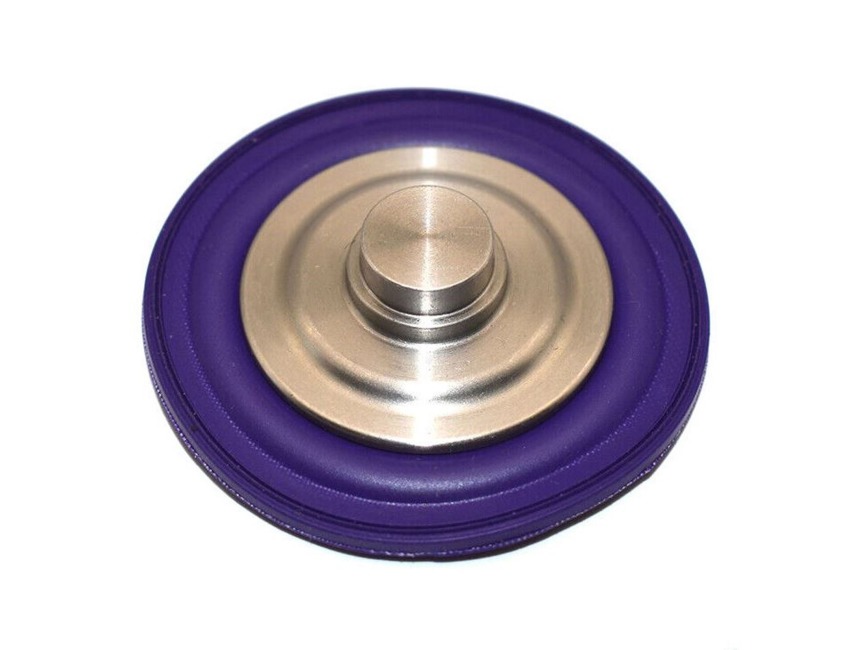

Mercury - DIAPHRAGM ASSEMBLY 135HP - 250HP DFI - Quicksilver - 804533
Click to enlarge
Codex
MPN 804533
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Quicksilver - DIAPHRAGM ASSEMBLY
Part No: 804533Superseded from:
Fits the following:
200 DFI M2 JET DRIVE (POWERHEAD) - [0E384500 THRU 0E433351]
200 DFI M2 JET DRIVE (PUMP) - [0E379931 THRU 0E423075]
200 DFI JET DRIVE (POWERHEAD) - [0E384500 THRU 0E435741]
200 DFI JET DRIVE (PUMP) - [0E379931 THRU 0E428850]
200 DFI JET DRIVE (PUMP) - [0M954922 THRU 0M964698]
250 DFI JET DRIVE (POWERHEAD) - [0E407100 & Up]
250 DFI JET DRIVE (PUMP) - [0E407100 & Up]
250 DFI M2 JET DRIVE (POWERHEAD) - [0E407100 & Up]
250 DFI M2 JET DRIVE (PUMP) - [0E407100 & Up]
3.0L DFI - [0T997974 THRU 1E003045]
225 HP Pro XS 6 CYL (3.0L) - [1B104549 THRU 1B426560]
225 HP SPORT XS 6 CYL (3.0L) - [1E000797 THRU 1E002583]
150 HP Pro XS 6 CYL (2.5L) - [1B690542 THRU 2B535572]
3.0L DSI (Diesel Spark Ignition) - [1E052967 & Up]
225 HP DTS 6 CYL (3.0L) - [0T599000 THRU 1B417701]
200 HP DTS 6 CYL (3.0L) - [0T980000 THRU 1B417701]
225 HP DTS 6 CYL (3.0L) - [1B417702 THRU 1B504988]
200 HP DTS 6 CYL (3.0L) - [1B417702 THRU 1B504988]
200 HP 6 CYL (2.5L) - [0G960500 THRU 0T178499]
225 HP 6 CYL (2.5L) - [0G960500 THRU 0T178499]
200 HP 6 CYL (2.5L) - [0T178500 THRU 0T598999]
225 HP 6 CYL (2.5L) - [0T178500 THRU 0T598999]
200 HP 6 CYL (2.5L) - [0T599000 THRU 0T800999]
225 HP 6 CYL (2.5L) - [0T599000 THRU 0T800999]
225 HP 6 CYL (3.0L) - [0T801000 THRU 1B417701]
200 HP 6 CYL (3.0L) - [0T801000 THRU 1B417701]
225 HP 6 CYL (3.0L) - [1B417702 THRU 1B504988]
200 HP 6 CYL (3.0L) - [1B417702 THRU 1B504988]
200 HP 6 CYL (2.5L) - [0G760300 THRU 0G960499]
225 HP 6 CYL (2.5L) - [0G760300 THRU 0G960499]
135 HP V6 CYL (2.5L) - [0G960500 THRU 0T178499]
115 HP V6 CYL (2.5L) - [0G960500 THRU 0T178499]
150 HP V6 CYL (2.5L) - [0G960500 THRU 0T178499]
135 HP V6 CYL (2.5L) - [0T178500 THRU 0T800999]
150 HP V6 CYL (2.5L) - [0T178500 THRU 0T800999]
175 HP V6 CYL (2.5L) - [0T178500 THRU 0T800999]
135 HP V6 CYL (2.5L) - [0T801000 THRU 1B226999]
150 HP V6 CYL (2.5L) - [0T801000 THRU 1B226999]
175 HP V6 CYL (2.5L) - [0T801000 THRU 1B226999]
135 HP V6 CYL (2.5L) - [1B227000 THRU 1B417701]
150 HP V6 CYL (2.5L) - [1B227000 THRU 1B417701]
175 HP V6 CYL (2.5L) - [1B227000 THRU 1B417701]
135 HP V6 CYL (2.5L) - [0G760300 THRU 0G960499]
150 HP V6 CYL (2.5L) - [0G760300 THRU 0G960499]
200 HP XS 6 CYL (2.5L) - [0T235000 THRU 0T818180]
200 HP XS 6 CYL (2.5L) - [0T818181 THRU 1E000796]
200 HP XS 6 CYL (2.5L) - [1E000797 THRU 1E002110]
250 HP XS 6 CYL (3.0L) - [0T651945 THRU 0T818042]
250 HP XS 6 CYL (3.0L) - [0T818043 THRU 0T997973]
250 HP XS 6 CYL (3.0L) - [0T997974 THRU 1E000796]
250 HP XS 6 CYL (3.0L) - [1E000797 THRU 1E002341]
2.5XS 2.5L DFI - [0T997974 THRU 1E000796]
200 DFI JET DRIVE (POWERHEAD) - [1B321662 THRU 1B321669]
200 DFI JET DRIVE (POWERHEAD) - [0E435742 & Up]
200 DFI JET DRIVE (PUMP) - [0M964699 & Up]
200 DFI M2 JET DRIVE (PUMP) - [0M965234 & Up]
175 HP Pro XS 6 CYL (2.5L) - [1B516339 THRU 2B535624]
200/225/200 Pro XSOutboard225 HP 6 CYL (3.0L) - [1B504989 THRU 2B535086]
200/225/200 Pro XSOutboard200 HP 6 CYL (3.0L) - [1B504989 THRU 1B912785]
200/225/200 Pro XSOutboard200 HP Pro XS 6 CYL (3.0L) - [1B504989 THRU 1B912785]
200/225/200 Pro XSOutboard250 HP 6 CYL (3.0L) - [1B528615 THRU 2B535086]
250Outboard225 HP 6 CYL (3.0L) - [1B504989 THRU 2B535086]
250Outboard200 HP 6 CYL (3.0L) - [1B504989 THRU 1B912785]
250Outboard200 HP Pro XS 6 CYL (3.0L) - [1B504989 THRU 1B912785]
250Outboard250 HP 6 CYL (3.0L) - [1B528615 THRU 2B535086]
225 HP Pro XS 6 CYL (3.0L) - [1B752547 THRU 2B535608]
250 HP Pro XS 6 CYL (3.0L) - [1B752547 THRU 2B535608]
200 HP 6 CYL (3.0L) - [1B912786 THRU 2B535571]
200 HP Pro XS 6 CYL (3.0L) - [1B912786 THRU 2B535571]
135 HP V6 CYL (2.5L) - [1B417702 THRU 1B737495]
150 HP V6 CYL (2.5L) - [1B417702 THRU 1B580029]
175 HP V6 CYL (2.5L) - [1B417702 THRU 1B508457]
110 Jet (2.5L) - [1B690542 THRU 1B974227]
225 HP DTS 6 CYL (3.0L) - [1B504989 THRU 1B964735]
200 HP DTS 6 CYL (3.0L) - [1B504989 THRU 1B964735]
3.0L DFI - [1E003046 & Up]
300 HP XS 6 CYL (3.2L) - [1E001867 THRU 1E052057]
250 HP XS 6 CYL (3.0L) - [1E002342 THRU 1E051113]
250 HP Sport XS 6 CYL (2.5L) - [1E002342 THRU 1E051823]
225 HP Pro XS 6 CYL (3.0L) - [1B426561 THRU 1B752546]
250 HP Pro XS 6 CYL (3.0L) - [1B426561 THRU 1B752546]
225 HP SPORT XS 6 CYL (2.5L) - [1E002584 THRU 1E050825]
225 HP XS 6 CYL (2.5L) - [1E002584 THRU 1B792195]
300 HP XS 6 CYL (3.2L) - [1E052058 THRU 1E053987]
200 HP XS 6 CYL (2.5L) ROS - [1E050852 THRU 1E053876]
200 HP XS SST 6 CYL (2.5L) - [1E050629 THRU 1E053875]
250 HP Sport XS 6 CYL (2.5L) - [1E051824 THRU 1E052994]
250 HP XS 6 CYL (3.0L) - [1E053158 THRU 1E053958]
Please contact us with your model and serial number if unsure
Specification List
| Sub-Type | - | Weight | .054 KG |
|---|---|---|---|
| Country of Origin | - | Tariff Code | - |
| Type | DIAPHRAGM ASSY |
