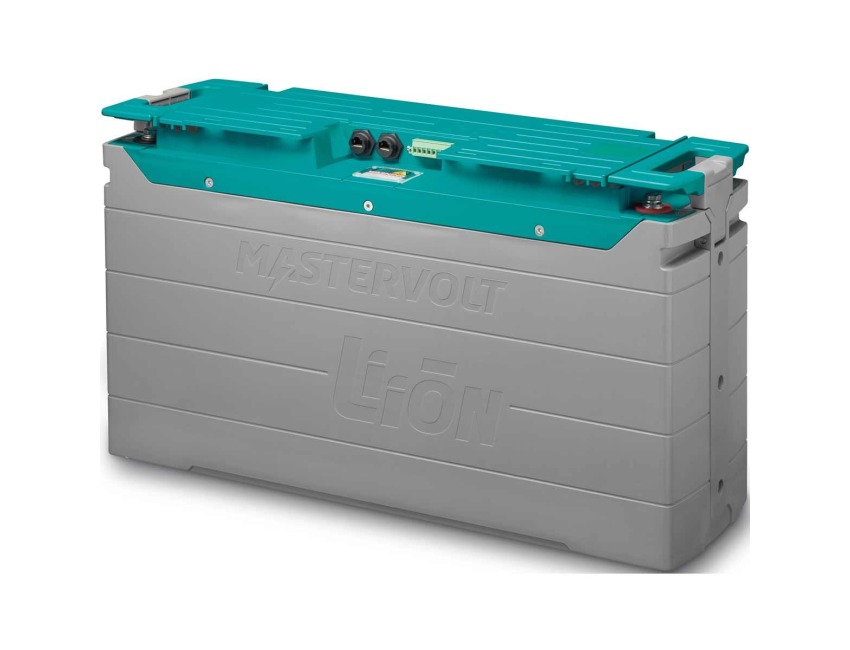

Mastervolt MLI ULTRA Lithium ION Battery 12V/6000-6KWh - 66016000
Click to enlarge
Codex
MPN 66016000
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Mastervolt MLI ULTRA Lithium ION Battery 12V/6000-6KWh - 66016000
Part No: 66016000
Mastervolt MLI Ultra 12V/6000-6kW/h Lithium Ion battery is heavy duty for ultimate performance. The MLI battery delivers ultimate Lithium Ion performance even under the harshest conditions, such as high charge and discharge currents, wet environments, mechanical shocks or vibrations. This is realised by combining our best Lithium-Iron Phosphate (LiFePO4) cells with a proprietary Battery Management System (BMS) inside a sturdy, waterproof housing.
The sophisticated Mastervolt BMS ensures optimal use of each individual cell. Integrated battery monitoring provides you with accurate and up-to-date information on the state of your battery. Integrated NMEA 2000, CZone or MasterBus communication allows complete system integration, to ensure the best possible recharging, while maximising the lifetime of your battery.
Self-learning balancing algorithm
The MLI Ultra batteries are equipped with a self-learning balancing algorithm that predicts the behaviour of each individual battery cell and balances proactively, resulting in a faster and more efficient charge cycle. The self-learning system eliminates unnecessary stress on the cells, resulting in an even longer Battery Cycle Life.
Mastervolt MLI Ultra 12/6000 Battery Features:
Ultimate performance, heavy duty Lithium Ion batteries.
BMS and LiFePO4 chemistry according to highest safety standards.
Saves up to 70% in space and weight.
More than three times the life span of traditional batteries.
Fast charging within 60 minutes.
Self-learning balancing algorithm for optimised performance and longer battery lifetime.
High charge / discharge rate up to 2.5 C.
Integrated battery monitoring (Ah consumed, state of charge).
Series connection up to 10 batteries possible.
MasterBus communication with any Mastervolt battery charger.
CZone and NMEA 2000 compatible.
Waterproof electronics compartment.
General specifications:
Recommended Continuous Discharge Current: ? 300A
Nominal battery energy capacity: 6000 Wh
Cycle life: 3500 cycles at 80% DOD at 25?C, max. C3 charge and C2 discharge
Max. charge current: 460A
Recommended charge current: ? 160A
Max. continuous discharge current: 300A
Peak discharge current: 1800A (10 sec.)
Battery monitoring: Integrated
MasterBus communication: Yes
CZone / NMEA 2000 communication: Yes
Mounting position: Upright or either long side
Technical specifications:
Battery chemistry: Lithium Iron Phosphate – LiFePO4
Protection degree: IP65 (electronics cabinet)
Parallel connection: Yes, unlimited
Series connection: Yes, up to 10
Protections: Over voltage, under voltage, over temperature
Safety relay: To be added mandatorily
Safety relay controls: Integrated
Please Note: for additional safety, Mastervolt stipulates the use of a safety relay as mandatory part of the battery installation. Safety relay 12 volt, product code 7700B-BSS.
Key Features
Lithium Ion
Ultimate performance, heavy duty
BMS & LiFePO4 to highest safety standards
Saves up to 70% in space & weight
More than 3x the life span of traditional batteries
Fast charging under 60 minutes
Self-learning balancing algorithm for optimised performance & longer battery life
High charge / discharge rate up to 2.5 C.
Integrated battery monitoring (Ah consumed, state of charge)
Series connection up to 10 batteries
MasterBus communication with any Mastervolt charger
CZone & NMEA 2000 compatible
Waterproof electronics compartment
Designed according to UN38.3
CE, E-Mark certified
Capacity - 460 Ah Nominal
Style - Lithium-Ion
Connections - M8 Terminals
Brand - Mastervolt
Application - Domestic
Voltage - 12V DC Nominal
Amps - Maximum discharge current (20 mins @ 25°C): 500A
Contents - MLI Ultra, Mounting straps, 2x M8 Bolt, spring washer, washer, MasterBus terminator, CZone drop cable, User & installation manual
Approvals - CE, E-Mark, UL1642 (cells only), FCC, RVIA compliant. DNV-GL pending
Height - 355mm (14") maximum including terminals / grip handles
Width - 622mm (24.5") maximum including grip handles
Depth - 197mm (7.8") maximum including grip handles
Weight - 46.7kg (103.0 lb)
Specification List
| Type | Lithium Battery |
|---|
