Mastervolt MASTERBUS MULTI PURPOSE CONTACT OUTPUT - 77030500
Click to enlarge
Codex
MPN 77030500
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

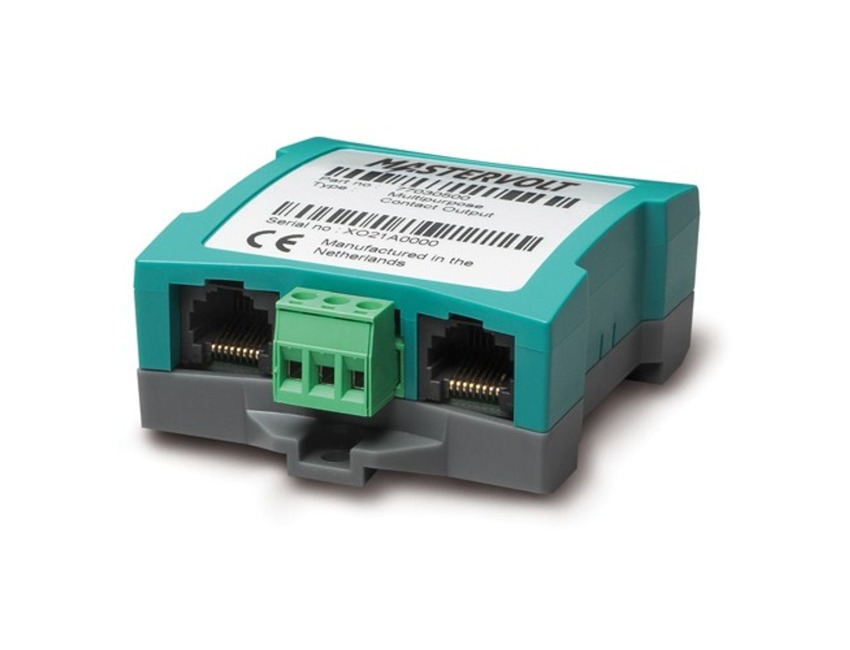

Mastervolt MASTERBUS MULTI PURPOSE CONTACT OUTPUT - 77030500
Part No: 77030500
The Mastervolt 77030500 gives a MasterBus system a controllable potential free contact and a usable CSI alarm contact, to expand the possibilities available. For example, it can be used to to control a ventilator, or to operate a generator based on data gathered from the battery system, increasing the automation capabilities of the system.
General specifications
Potential free contact: NO-C-NC – 1 A / 30 V DC
MasterBus powering: no
Dimensions, hxwxd: 66 × 78 × 32 mm (2.6 × 3.1 × 1.3 inch)
Weight: 0.08 kg (0.2 lb)
Delivered with: MasterBus cable, MasterBus terminator, user’s manual
Technical specifications
Protection degree: IP21
Brand - Mastervolt
Height - 66mm (2.6")
Width - 78mm (3.1")
Depth - 32mm (1.3")
Weight - 0.08 kg (0.2 lb)
Specification List
| Type | Parts |
|---|
