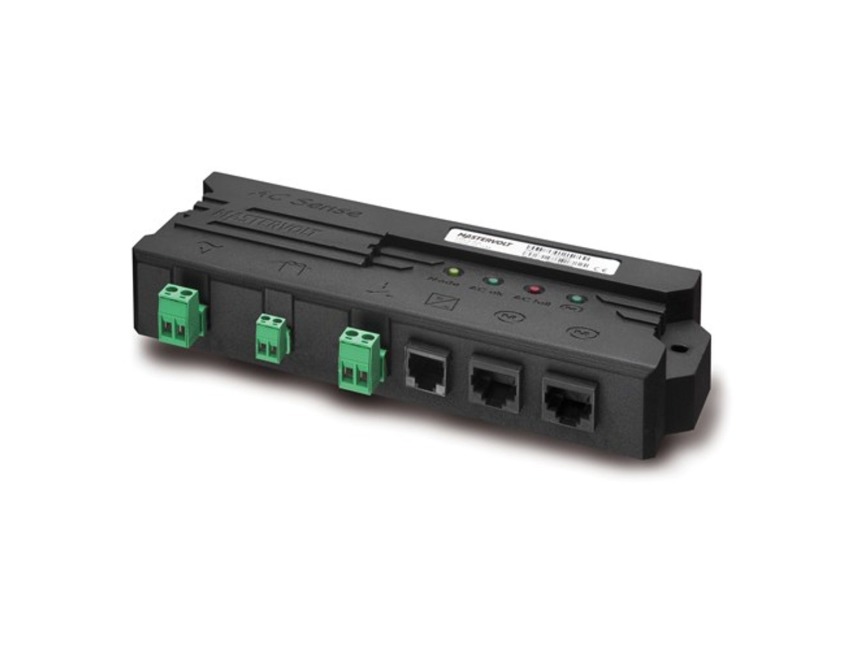

Mastervolt MASTERBUS AC POWER ANALYSER - 77031200
Click to enlarge
Codex
MPN 77031200
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Mastervolt MASTERBUS AC POWER ANALYSER - 77031200
Part No: 77031200
The Mastervolt 77031200 AC power analyser measures current, voltage and power in the electrical system. It can also be used as a MasterBus Interface for Mass Sine power inverters, and offers a free programmable potential free contact which can be used to connects AC power devices, such as generators or isolation transformers, to the MasterBus network.
General specifications
MasterBus powering: yes
Dimensions, hxwxd: 80 × 181 × 28 mm (3.1 × 7.1 × 1.1 inch)
Weight: 0.53 kg (1.2 lb)
Delivered with: MasterBus cable, MasterBus terminator, current transformer 100:5, manual
Technical specifications
Protection degree: IP65
Brand - Mastervolt
Height - 80mm (3.1")
Width - 181mm (7.1")
Depth - 28mm (1.1")
Weight - 0.53 kg (1.2 lb)
Specification List
| Type | Parts |
|---|
