Mastervolt MASS GI 7K VA/32A ISOLATION TRANSFORMER M/BUS - 88000705
Click to enlarge
Codex
MPN 88000705
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

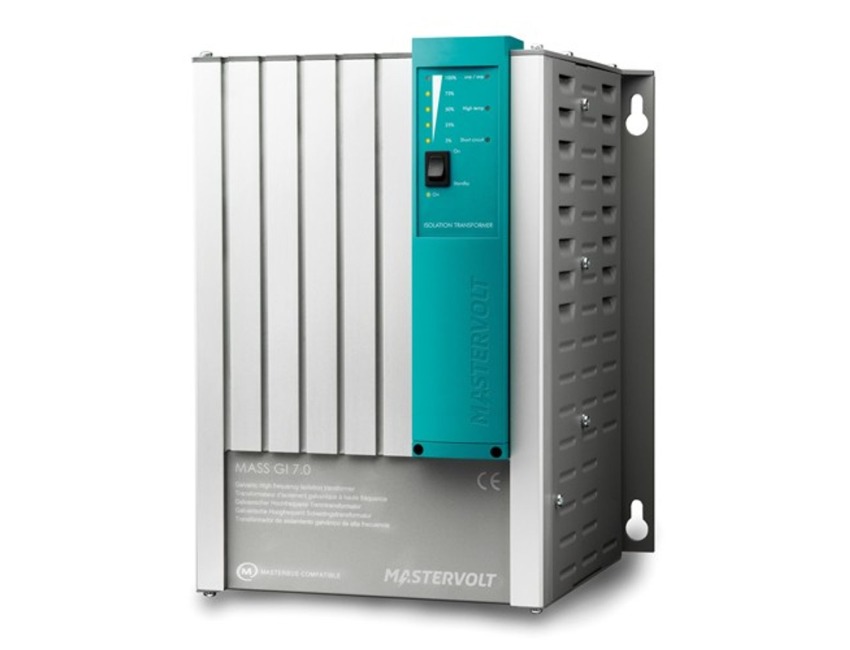

Mastervolt MASS GI 7K VA/32A ISOLATION TRANSFORMER M/BUS - 88000705
Part No: 88000705
Mastervolt Mass GI 7 is a modern day galvanic isolation transformer, featuring high frequency electronic switch technology. It is designed to sit beween shore power and the on board power to prevent electrical corrosion of metal parts that can occur without this protection. The Mass GI isolation transformer is compact and lightweight, and is housed in a robust aluminium casing. It can be installed easily on a wall or floor, and the unit does not vibrate or hum so will not require rubber mountings. It can aslo be controlled remotely via MasterBus.
The Mass GI has a soft start function, which suppresses the inrush current from the transformer to prevent the power fuse blowing. They are also highly efficient, and can be used in parallel to increase the AC power capacity.
General specifications
Output voltage (± 5 ): 90-255 V
Output frequency range: 45-65 Hz
Input voltage range: 90-255 V
Input frequency range: 45-65 Hz
Nominal input current (230 V): 32 A
Galvanic isolation: yes
Efficiency: > 93
Power 230 V (120 V): 7000 VA (3840) VA
Dimensions, hxwxd: 340 × 261 × 250 mm (13.4 × 10.3 × 9.8 inch)
Weight: 10 kg (22.0 lb)
Compliance: CE, ABYC
Technical specifications
Technology: high frequency
Earth leakage protection: no
No-load power consumption: 44 W
Temperature range (ambient temp.): 0 °C to 40 °C, derating power > 40 °C (32 °F to 104 °F)
Cooling: variofan
Switch off at: 80 °C
Protection degree: IP23
Operating humidity: max. 95 %
Switch off behaviour breaker: B-characteristic
Soft start: yes
MasterBus compatible: yes
Brand - Mastervolt
Height - 340mm (13.4")
Width - 261mm (10.3")
Depth - 250mm (9.8")
Weight - 10 kg (22 lb)
Temperature Range - Ambient Temperature: 0 °C to 40 °C, derating power > 40 °C (32 °F to 104 °F)
