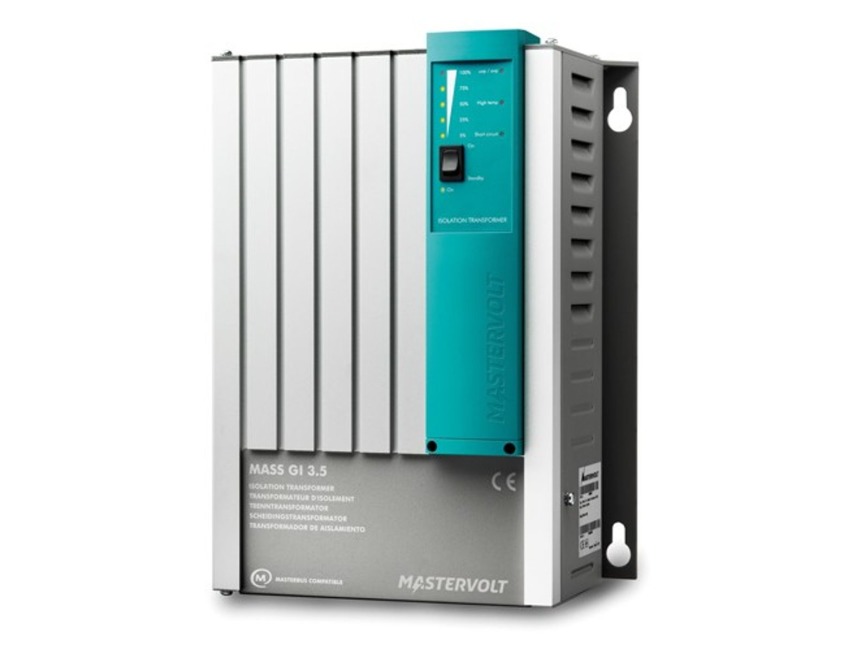

Mastervolt MASS GI 3.5 VA/16A ISOLATION TRANSFORMER M/BUS - 88000355
Part No: 88000355
Mastervolt Mass GI 3.5 is a modern day galvanic isolation transformer, featuring high frequency electronic switch technology. It is designed to sit beween shore power and the on board power to prevent electrical corrosion of metal parts that can occur without this protection. The Mass GI isolation transformer is compact and lightweight, and is housed in a robust aluminium casing. It can be installed easily on a wall or floor, and the unit does not vibrate or hum so will not require rubber mountings. It can aslo be controlled remotely via MasterBus.
The Mass GI has a soft start function, which suppresses the inrush current from the transformer to prevent the power fuse blowing. They are also highly efficient, and can be used in parallel to increase the AC power capacity.
General specifications
Output voltage (± 5 ): 90-255 V
Output frequency range: 45-65 Hz
Input voltage range: 90-255 V
Input frequency range: 45-65 Hz
Nominal input current (230 V): 16 A
Galvanic isolation: yes
Efficiency: > 93
Power 230 V (120 V): 3500 VA (1920) VA
Parallel configuration: to 4 units parallel (= 14 kW)
Dimensions, hxwxd: 340 × 261 × 144 mm (13.4 × 10.3 × 5.7 inch)
Weight: 6 kg (13.2 lb)
Compliance: CE, ABYC
Technical specifications
Technology: high frequency
Earth leakage protection: no
No-load power consumption: 22 W
Temperature range (ambient temp.): 0 °C to 40 °C, derating power > 40 °C (32 °F to 104 °F)
Cooling: variofan
Switch off at: 80 °C
Protection degree: IP23
Operating humidity: max. 95 %
Switch off behaviour breaker: B-characteristic
Soft start: yes
MasterBus compatible: yes
Brand - Mastervolt
Height - 340mm (13.4")
Width - 261mm (10.3")
Depth - 144mm (5.7")
Weight - 6 kg (13.2 lb)
Temperature Range - Ambient Temperature: 0 °C to 40 °C, derating power > 40 °C (32 °F to 104 °F)
