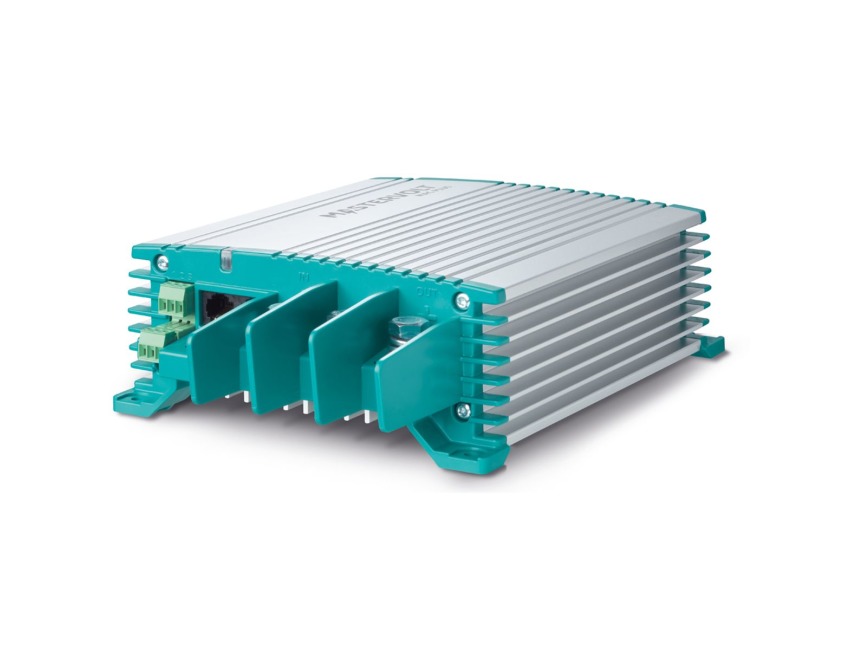

Mastervolt MAC PLUS DC-DC CONVERTER 12/24-30 - 81205300
Click to enlarge
Codex
MPN 81205300
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Mastervolt MAC PLUS DC-DC CONVERTER 12/24-30 - 81205300
Part No: 81205300
The Mastervolt Mac Plus is a DC-DC charger which is designed to provide quick and safe charge to the service battery, providing stabilised voltage to protect the battery and the equipment it powers.
Traditionally, a service battery is linked to the starter battery via a charge relay. The starter battery will be located near to the alternator and receives most of the charge current. However the service battery is usually further away. The long cables used to connect it up cause a voltage drop, leading to slower charging, which can result in failing appliances and premature failure of the battery.
Modern, fuel efficient engines are equipped with smart alternators, following regulations such as Euro 5 and Euro 6. Instead of a constant output, smart alternators provide a variable voltage; after a brief charging period, voltage is reduced and the charging stops. Furthermore, the energy produced by regenerative braking leads to voltage peaks. Service batteries coupled in the traditional way will receive hardly any charge and may be damaged by these peak voltages.
To solve these issues, Mastervolt offers the Mac Plus DC-DC chargers, which monitors the service battery and compensates the voltage loss. It is suitable for flooded, Gel, AGM and Li-Ion batteries (including LiFePO4), and even revives fully depleted batteries. There is no fan so operation of the charger is silent and these units can also be used in parallel to achieve higher charging capacities. The Mac Plus is also MasterBus compatible, so can be monitored and included in an intelligent automated system.
Specifications battery charger
Battery temperature sensor: yes, included
Battery voltage sense: yes
General specifications
Status indicator : yes, 3-color LED
Output voltage: 20-30 V
Nominal output voltage: 24 V
Output voltage stabilisation: 2 at extremes of temps, load and input
Output voltage ripple (peak peak): max. 1
Max. output power: 725 W
Nominal output power: 675 W
Max. output current: 30 A
Output charge current (3-step mode): 30 A
Nominal input voltage: 12 V
Input voltage range: 10-16 V
Max. input current: 50 A
Galvanic isolation: no
Voltage limited: yes
Efficiency: > 95 (at nom. input voltage, full load); peak 97
Parallel configuration: yes
Alarm contact: yes, through MasterBus
MasterBus powering: no
Engine run signal input: yes (active high/active low)
DIP switches: yes, for basic setup
Dimensions, hxwxd: 255 × 165 × 66 mm (10.0 × 6.5 × 2.6 inch)
Weight: 2 kg (4.4 lb)
Compliance: CE, E-Mark, SAE J1171 & ISO 8846 Ignition Protected
Technical specifications
No-load consumption: < 2 mA
Charge characteristic: 3-step+
Battery types: flooded, Gel, AGM, spiral, Lithium Ion, traction, user defined
3-Step charge option: yes (DIP switch settings)
DC consumption: < 5 mA
Connections: 3 x M8 terminal for cable diameters of 10-50 mm², (positive input, positive output, joint negative connection) 6-pole screw connection for cable diameters of 0.75-1.5 mm² (remote on/off, temperature sensor, voltage measurement)
Temperature range (ambient temp.): -25 °C to 60 °C; derating > 40 °C (-13 °F to 140 °F)
Cooling: natural cooling
Protection degree: IP23
Protections: overload, over temperature, DC short circuit, reversed polarity (fuse)
MasterBus compatible: yes
Key Features
Fast and safe charging during short trips.
Fanless design for silent operation.
Suitable for flooded, Gel, AGM and Li-Ion batteries (incl. LiFePO4).
Charges even fully depleted batteries.
Engine run detection protects starter battery.
Adjustable current limits to meet Euro 5/6 requirements.
Voltage stabilisation protects sensitive equipment, lights and loads.
Parallel operation to obtain charging capacities well over 100 Amps.
MasterBus for intelligent system monitoring and automation.
Temperature compensation and voltage sense for an optimal charging result.
E-mark certification for mobile applications.
Power supply mode.
Heavy duty connections for easy installation and quick set up via DIP switches.
Brand - Mastervolt
Voltage - 12V - 24V DC
Height - 255mm (10")
Width - 165mm (6.5")
Depth - 66mm (2.6")
Weight - 2 kg (4.4 lb)
Temperature Range - Ambient Temperature: -25 °C to 60 °C; derating > 40 °C (-13 °F to 140 °F)
Specification List
| Type | DC/DC Converter |
|---|
