Description

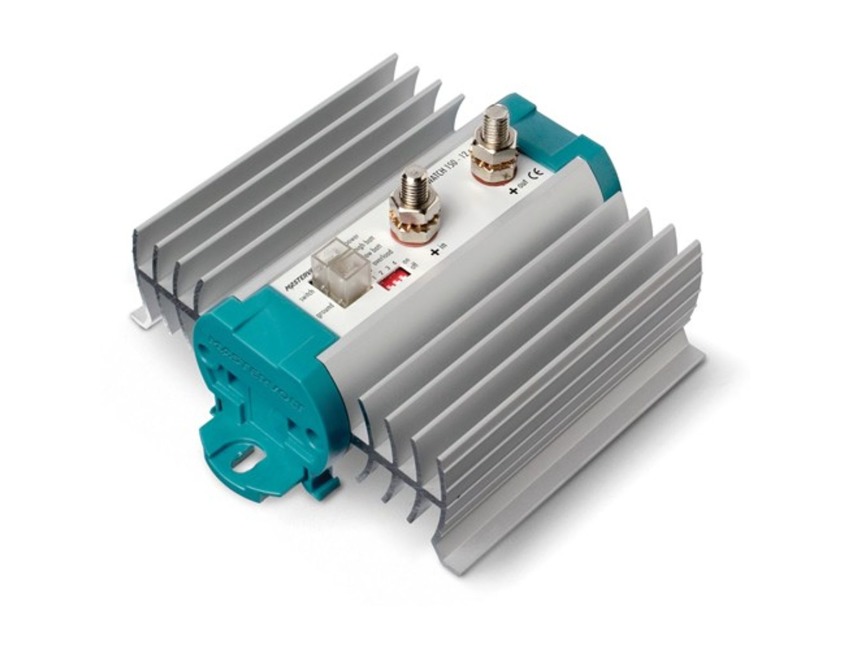

Mastervolt HIGH POWER Battery WATCH / DC MAIN SWITCH FOR 12/24V DC - 83200150
Part No: 83200150
The Battery Watch is an electronic watchdog that ensures a much longer lifespan for your batteries. The unit monitors the optimum condition of your batteries and can also double up as a main battery isolation switch. The Battery Watch features LED lights to provide a clear read out and the undervoltage level can be set using DIP switches.
General specifications
Input voltage range: 8-32 V
Max. DC load: 150 A
Dimensions, hxwxd: 157 × 140 × 80 mm (6.2 × 5.5 × 3.1 inch)
Weight: 0.6 kg (1.3 lb)
Technical specifications
Switch off under voltage 12 V: 9-12 V
Switch off under voltage 24 V: 18-24 V
Brand - Mastervolt
Voltage - 12V / 24V DC
Height - 157mm (6.2")
Width - 140mm (5.5")
Depth - 80mm (3.1")
Weight - 0.6 kg (1.3 lb)
Specification List
| Type | Parts |
|---|
