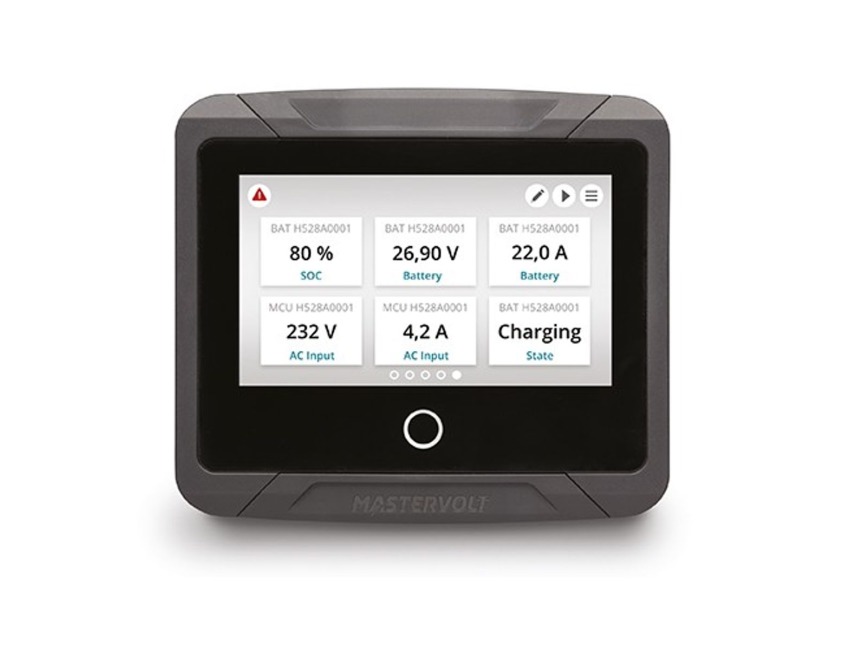

Mastervolt EASYVIEW 5 - TOUCH SCREEN PANEL - 77010310

Click to enlarge

Codex

MPN 77010310

£390.09

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Mastervolt EASYVIEW 5 - TOUCH SCREEN PANEL - 77010310


Part No: 77010310


The Mastervolt EasyView 5 control panel provides information about your electrical system and devices in one clear and easy colour display. It is waterproof and is designed to be clearly readable even in bright daylight, and also features a multi language menu so it is easy to operate. You can customize your favourites pages to show the information you want to keep an eye on. The touch screen system allows you to operate and adjust settings on your integrated Mastervolt devices, which can all be connected up via a MasterBus interface. The panel allows customizable alerts to be set up, which will sound an audible buzzer and display an error on the display.
General specifications
Power supply: MasterBus powered, or 12/24 V input (9 - 32 V)
Resolution: 480 × 272 pixels
Colour depth: 16 bits
Display/read-out: 4.3 inch high contrast display with capacitive touch control
Languages on display: ENG, NL, DE, SP, IT, FRA, FIN, SWE, DEN, NOR
Mounting: panel mounting, flush mounting, MasterView Easy retrofit
Alarms: buzzer integrated
Dimensions, hxwxd: 113 × 127 × 43 mm (4.4 × 5.0 × 1.7 inch)
Weight: 0.315 kg (0.7 lb)
Delivered with: UV protection cover, wall mount casing, MasterBus cable
Technical specifications
MasterBus connection: yes
Power consumption: < 160 mW (idle mode)
Connections: 2x MasterBus, USB, 12/24 V
Temperature range (ambient temp.): -20 °C to 70 °C (-4 °F to 158 °F)
Protection degree: IP67; waterproof front

Brand - Mastervolt
Height - 113mm (4.4")
Width - 127mm (5.0")
Depth - 43mm (1.7")
Weight - 0.315 kg (0.7 lb)
Temperature Range - Ambient Temperature: -20 °C to 70 °C (-4 °F to 158 °F)

Specification List

Type Parts
