Mastervolt EASYCHARGE FIXED Battery Charger 6A 12V - 43310602
Click to enlarge
Codex
MPN 43310602
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

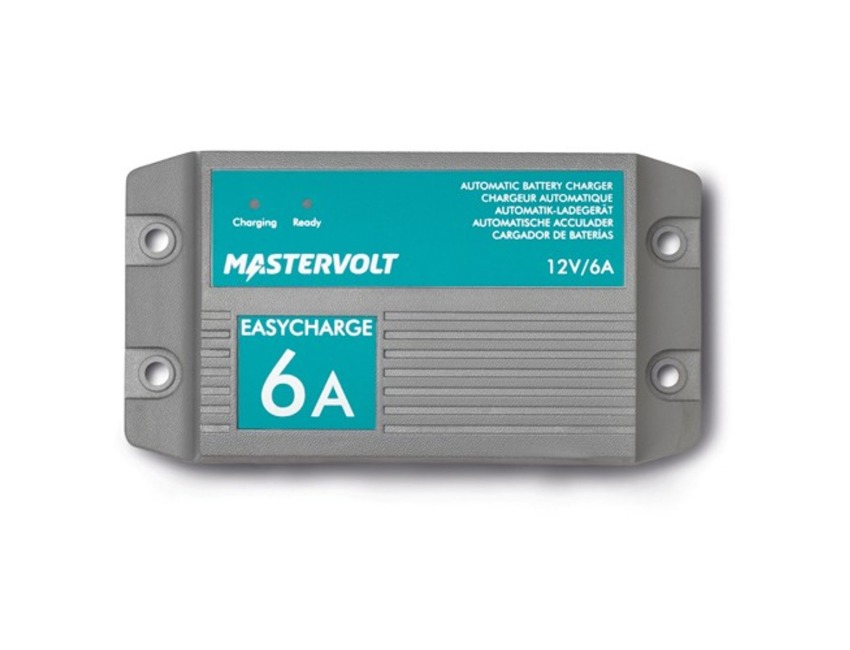

Mastervolt EASYCHARGE FIXED Battery Charger 6A 12V - 43310602
Part No: 43310602
The Mastervolt EasyCharge 43310602 is a fixed battery charger designed to be highly efficient and simple to use, accepting a wide range of voltage inputs to be suitable for round the world use. It is built to IP68 waterproofing standards, and is fully salt, shock and vibration tested. The charger is fully sealed in an epoxy-filled, non corrosive enclosure and the output is completely isolated. The charger can be used in series or parallel connections to provide higher voltage or current, and can charge wet, AGM and gel batteries.
General Specifications
Total charge current: 6 A at 12 V
Recommended battery capacity: charge (based on 50 % discharged battery): to 120 Ah
Nominal input voltage: 120/230 V (90-265 V), 50/60 Hz
AC connection: 1.2 m (4 ft) cable + UK plug
DC connection: ring terminals
Dimensions, hxwxd: 76 × 152 × 51mm (3 × 6 x 2 inch)
Weight: 1.8 kg (4 lb)
Approvals: CE, ABYC
Technical Specifications
Charge characteristic: IUoUo, automatic 3-step+ for Gel/AGM/flooded
Temperature range (ambient temp.): -20 °C to 50 °C (-4 °F to 122 °F)
Protection degree: IP68
Protections: spark free, short circuit, reverse polarity, over-voltage, current limited, over-temperature
MasterBus compatible: no
Key Features
Entry level model with Mastervolt 3-step+ charge characteristic
Suitable for charging Gel, AGM and flooded batteries
Full power up to 40 °C
Quick charging function to extend battery life
Includes cable & Euro plug
Can charge one battery bank
Series and parallel configuration
Stain resistant and waterproof
International certification
Brand - Mastervolt
Voltage - 12V DC
Amps - 6A
Height - 76mm (3")
Width - 152mm (6")
Depth - 51mm (2")
Weight - 1.8 kg (4.0 lb)
Temperature Range - Ambient Temperature: -20 °C to 50 °C (-4 °F to 122 °F)
Specification List
| Type | Battery Charger |
|---|
