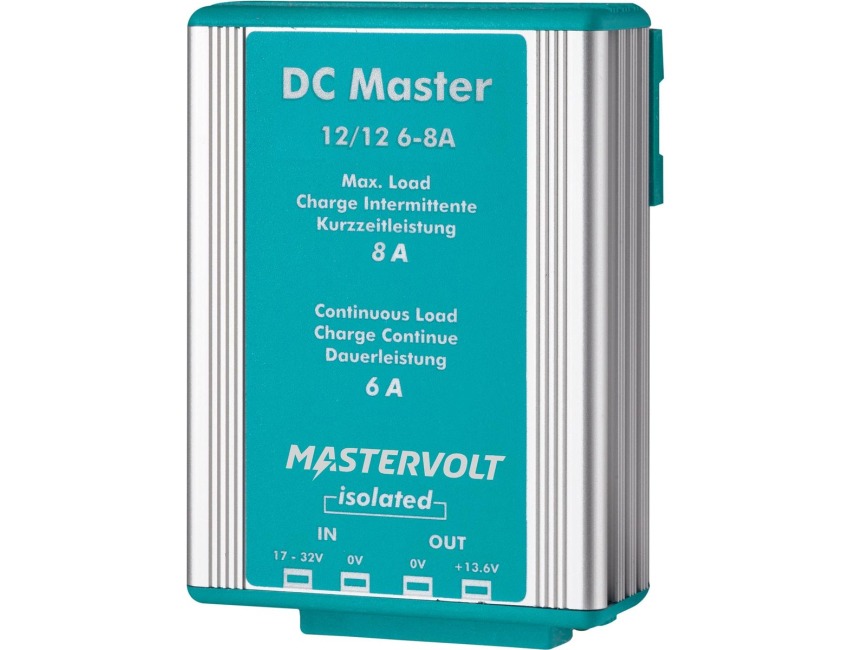

Mastervolt DC MASTER DC/DC CONVERTER 12/12-6 ISOLATED - 81500700
Part No: 81500700
The Mastervolt DC Master is a DC-DC charger which is designed to provide quick and safe charge to the service battery, providing stabilised voltage to protect the battery and the equipment it powers. This is an isolated model which has galvanic protection between the input and the output, as well as interference supression for sensitive equipment.
Traditionally, a service battery is linked to the starter battery via a charge relay. The starter battery will be located near to the alternator and receives most of the charge current. However the service battery is usually further away. The long cables used to connect it up cause a voltage drop, leading to slower charging, which can result in failing appliances and premature failure of the battery.
Modern, fuel efficient engines are equipped with smart alternators, following regulations such as Euro 5 and Euro 6. Instead of a constant output, smart alternators provide a variable voltage; after a brief charging period, voltage is reduced and the charging stops. Furthermore, the energy produced by regenerative braking leads to voltage peaks. Service batteries coupled in the traditional way will receive hardly any charge and may be damaged by these peak voltages.
To solve these issues, Mastervolt offers the DC Master chargers, which monitors the service battery and compensates the voltage loss. There is no fan so operation of the charger is silent and these units also have 2 minutes of extra capacity, perfect for if you need a quick power boost. The DC Master unit is supplied complete with mounting bracket, screws and fasteners.
General specifications
Nominal output voltage: 13.6 V
Max. output power: 108 W
Nominal output power: 82 W
Max. output current (for 2 min. intervals): 8 A
Continuous output current: 6 A
Nominal input voltage: 12 V
Input voltage range (max.): 10-15.5 V DC (16 V)
Galvanic isolation: yes
Stabilised: yes
Dimensions: Height 127mm x Width 87mm x Depth 50mm (5.0" × 3.4" × 2.0")
Weight: 0.44 kg (1.0 lb)
Compliance: CE, E-mark
Technical specifications
DC consumption: 15 mA
Connections: fast-on
Temperature range (ambient temp.): -25 °C to 80 °C, derating > 30 °C (-13 °F to 176 °F)
Cooling: natural cooling
Protection degree: IP53
Brand - Mastervolt
Voltage - 12V DC
Height - 127mm (5")
Width - 87mm (3.4")
Depth - 50mm (2")
Weight - 0.44 kg (1 lb)
Temperature Range - Ambient Temperature: -25 °C to 80 °C, derating > 30 °C (-13 °F to 176 °F)
Specification List
| Type | DC/DC Converter |
|---|
