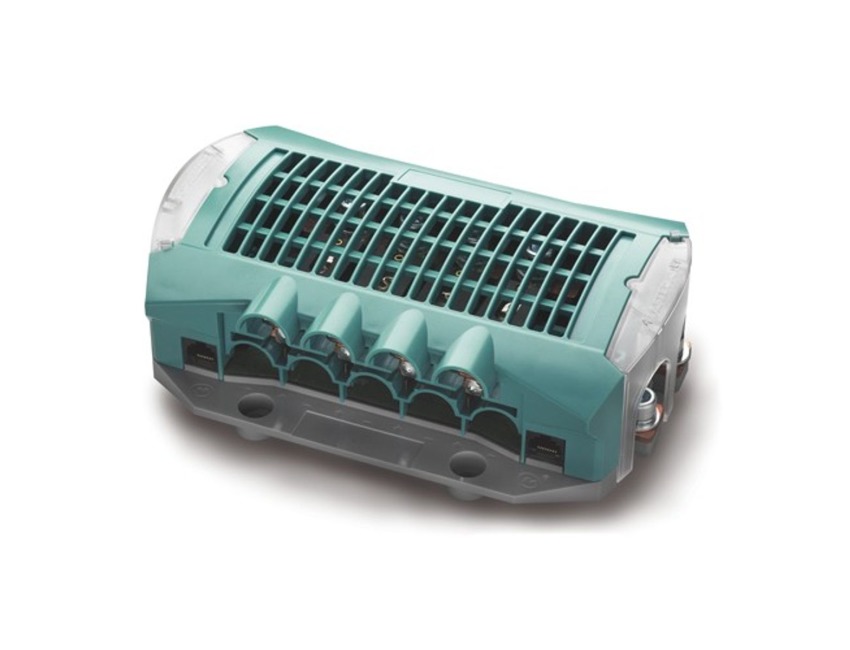

Mastervolt DC DISTRIBUTION 500 (incl 4 ANL FUSES) - 77020200

Click to enlarge

Codex

MPN 77020200

£399.97

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Mastervolt DC DISTRIBUTION 500 (incl 4 ANL FUSES) - 77020200


Part No: 77020200


The DC Distribution 500 can connect up to four DC devices, such as battery chargers, inverters, alternators and solar panels. The distributor includes a plug & play cable so it can be easily connected in to a MasterBus network. When connected to MasterBus, the EasyView panel gives all the fuses logical names, for instance, referring to the connected equipment, to ensure you receive understandable error notifications (for example: battery charger fuse defect). The DS Distribution comes with four ANL fuses, 2 × 80A, 1 × 125A and 1 × 160A, as well as a spare 125A fuse.
General specifications
MasterBus powering: no
Languages on display: ENG, NL, DE, SP, IT, FRA, FIN, SWE, DEN, NOR
Battery voltage: 12, 24 or 48 V DC
Current: 300 A cont. / 500 A for 5 minutes
Standard fuses: 80 A (2x), 160 A and 125 A - ANL type (deviating values can be ordered separately
Spare fuse: 125 A - ANL type
Alarms: fuse monitoring
Dimensions, hxwxd: 150 × 216 × 65 mm (5.9 × 8.5 × 2.6 inch)
Weight: 1.2 kg (2.6 lb)
Delivered with: four standard fuses and one spare fuse, hex tool, MasterBus terminator, MasterBus cable, cable protections for DC connections
Technical specifications
Protection degree: IP21

Brand - Mastervolt
Height - 150mm (5.9")
Width - 216mm (8.5")
Depth - 65mm (2.6")
Weight - 1.2 kg (2.6 lb)
