Description

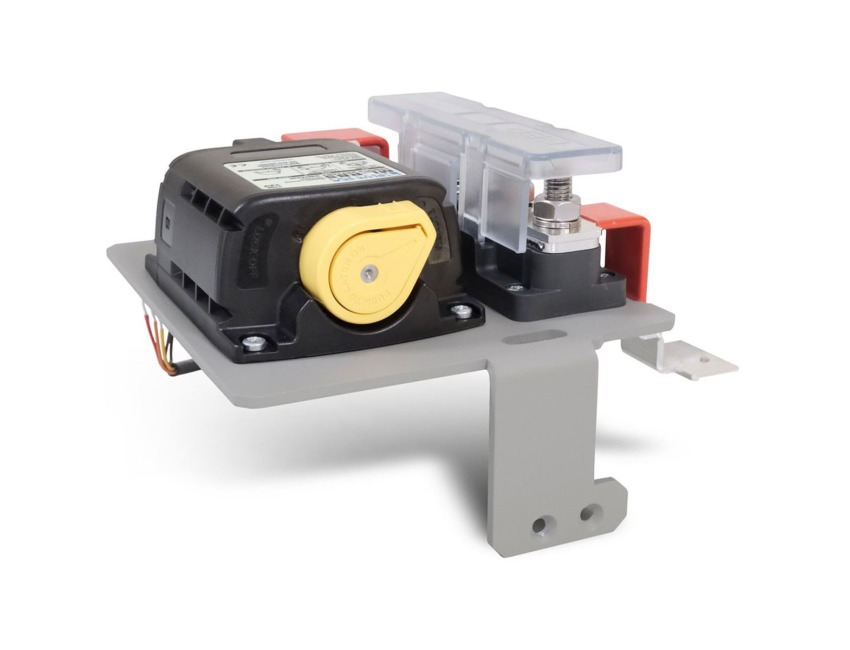

Mastervolt Connection Kit c/w Relay & Fuse Block for 24V MLI-Ultra - 79007724
Part No: 79007724
The Mastervolt 79007724 battery connection kit provides all the required safety accessories in one simple to install compact construction, which is designed to sit on top of the MLI Ultra lithium ion batteries. The kit contains a safety relay, two bus bar conductors and a T-fuse holder, however the fuse is not supplied with the kit as you should order the appropriate rating for your requirements.
General specifications
Compatibility: MLI Ultra 24/5500
Max. current: 300 A
Operating temperature: -25 °C to 50 °C (-13 °F to 122 °F)
Dimensions: total height increases by 65 mm / 2.5 inch
Weight: total weight increases by 2 kg
Delivered with: mounting bracket, safety relay, T-fuse holder, busbar conductor (2x)
Technical specifications
Safety relay: 24 V DC - 500 A
Max. voltage: 64 V
Key Features
Fast and easy installation
All necessary safety accessories in one kit*
Pre-assembled on an easy to mount bracket
Perfect fit for MLI Ultra 24/5500
Brand - Mastervolt
Voltage - 24V DC
Temperature Range - -25 °C to 50 °C (-13 °F to 122 °F)
Specification List
| Type | Parts |
|---|
