Mastervolt Connection Kit c/w Relay & Fuse Block for 12V MLI-Ultra - 79007712
Click to enlarge
Codex
MPN 79007712
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Mastervolt Connection Kit c/w Relay & Fuse Block for 12V MLI-Ultra - 79007712
Part No: 79007712

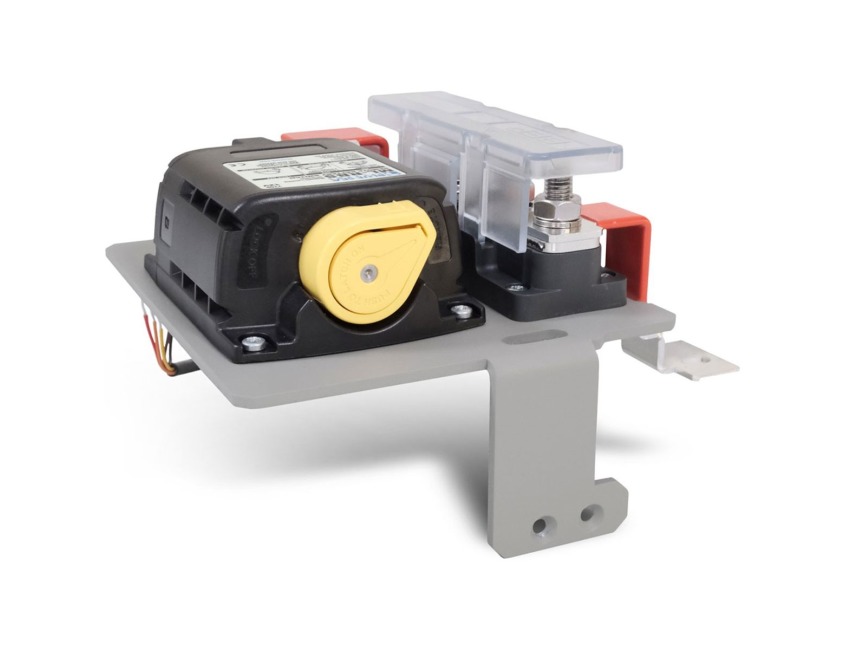

The Mastervolt 79007712 battery connection kit provides all the required safety accessories in one simple to install compact construction, which is designed to sit on top of the MLI Ultra lithium ion batteries. The kit contains a safety relay, two bus bar conductors and a T-fuse holder, however the fuse is not supplied with the kit as you should order the appropriate rating for your requirements.
General specifications
Compatibility: MLI Ultra 12/2750, MLI Ultra 12/5500
Max. current: 300 A
Operating temperature: -25 °C to 50 °C (-13 °F to 122 °F)
Dimensions: total height increases by 65 mm / 2.5 inch
Weight: total weight increases by 2 kg
Delivered with: mounting bracket, safety relay, T-fuse holder, busbar conductor (2x)
Technical specifications
Safety relay: 12 V DC - 500 A
Max. voltage: 64 V
Key Features
Fast and easy installation
All necessary safety accessories in one kit*
Pre-assembled on an easy to mount bracket
Perfect fit for MLI Ultra 12/2750 and 12/5500
Brand - Mastervolt
Voltage - 12V DC
Amps - 300A
Temperature Range - -25 °C to 50 °C (-13 °F to 122 °F)
Specification List
| Type | Parts |
|---|
