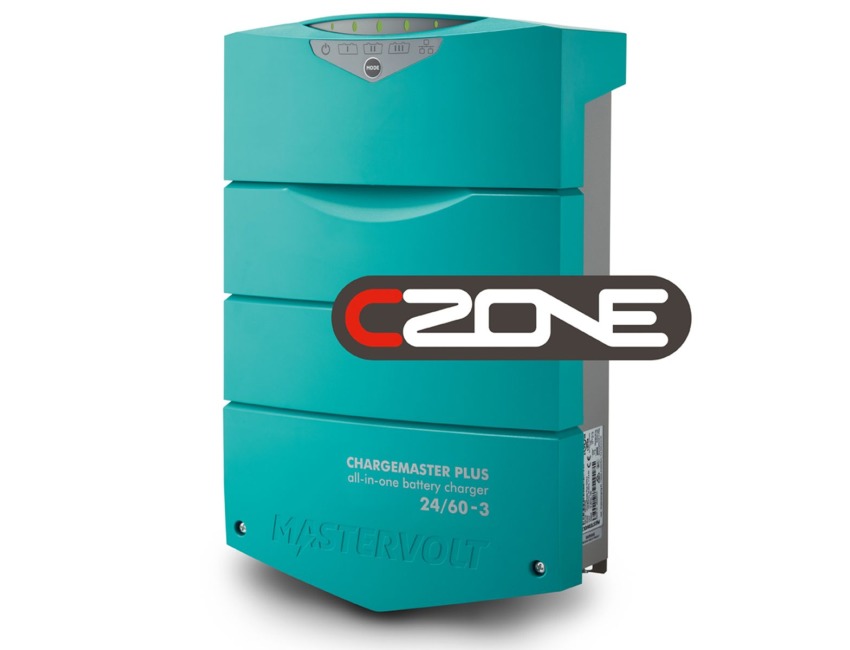

Mastervolt ChargeMaster PLUS 24/60-3 Battery Charger 120/230V CZONE - 44320605
Click to enlarge
Codex
MPN 44320605
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Mastervolt CHARGEMASTER PLUS 24/60-3 Battery Charger 120/230V CZONE - 44320605
Part No: 44320605
The Mastervolt ChargeMaster Plus battery charger is designed to help batteries perform better and last longer, providing fast and complete charging wherever you are. It also performs the job of a battery isolator, prioritising charge to the battery that needs it most. The energy from the alternator is fed through to the batteries with the integrated VSR, meaning all your charging needs are provided by the ChargeMaster Plus. The charger is compact and the robust connections are ergonomic, making the unit very quick and easy to install.
The 3-STEP+ charging memory ensures more power and a longer life for your batteries, and will even charge depleted batteries. The ChargeMaster is suitable for all types of battery, and also has a wide input voltage range, which ensures perfect automatic operation anywhere in the world. The 24 Volt model can also provide charge to a 12 Volt battery, for example a starter battery, without additional components.
ChargeMaster Plus is MasterBus compatible, meaning they can be connected easily to a MasterBus system where you can operate and monitor all Mastervolt devices in one panel. In addition, they can also be linked via CZone and NMEA 2000 integrations without additional equipment, meaning it can link up with displays, shunts and power systems. Other communication standards like ModBus, CANopen, LinBus, etc. are supported via additional interfaces.
Communication & monitoring
Communication interfaces: MasterBus, CZone, NMEA
General specifications
Nominal output voltage : 24 V
Max. output current primary output: 60 A
Smart In-/Output voltage: 12 or 24 V
Smart In-/Output current: 5-10 A at 12 V; 5-20 A at 24 V (adjustable)
Smart In-/Output input current: max. 20 A at 24 V
Total charge current: 60 A at 28.8 V
Max. AC current (230 V / 120 V): 10.2 A / 20.4 A
Number of battery outlets: 3 (max.)
Battery bank size: 200-500 Ah
Nominal input voltage: 120/230 V (80-275 V) 50/60 Hz
AC connection: screw terminals, suitable up to up to 6mm²
Power supply mode: yes
Galvanisedanic isolation: yes
Display/read-out: LED display
Dimensions, hxwxd: 384 × 250 × 127mm (15.1 × 9.8 × 5.0 inch)
Weight: 5.9 kg (13.0 lb)
Compliance: CE, ABYC, UL1236, SAE J1171, ISO 8846, CEC/DOE, RCM/C-Tick, RMRS, RRR
Technical specifications
Charge characteristic: IUoUo, automatic / 3-step+ for Gel/AGM/flooded/Lithium Ion + user defined option
Temperature compensation: -60 mV/°C / -76 mV/°F; temperature sensor included
DC voltage compensation: through automatic compensation or MasterShunt
Power consumption (DC side): < 2 mA (MasterBus off)
Current Control function: yes, through MasterBus or CZone
Power factor control: > 0.98
Temperature range (ambient temp.): -25 °C to 80 °C, derating < 0 °C and > 40 °C (-13 °F to 176 °F)
Cooling: vario fan
Protection degree: IP23, vertical mounting
Protections: over-temperature, overload, short circuit, high/low battery voltage, ignition protection
MasterBus compatible: yes
Charger Status Interface (alarm contact): yes, using a Multipurpose Contact Output (code M77030500)
Key Features
Multicharger with two outputs, one in/output, DC-DC converter, current limiter and VSR.
Combine Lithium Ion, Gel or AGM, and large or small battery banks on a single battery charger.
Charges multiple batteries while being underway.
Extended specifications: offers 20 more output at 14.4 V and 80 charging power at 60 °C.
Safe Charge: quickly recognize the State of Charge for extended battery life.
Very wide operating range of 80-275 V AC, 35-70 Hz.
Compact, easy to connect and quick to install.
Revival mode: automatically revives even fully depleted batteries.
Multi voltage: charge 12 V starter battery in a 24 V system, without additional components.
Priority Charge: redirect available power to the lowest battery, for faster charging.
Smart Input: charge all three batteries from one single alternator for continuous charging on the go.
Brand - Mastervolt
Voltage - 24V DC
Amps - 60A
Height - 384mm (15.1")
Width - 250mm (9.8")
Depth - 127mm (5.0")
Weight - 5.9 kg (13.0 lb)
Temperature Range - Ambient Temperature: -25 °C to 80 °C, derating < 0 °C and > 40 °C (-13 °F to 176 °F)
Specification List
| Type | Battery Charger |
|---|
