Description

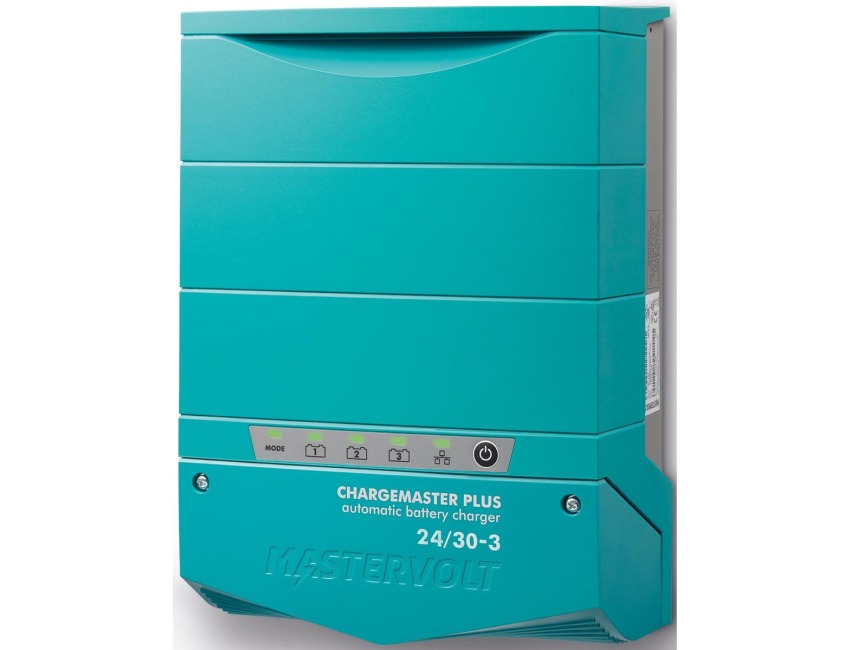

Mastervolt ChargeMaster Plus 24/30-3 - 44320305
Part No: 44320305
The Mastervolt ChargeMaster Plus battery charger is designed to provide both efficient and reliable performance in all conditions. This generation of battery charger offers multiple functions in one compact device. The ChargeMaster Plus reduces costs and simplifying the system and eliminating the need for additional battery chargers.
The 'Battery's Best Friend' architecture enables the ChargeMaster Plus to charge any battery chemistry using the fast and safe 3-step+ charging method. Different battery sizes can be combined, as the pre-float functionality eliminates the risk of overcharging smaller batteries. The charging profile of the Lithium Ion battery is included, as well as flexibility for a customised, user-defined profile.
Mastervolt 44320305 battery charger is the all-in-one solution for faster and safer charging
Global charging
The ChargeMaster Plus charges almost any combination of two or three batteries quickly and safely and can handle all possible mains voltages and frequencies worldwide.
Plug-and-play battery charger
The new ChargeMaster Plus models can achieve full functionality within a complete MasterBus or CZone system, or can also be used as a convenient plug-and-play standalone battery charger
Optimal performance
The new ChargeMaster Plus can communicate directly with Mastervolt Lithium Ion batteries, MasterShunt or system display for real-time adjustments and optimal performance.
The battery charger can withstand high temperatures and significant voltage fluctuations. That makes this battery charger very suitable for the most harsh, marine, or mobile environments.
Communication interfaces: MasterBus, CZone & NMEA2000
General specifications:
Nominal output voltage: 24V
Max. output current primary output: 30A
Total charge current: 30A at 28.5V
Max. AC current (230V / 120V): 4.2A / 8.6A
Number of battery outlets: 3 (max.)
Battery bank size: 120Ah - 240Ah
Nominal input voltage: 120/240V (80-275V) 50/60 Hz
Galvanic isolation: yes
Display/read-out: LED display
Technical specifications:
Charge characteristic: IUoUo, automatic / 3-step+ for Gel/AGM/flooded/Lithium Ion + user defined option
Temperature compensation: -60 mV/°C / -76 mV/°F; including temperature sensor
DC voltage compensation: Yes, via automatic compensation or MasterShunt
Power consumption (DC side): < 2 mA (MasterBus off)
Current Control function: yes, through MasterBus or CZone
Power factor control: >0.98
Temperature range (ambient temp.): -25°C to 70°C, derating >40°C, 80% power at 60°C (-13°F to 32°F)
Cooling: vario fan
Protection degree: IP23, vertical mounting
Protections: over-temperature, overload, short circuit, high/low battery voltage, ignition protection
Charger Status Interface (alarm contact): yes, using a Multipurpose Contact Output (77030500)
Key Features
Improved cooling technology for very low noise levels across the entire power range.
Use as a standalone charger or as part of a complete system.
Automatic power distribution, maximum charging current possible on each output.
All 3 outputs can provide maximum current - total charging current not to exceed the model's maximum.
Pre-float eliminates the risk of overcharging.
Automatic current distribution - charging current distribution based on the condition of the battery.
Compatible with worldwide frequencies & mains voltages.
Smaller & lighter than the previous model.
Frequency - 120/240V (80-275V) 50/60 Hz
Replaces - Mastervolt 44020300
Brand - Mastervolt
Voltage - 24V DC
Amps - 30A
Approvals - CE, ABYC, UL 1236, cULus, SAE J1171, CEC/DOE, ISO 8846 & ACMA certifications
Height - 291mm (11.5")
Width - 210mm (8.3")
Depth - 105mm (4.1")
Weight - 2.5 kg (5.5 lb)
Temperature Range - Ambient Temperature: -25°C to 60°C, derating <0°C and >40°C (-13°F to 140°F)
