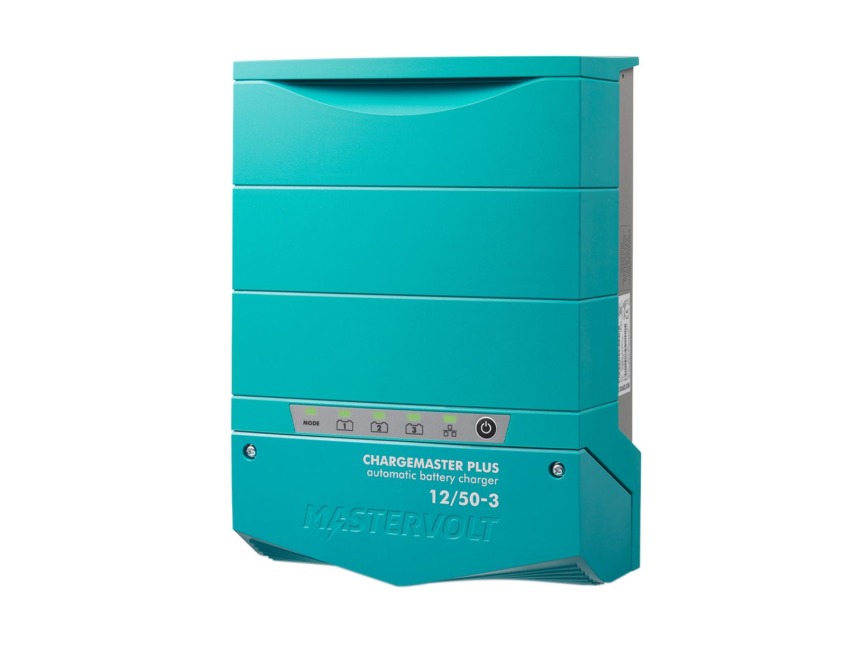

Mastervolt ChargeMaster Plus 12/50-3 Battery Charger - 44310505
Click to enlarge
Codex
MPN 44310505
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Mastervolt ChargeMaster Plus 12/50-3 Battery Charger - 44310505
Part No: 44310505
The ChargeMaster Plus 12/50-3 from Mastervolt guarantees fast and complete charging of batteries anywhere in the world.
This charger can charge any battery chemistry using the fast and safe 3-step+ charging. Different battery sizes can be combined, as the pre-float functionality eliminates the risk of overcharging smaller batteries. The charging profile of the Lithium Ion battery is included, as well as flexibility for a customised, user-defined profile.
• Global charging: The ChargeMaster Plus charges almost any combination of two or three batteries quickly and safely and can handle all possible mains voltages and frequencies worldwide
• Plug-and-play battery charger: This model can achieve full functionality within a complete MasterBus or CZone system, or can also be used as a convenient plug-and-play standalone battery charger
• Optimal performance: The ChargeMaster Plus can communicate directly with Mastervolt Lithium Ion batteries, MasterShunt or system display for real-time adjustments and optimal performance
This battery charger can withstand high temperatures and significant voltage fluctuations, making it suitable for the most harsh, maritime, or mobile environments. In addition, the ChargeMaster Plus has CE, ABYC, UL, cULus, SAE, CEC/DOE, ISO and ACMA certifications.
- Nominal output voltage: 12V
- Max. output current primary output: 50A
- Total charge current: 50A at 14.25V
- Max. AC current (230V / 120V): 3.5A / 7.1A
- Number of battery outlets: 3 (max.)
- Battery bank size: 200-400 Ah
- Nominal input voltage: 120/240 V (80-275 V) 50/60 Hz
- Power supply mode: yes
- Galvanic isolation: yes
- Display/read-out: LED display
- Compliance: CE, CEC, DOE, ABYC, UL1236, cULus, SAE J1171, ISO 8846, ACMA
Key Features
Improved cooling technology results in very low noise levels
Use as a standalone charger or as part of a complete system
Automatic power distribution, maximum charging current possible on each output
Pre-float eliminates the risk of overcharging
Compatible with worldwide frequencies and mains voltages
Smaller and lighter than previous models
Brand - Mastervolt
Voltage - 12V DC
Approvals - CE, CEC, DOE, ABYC, UL1236, cULus, SAE J1171, ISO 8846, ACMA
Height - 291mm (11.5")
Width - 210mm (8.3")
Depth - 105mm (4.1")
Weight - 2.5kg (5.5 lb)
Operating Temperature - -25 °C to 70°C, derating > 40 °C
Size - Battery bank size: 200-400 Ah
Specification List
| Type | Battery Charger |
|---|
