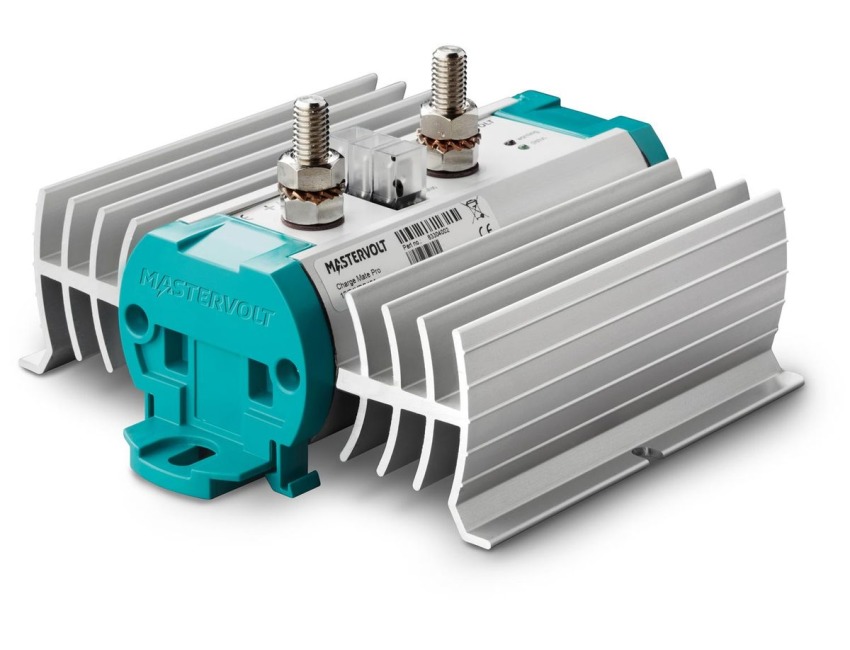

Mastervolt CHARGE MATE PRO 40 - 83304002
Click to enlarge
Codex
MPN 83304002
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Mastervolt CHARGE MATE PRO 40 - 83304002
Part No: 83304002
Mastervolt Charge Mate Pro 40 split charge relay 83304002 is a current limited electronic charge relay with high efficiency and reverse current protection. The Pro40 split charger is suitable for leisure and professional marine and mobile applications. It is an effective solution for high power demand on board and for the need of prioritised charging or current-limited charging.
A secondary battery on board requires a dedicated charging solution. The Charge Mate Pro makes it possible to distribute the charger or alternator current effectively between two battery banks such as a starter and a service battery. The Mastervolt charging relay connects both batteries during charging and keeps them isolated when discharging, significantly reducing the risk of a flat starter battery.
The Charge Mate Pro offers an additional advantage over mechanical charge relays, by limiting the charge current to the second battery. Like a starter battery, the primary battery will be charged with priority. The return current is automatically blocked even when the secondary battery has a higher voltage. An emergency start function is possible by connecting an optional bypass switch to the Charge Master Pro.
A marine application example is the connection of a bow thruster battery to a service battery. The Charge Mate Pro ensures that the service battery is always charged with priority. The blocking of the return current from the bow thruster battery guarantees that the bow battery remains charged while the current limiting also prevents power dips of the onboard electrical network.
General specifications
Monitoring: LED (warnings and status indication)
Output current: limited to 40 A
Number of battery outlets: 2
Input voltage range: 9-32 V
Parallel configuration: yes
Battery voltage: automatic 12/24 V detection
Remote switch functions: on, off, auto, start assist
Dimensions, hxwxd: 157 × 140 × 80 mm (6.2 × 5.5 × 3.1 inch)
Weight: 0.88 kg (1.9 lb)
Compliance: CE
Technical specifications
Connection possibilities: 3 x fast-on connectors (switch, ground and status) • switch: for an optional single pole ON-OFF-ON switch for remote operation • status: for an optional LED indicator
Power consumption: switch open: < 1 mA at 12/24 V DC
Battery types: all types (Lithium Ion protection via Multi purpose contact, product code 77030500)
Switch on voltage: 13.5 V (12 V) / 27 V (24 V)
Switch on delay: 5 sec
Switch off voltage: 12.75 V (12 V) / 25.5 V (24 V)
Switch off delay: 2.5 sec
Relay: electronically (mosfets with low voltage drop of max 0.2 V)
Temperature range (ambient temp.): -40 °C to 60 °C (-40 °F to 140 °F)
Protection degree: IP65
Key Features
Electronic charge coupling with very low voltage drop
Effective dual charging
For all batteries, incl. Lithium Ion
Charge current secondary battery limited to 40A
High system reliability with main battery charge priority
Unidirectional - blocks return current
Prevents onboard electrical power dips
For all kinds of chargers & alternators
Monitoring with LED status indication
IP65 electronics in corrosion-resistant case with aluminium heat sinks
Fast & easy installation
Material - Aluminium Heat Sinks
Number of Battery Banks - 2
Brand - Mastervolt
Voltage - Input Range: 9V-32V, Switch On at: 13.5V (12V) / 27V (24V), Switch Off at: 12.75V (12V) / 25.5V (24V)
Amps - Output: limited to 40A
Approvals - CE, 2014/30/EU (EMC Directive), 2011/65/EU (RoHS directive), EN 61000-6-3: 2007 A1:2011, AC:2012 & EN 61000-6-2: 2005 AC:2005
Height - 157mm (6.2")
Width - 140mm (5.5")
Depth - 80mm (3.1")
Weight - 0.88 kg (1.9 lb)
Consumption - Switch Open: <1mA at 12V & 24V DC
Temperature Range - Ambient Temperature: -40 °C to 60 °C (-40 °F to 140 °F)
