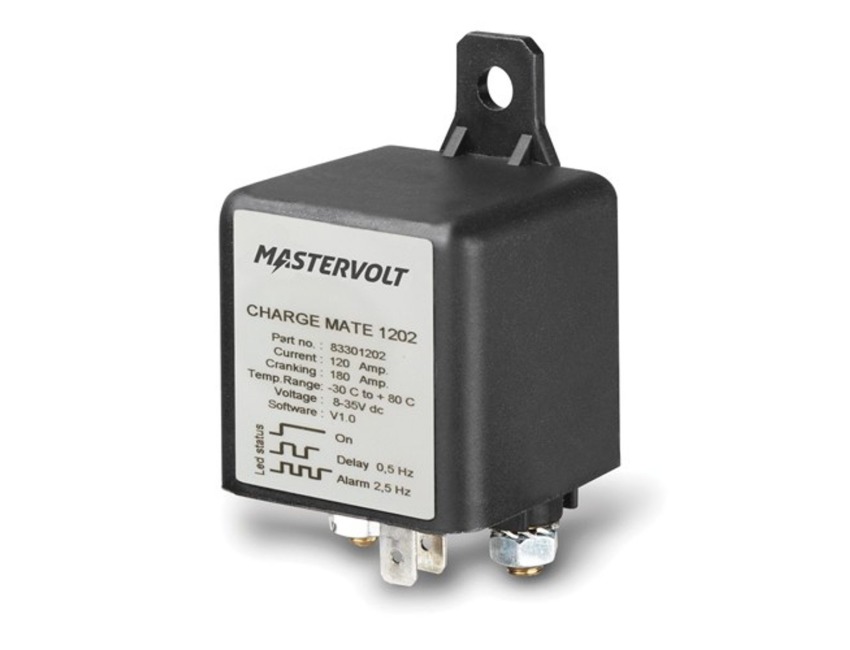

Mastervolt CHARGE MATE 1202 - 83301202
Click to enlarge
Codex
MPN 83301202
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Mastervolt CHARGE MATE 1202 - 83301202
Part No: 83301202
The Mastervolt Charge Mate is a relay based switch that combined 2 batteries during charging, but isolates them when they are discharging, enabling the second battery to be charged regularly.
General specifications
Battery voltage: 12/24 V
Max. current: 120 A
Dimensions, hxwxd: 76 × 46 × 46 mm (3.0 × 1.8 × 1.8 inch)
Weight: 0.125 kg (0.3 lb)
Compliance: CE
Technical specifications
Power consumption: switch open: < 1 mA at 12/24 V DC
Inrush current (250 ms): 2000 A
Switch on voltage: 13-15 V (12 V) / 26-30 V (24 V)
Switch on delay: 5 sec
Switch off voltage: < 12.75 V (12 V) / < 25.5 V (24 V)
Switch off delay: no
Relay: electro-mechanical
Temperature range (ambient temp.): -40 °C to 65 °C (-40 °F to 149 °F)
Protection degree: IP21
Brand - Mastervolt
Height - 76mm (3")
Width - 46mm (1.8")
Depth - 46mm (1.8")
Weight - 0.125 kg (0.3 lb)
Temperature Range - Ambient Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
Specification List
| Type | Parts |
|---|
