Mastervolt BATTMAN PRO Battery MONITOR 12/24V C/W SHUNT - 70405070
Click to enlarge
Codex
MPN 70405070
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

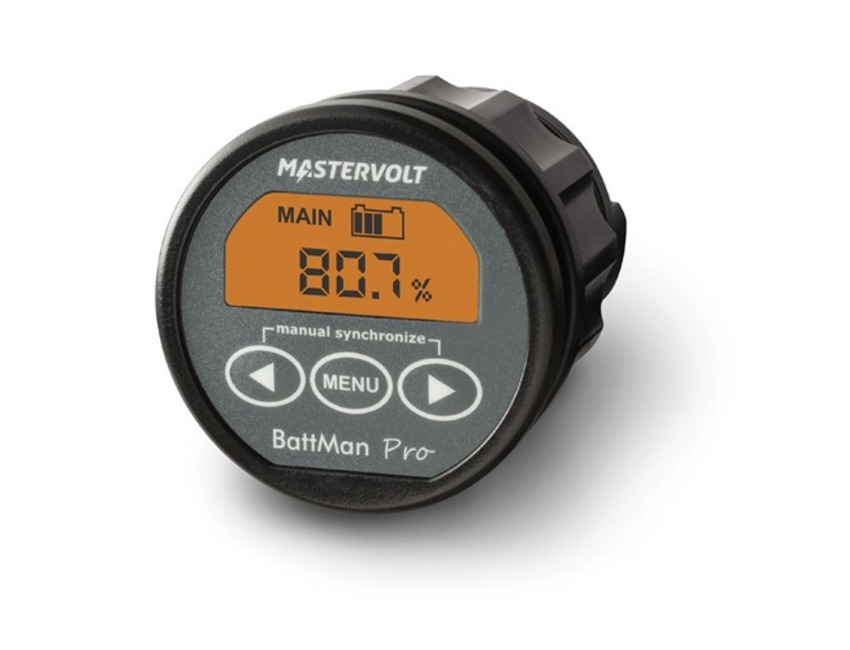

Mastervolt BATTMAN PRO Battery MONITOR 12/24V C/W SHUNT - 70405070
Part No: 70405070
The Masterlink Batman Pro battery monitor provides an accurate indication of the voltage, current, amp-hours and remaining battery capacity displayed as a percentage and as an estimated time. The battery monitor has a built-in microprocessor which calculates the remaining capacity and stores historic data.
General specifications
Number of battery outlets: 2; service (fully), starter (voltage)
Display/read-out: voltage, current, amp-hours, time remaining, battery capacity in , special battery status events
Languages on display: universal
Built-in depth: 72.5 mm (2.9 inch)
Dimensions: Ø 64 mm, depth 79 mm
Dimensions shunt, hxwxd: 87 × 45 × 35 mm (3.4 × 1.8 × 1.4 inch)
Weight: 0.15 kg (0.3 lb)
Technical specifications
Max. Ah capacity: 9999 Ah
Supply voltage: 9-35 V
Voltage range: 0-35 V
Current consumption (backlight off): 8 mA/12 V, 6 mA/24 V
Current consumption (backlight on): 30 mA/12 V, 18 mA/24 V
Voltage resolution: 0.01 V
Voltage accuracy: ± 0.3
Shunt specification: 500 A / 50 mV (service set)
Current measurement range: 0-500 A
Current accuracy: ± 0.4 %
Battery alarm contact: yes, potential free
Remaining time indication: yes
Historical data: yes
MasterBus compatible: no
Connection cable (6-wire) necessary: yes
Modular cable necessary: no
Brand - Mastervolt
Voltage - 12V / 24V DC
