Description

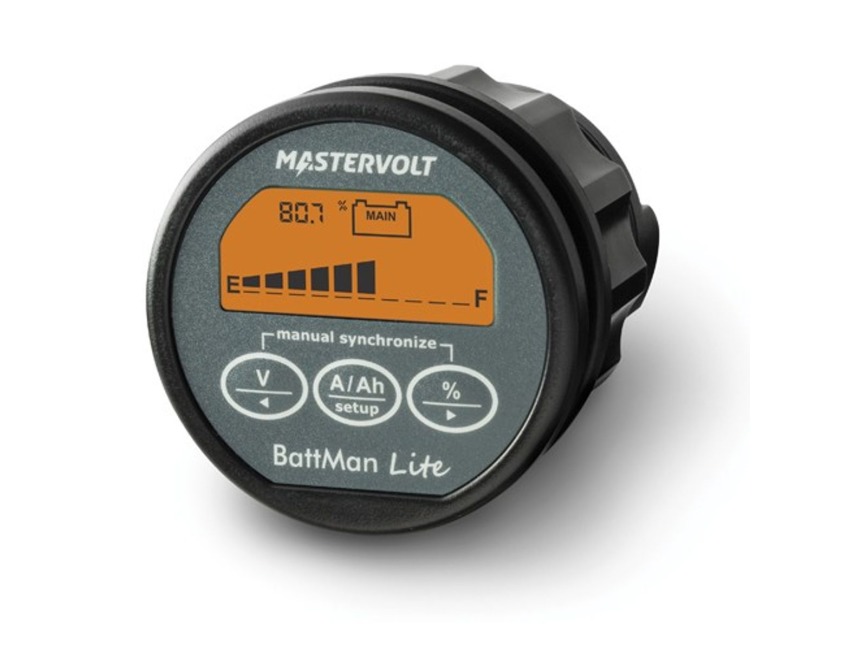

Mastervolt BATTMAN LITE Battery MONITOR 12/24V C/W SHUNT - 70405060
Part No: 70405060
The Masterlink Batman Lite battery monitor provides an accurate indication of the voltage, current, amp-hours and remaining battery capacity displayed as a percentage.
General specifications
Number of battery outlets: 2; service (fully), starter (voltage)
Display/read-out: voltage, current, amp-hours, battery capacity in Languages on display: universal
Built-in depth: 72.5 mm (2.9 inch)
Dimensions: Ø 64 mm, depth 79 mm
Dimensions shunt, hxwxd: 87 × 45 × 35 mm (3.4 × 1.8 × 1.4 inch)
Weight: 0.15 kg (0.3 lb)
Technical specifications
Max. Ah capacity: 9999 Ah
Supply voltage: 9-35 V
Voltage range: 0-35 V
Current consumption (backlight off): 8 mA/12 V, 6 mA/24 V
Current consumption (backlight on): 30 mA/12 V, 18 mA/24 V
Voltage resolution: 0.1 V
Voltage accuracy: ± 0.3
Shunt specification: 500 A/50 mV (service set)
Current measurement range: 0-500 A
Current accuracy: ± 0.4 %
Battery alarm contact: yes, potential free
Remaining time indication: no
Historical data: no
MasterBus compatible: no
Connection cable (6-wire) necessary: yes
Modular cable necessary: no
Brand - Mastervolt
Voltage - 12V / 24V DC
