Mastervolt Battery MATE 2503 IG VOLTAGE DROP FREE 250A Isolator - 83125035
Click to enlarge
Codex
MPN 83125035
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

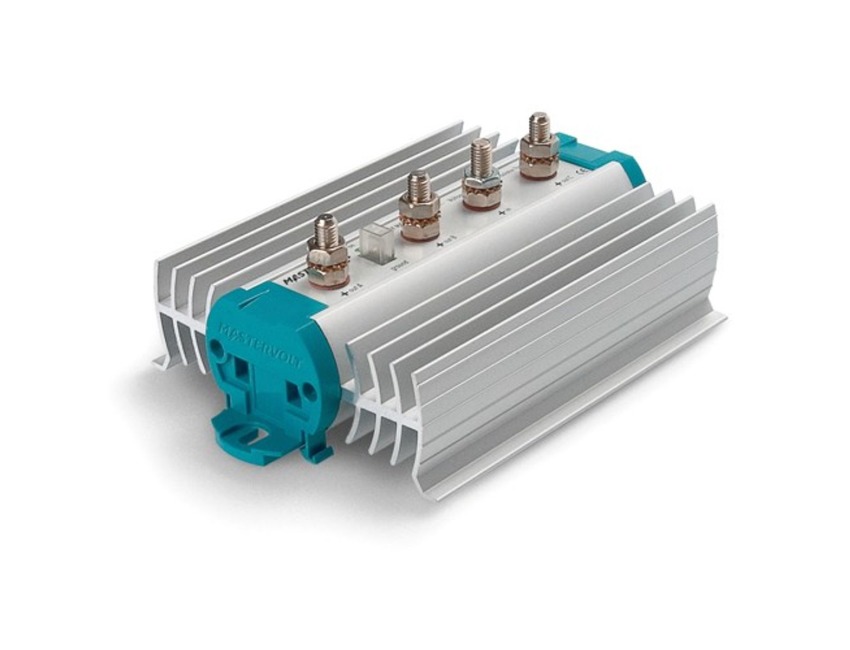

Mastervolt Battery MATE 2503 IG VOLTAGE DROP FREE 250A Isolator - 83125035
Part No: 83125035
The Mastervolt Battery Mate 2503 IG is a battery split charger / isolator to provide independent charging 3 batteries. Instead of conventional diode technology, which results in a voltage drop, the Battery Mate Isolator uses electronic technology which includes the use of mosfets (transistors). The components compensate for the voltage drop and ensure that charging output stays at the right voltage level. This ensures fast and complete charging of your batteries without having to make additional adjustments to the alternator. The units are made from corrosion proof materials, with all electronic components encased in synthetic materials. It also includes an LED to indicate that power input is active.
General specifications
Number of battery outlets: 3
Dimensions, hxwxd: 207 × 140 × 80 mm (8.1 × 5.5 × 3.1 inch)
Weight: 1 kg (2.2 lb)
Technical specifications
Max. output battery charger: 200 A
Max. output alternator: 250 A
Brand - Mastervolt
Height - 207mm (8.1")
Width - 140mm (5.5")
Depth - 80mm (3.1")
Weight - 1 kg (2.2 lb)
Specification List
| Type | Battery Isolator |
|---|
