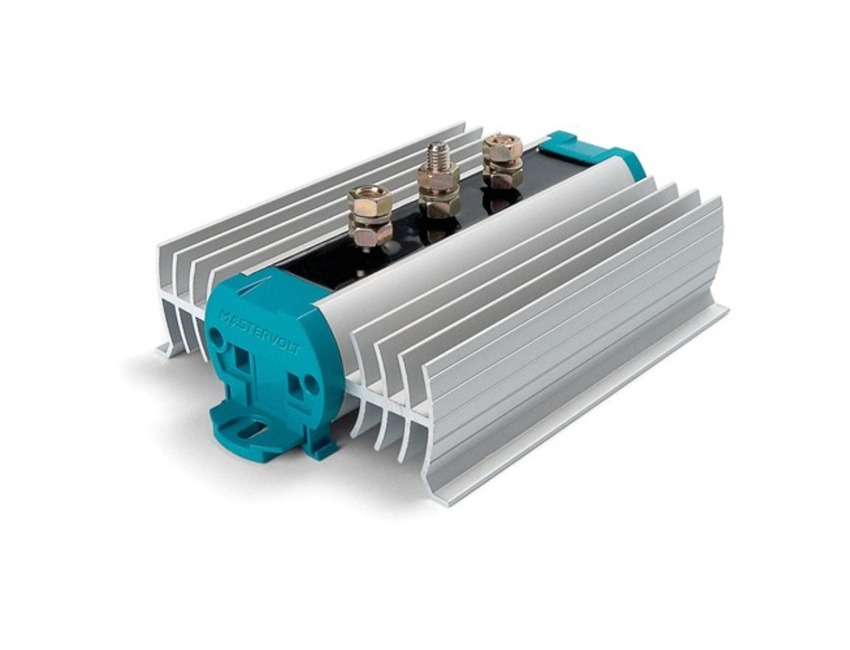

Mastervolt Battery Isolator BI 1202-S 1 INPUT 2 BATT 120A c/w REG SENSOR - 83012021
Part No: 83012021
The Mastervolt BI 1202-S is a battery split charger / isolator to provide independent charging 2 batteries. The isolator is based on conventional diode technology, which does result in a diode voltage drop (ca. 0.6 V). This can be compensated for by adapting the output voltage of the charger or alternator connected to the isolator. The units are made from corrosion proof materials, with all electronic components encased in synthetic materials. They are a compact, fully solid state, preventing opportunites for wear.
General specifications
Number of battery outlets: 2
Dimensions, hxwxd: 207 × 140 × 80 mm (8.1 × 5.5 × 3.1 inch)
Weight: 1.2 kg (2.6 lb)
Technical specifications
Max. output battery charger: 80 A
Max. output alternator: 120 A
Compensation diode: yes
Brand - Mastervolt
Height - 207mm (8.1")
Width - 140mm (5.5")
Depth - 80mm (3.1")
Weight - 1.2 kg (2.6 lb)
Specification List
| Type | Battery Isolator |
|---|
