Mastervolt ALTERNATOR 24-75 INCL 3-STAGE CHARGE REGULATOR - 48624075
Click to enlarge
Codex
MPN 48624075
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description
Mastervolt ALTERNATOR 24-75 INCL 3-STAGE CHARGE REGULATOR - 48624075
Part No: 48624075

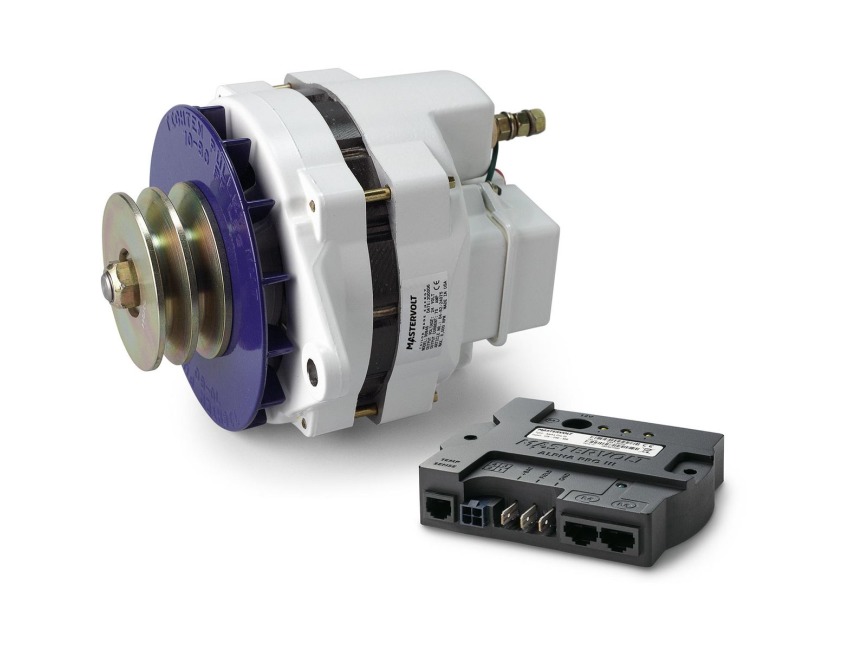

Mastervolt Alpha 24/75 III Alternator (48624075) with Regulator
Using a Battery Mate or battery isolator in conjunction with an Alpha alternator makes it possible to easily charge two or three separate battery sets simultaneously.
TIP: A second alternator on the main engine, combined with a larger battery bank and inverter, could be an alternative for a generator.
For all kinds of engines
Alpha alternators are equipped with several fixations for customised alternator brackets, available from your installer or engine supplier. Some engine brands come with Mastervolt alternator brackets as an option.
Fast charging, even with stationary rpm
Standard alternators only supply the specified capacity at a high rpm. The Mastervolt Alpha alternator is specifically designed for powerful charging, even with a low engine rpm.
Performs above 40°C
Forced cooling by fan operation of the pulley provides a lot of power in higher temperatures, especially close to the engine.
Alpha 24/75 III General Specifications:
Charge regulation: Alpha Pro III regulator (supplied)
Belt section: 2xA
Isolated operation: yes
Rotational direction: 2
Mounting: six o'clock
Dimensions: see ‘Downloads' for drawings
Key Features
Fast & complete charging of starter and service batteries.
Power supply for all consumers.
24V version.
75A charge current.
Supplied with Alpha Pro III charge regulator for optimal performance & longer-lasting batteries.
Supplied With - Alpha Pro III 3-Stage Charge Regulator
Brand - Mastervolt
Voltage - Charge Absorption: 28.5V, Charge Float: 26.5V
Amps - Total charge current: 75A
Approvals - CE
Weight - 10.1 kg (22.3 lb)
Diameter - Nominal pulley: 89mm (3.5")
Specification List
| Type | Parts |
|---|
