Mastervolt ALPHA PRO III CHARGE REGULATOR c/w M-BUS - 45513000
Click to enlarge
Codex
MPN 45513000
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

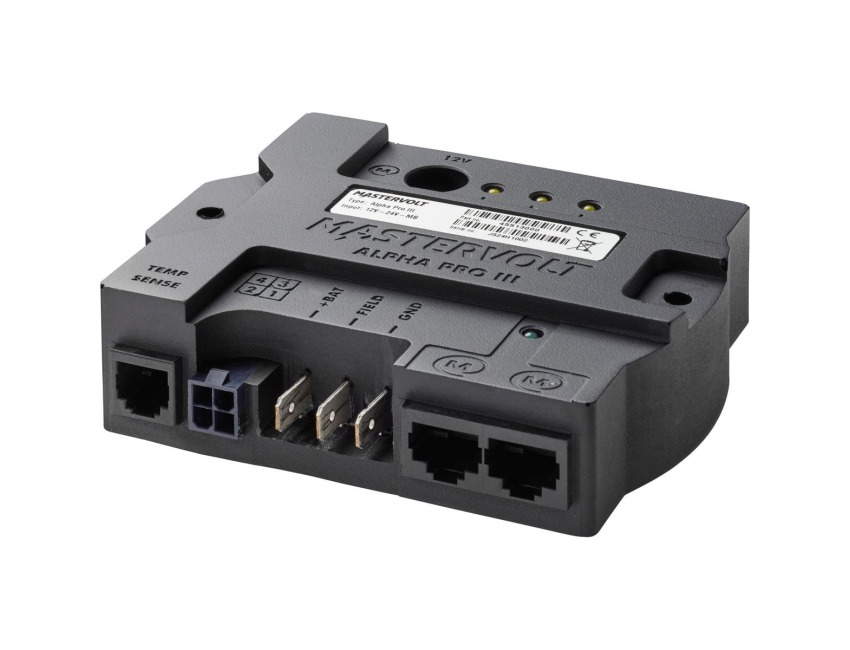

Mastervolt ALPHA PRO III CHARGE REGULATOR c/w M-BUS - 45513000
Part No: 45513000
Mastervolt Alpha Pro III 45513000 is an advanced 3-step charge regulator for standard and high performance alternators. Applications range from improving the performance of a standard alternator in a boat, to generator replacement, when combined with a high performance alternator.
The propulsion engine of your boat may be used to quickly charge your service batteries, either while cruising or taking a break. The Mastervolt Alpha Pro III ensures safe and fast charging, protecting both the batteries and the engine. From 10 years of experience, the Alpha Pro III brings higher power and improved ease of use, along with a modern look.
The Alpha Pro III measures the voltage and the temperature of your batteries to prevent overcharging, keeping them in the best condition. This charge regulator also monitors the engine load, reducing sound variations and wear & tear. The smart 'keep alive' feature solves a common problem causing unreliable tachometer readings. Using MasterBus it communicates RPM, alternator status and charge status for an intelligent power system.
Pull the max out of your alternator
The alternator that comes with the engine is not optimally suited for charging service batteries; instead it is designed for low cost and short charge cycles, it charges at a slow pace and is easily overheated. Replacing the standard regulator with the Alpha Pro III (not allowed on Euro 5/6 engines) optimizes the charging process, protecting against over-heating, over-charging and extends the lifetime of your batteries.
Super charge your system
Mastervolt recommends to combine the Alpha Pro III with a high performance alternator such as the reliable Mastervolt Alpha series for superfast charging at low RPM. With 20 amps of field current capability the Alpha Pro is the only 3-step regulator in the market capable of controlling alternators with outputs up to 400A.
Alpha Pro III: Fast charging, anytime, anywhere.
Alpha Pro III General Specifications:
Link to MasterShunt: yes
Connection to Mastervolt alternator: yes
Connection to Bosch alternator: yes, using a Bosch adapter cable (product code 45510500)
Nominal battery voltage: 12V / 24V
Connection plug regulator/alternator: Alpha/Mastervolt
Cooling: Fan-less
MasterBus Powering: yes
Display/read-out: LED Display
Mastervolt 45513000 Technical Specifications:
Charge characteristic: IUoUo, automatic / 3-step+ for Gel/AGM/flooded/Lithium Ion
Charge voltage Bulk/Absorption/Float: default setting for AGM, Gel and Lithium Ion (adjustable)
Absorption time: 4 hours, adjustable from 2 minutes to 12 hours
Temperature compensation: -30 mV / °C, -17 mV/ °F
DC voltage compensation: voltage drop compensation in DC cables up to 3V
Field current: up to 20 amps
MasterBus compatible: yes
Key Features
Transforms Alternator into a full temperature controlled 3-step charger
Reduces run time, saves fuel, reduces noise & emissions
Protects from overcharging & extends battery life
Balances engine load, reducing RPM variations
Compatible with standard & high performance alternators (200A ~ 400A models)
Integrated 'keep alive' feature for reliable tachometer readings
For all batteries, including Lithium Ion
For 12V & 24V systems
MasterBus compatible
Supplied With - Battery Temperature Sensor with 6m (20 ft) Cable
Brand - Mastervolt
Voltage - 12V / 24V DC
Approvals - CE, 2014/30/EU (EMC Directive), 2011/65/EU (RoHS directive), EN 61000-6-3: 2007 A1:2011 AC:2012, EN 61000-6-2: 2005 AC:2005, EN 61000-4-2: 2008, EN 61000-4-4: 2012
Height - 90mm (3.5")
Width - 109mm (4.3")
Depth - 30mm (1.2")
Specification List
