Mastervolt Alpha Alternator 24/75 III Multigroove - 48624076
Click to enlarge
Codex
MPN 48624076
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

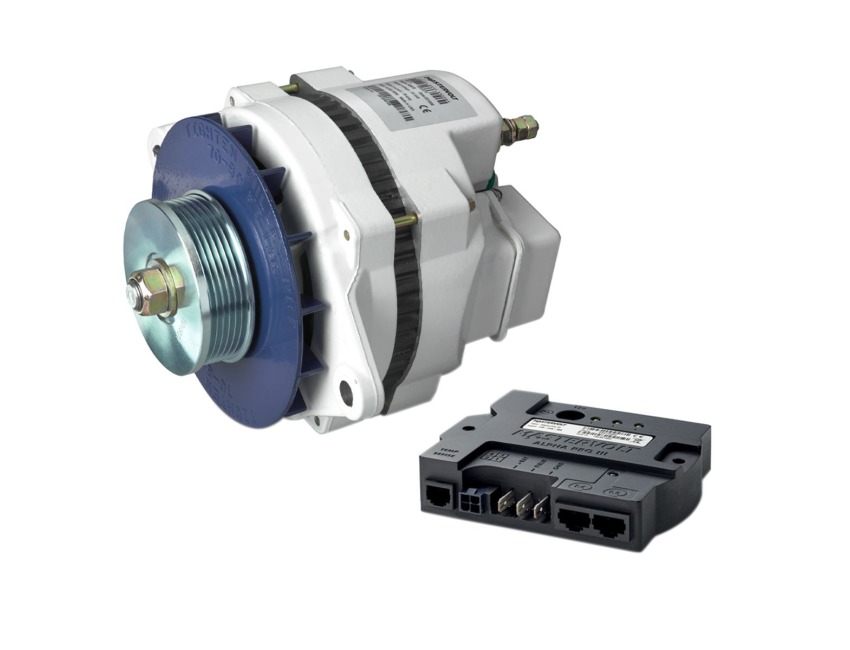

Mastervolt Alpha Alternator 24/75 III Multigroove - 48624076
Part No: 48624076
The Mastervolt Alpha 24/75 III multigroove alternator delivers fast and complete charging of starter and service batteries.
This 24V alternator is delivered as standard with the Alpha Pro III charge regulator for an optimal performance and longer-lasting batteries.
Using a Battery Mate or battery isolator in conjunction with an Alpha alternator makes it possible to easily charge two or three separate battery sets simultaneously.
A second alternator on the main engine, combined with a larger battery bank and inverter, could be an alternative for a generator.
Alpha alternators are equipped with several fixations for customised alternator brackets, available from your installer or engine supplier. Some engine brands come with Mastervolt alternator brackets as an option.
Standard alternators only supply the specified capacity at a high rpm. The Mastervolt Alpha alternator is specifically designed for powerful charging, even with a low engine rpm.
Forced cooling by fan operation of the pulley provides a lot of power in higher temperatures, especially close to the engine.
- Total charge current: 75 A
- Belt section: 2xA
- Isolated operation: yes
- Rotational direction : 2
- Mounting: Six o'clock
- Charge voltage absorption: 28.5 V
- Charge voltage float: 26.5 V
- Nominal diameter pulley: 89 mm/ 3.5 inch
Key Features
For all engine types
Fast charging, even at a stationary rpm
Performs above 40 °C
Brand - Mastervolt
Voltage - Charge Absorption: 28.5V, Charge Float: 26.5V
Weight - 10.1kg (22.3 lb)
Mounting - Six o’clock
Specification List
| Type | Parts |
|---|
