Description

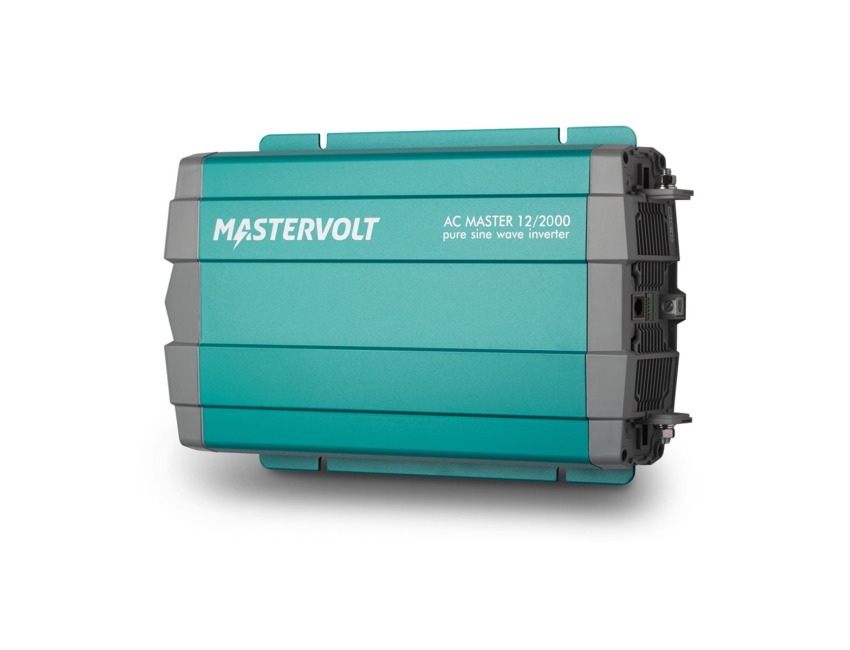

Mastervolt AC MASTER INVERTER 12/2000 - 28012000
Part No: 28012000
The Mastervolt AC Master power inverter produces a pure sine wave AC (Alternating Current) output from a DC (Direct Current) input from your boats battery bank. Because of the pure sine wave output, it is safe and reliable and prevents damage to the equipment it is connected to. The inverter is easy to install and features built in protection against over-temperature, overload, short circuit, high or low battery voltage and reverse polarity.
The power inverter is robustly built and delivers the full output even in demanding conditions. The high frequency technology used eliminates noise typically associated with power inverters, such as buzzing or humming. It also features an automatic power saving mode, meaning a longer run time and less strain on your batteries. The 28012000 model is MasterBus compatible and can be used with remote control M70405080 for easy operation.
General specifications
Output voltage: 230/240 V 50/60 Hz (selectable)
Output waveform: true sine
Nominal battery voltage: 12 V
Recommended battery capacity: ? 200 Ah
Continuous power at 25 °C / 77 °F, cos phi 1: 2000 W
Continuous power at 40 °C / 104 °F, cos phi 1: 2000 W
Peak load (1 min.): < 2300 W
Peak load (1 s): < 4000 W
AC connection: plug connection EU (Schuko)
Galvanisedanic isolation: yes
Efficiency: 94 Display/read-out: LED indication: battery voltage, load level, status
Alarms: potential free alarm contact
Dimensions, hxwxd: 248 × 443 × 83mm (9.8 × 17.4 × 3.3 inch)
Weight: 5.2 kg (11.5 lb)
Compliance: CE, E-mark, RCM
Technical specifications
Technology: high frequency, input & output fully isolated
Low battery voltage, switches off at: 10.5 V
Low battery voltage, switches on at: 12.5 V
High battery voltage, switches off at: 16.5 V
High battery voltage, switches on at: 14.5 V
Input current (nominal load): 200 A
No-load power consumption (ON mode): < 1.8 A
No-load power consumption (energy saving mode): < 0.1 A
Minimal DC fuse (slow blow): 250 A
Minimal cable size: 70mm²
Harmonic distortion typical: < 5
Cos phi: all power factors allowed
Temperature range (ambient temp.): -20 °C to 60 °C, derating power > 40 °C (-4 °F to 140 °F)
Cooling: temperature and load controlled fan
Protection degree: IP21, horizontal wall mounting
Protections: over-temperature, overload, short circuit, high/low voltage, reverse polarity (fuse)
MasterBus compatible: yes, using a MasterBus AC Master Interface
Key Features
Pure sine wave technology protects sensitive equipment
Delivers full output at high peak power under the most demanding conditions
Automatic power-saving system for extended runtime
Compact and lightweight design, saving valuable installation time
Reliable and safe operation; protected against over-temperature, overload, short circuit, high or low battery voltage
Variable speed fan for quiet operation at low power
Convenient plug connection
Brand - Mastervolt
Voltage - 12V DC
Height - 248mm (9.8")
Width - 443mm (17.4")
Depth - 83mm (3.3")
Weight - 5.2 kg (11.5 lb)
Temperature Range - Ambient Temperature: -20 °C to 60 °C, derating power > 40 °C (-4 °F to 140 °F)
Specification List
| Type | Inverter |
|---|
