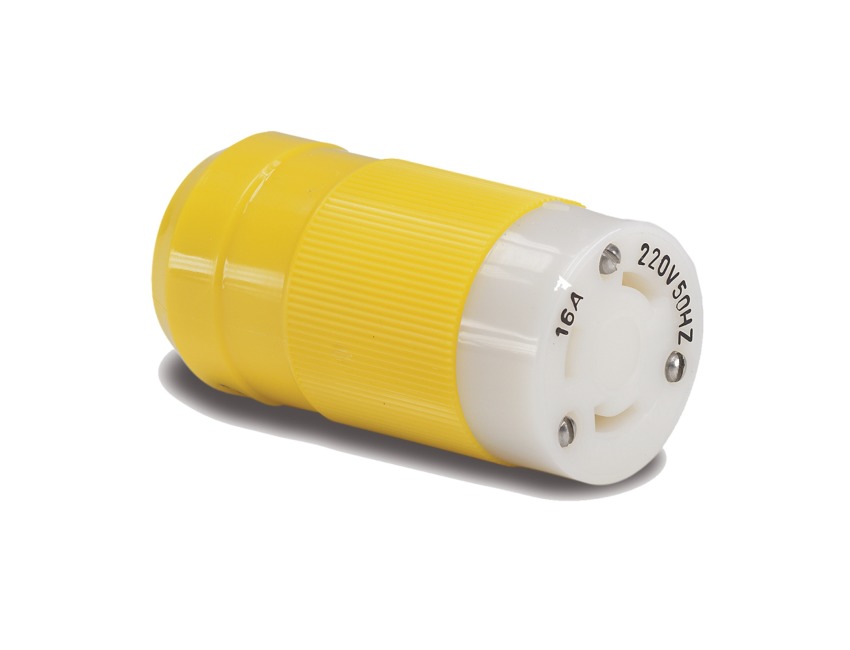

Marinco Female Connector - Ez Lock - 16A - 230V - Shore Power - 305CRCXNPK

The 305CRCXNPK 16A 230V female shore power connector features corrosion resistant contacts and terminals.

The body is made of yellow nylon with a ribbed design for secure grip.

Item: Connector, locking.
Rating: 16 amperes, 230 volts, 50 Hz, single-phase, 2-pole, 3-wire.
Materials: Plastic parts are nylon with CTI greater than 600 volts.
Terminals: Clamp-type, with color-coded brass terminal screws, 10-32.
Contacts: Contacts are single-piece, rivetless, brass, 0.81 mm thick.
Cord Clamp: Internal, with removable insert to accommodate cable with O.D. from
8.3 mm to 18.3 mm.
Overall Design: Three assembly screws, type B, slotted, stainless steel.
Dust seal at cord entry. Beveled housing.
Certifications: Conforms to IEC 60309-1:1999 when used with boot 103RN and cap/strap 199109.
