Maestrini DZR Lever Ball Valve 1" BSP - 5140F

Click to enlarge

Code1

MPN 5140F

£33.91

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

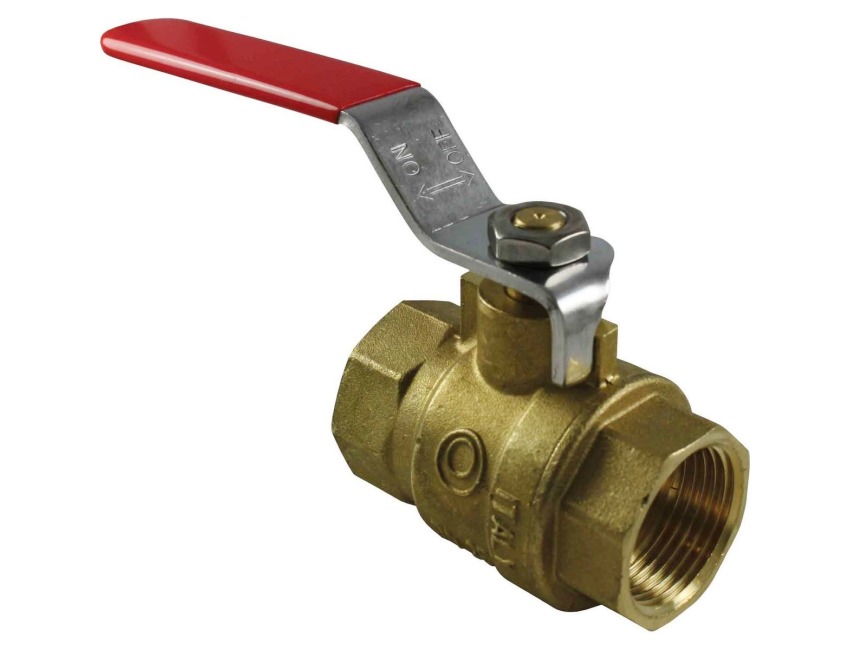

Maestrini Bronze Lever Ball Valve 1" BSP

Part number: 5140F

Maestrini ball valve constructed from de-zincification resistant CW602N CR brass. This ball valve is suitable for hot or cold water, steam, gasoline, fuel, oil, gas oil, kerosene and compressed air and can be used for sea water inlets and outlets. These ball valves are threaded 1" BSP Female each end and have a lever handle on top which requires a 1/4 turn for on/off action. DZR CR ball valves are full bore meaning no restriction to flow when fully opened.

This ball valve features a CW602N DZR CR brass body and ball, as well as a stainless steel lever handle.

IMPORTANT: It is extremely important to check the material suitability and bonding requirements for below waterline components. Action must be taken to prevent Galvanisedanic action. If in doubt, please contact a qualified and competent marine engineer.

Specification List

Type Ball Valve Country of origin Italy
Tariff code 74122000
