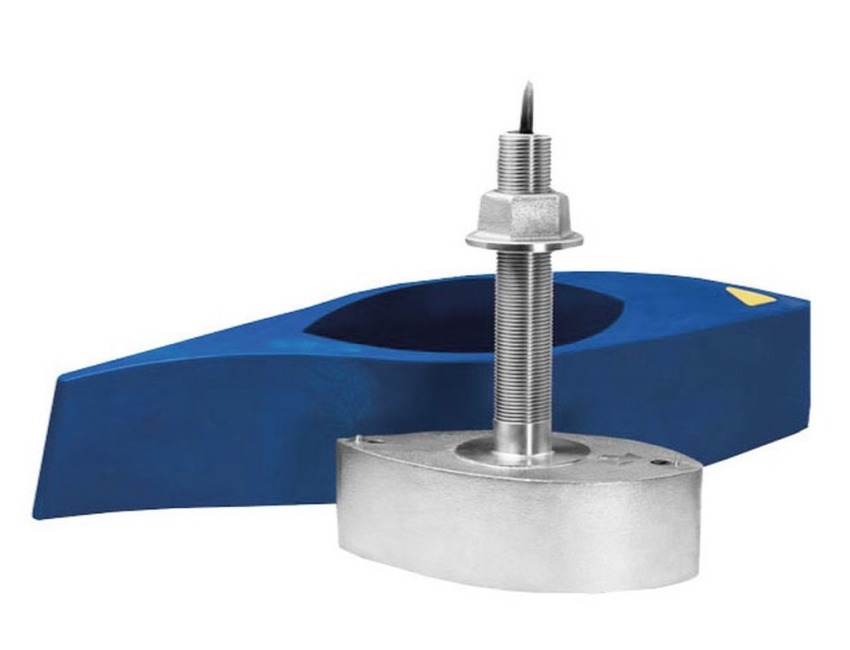

Lowrance Simrad S260 - 1kW Stainless Steel Through Hull Transducer - 000-13783-001

Airmar - Lowrane/Simrad XSonic SS260 stainless-steel 50-200 kHz 1Kw through hull transducer. (10 meter cable with 9 pin connector)

The SS260 is our best performing, stainless-steel, thru-hull stem for 1 kW echosounders.

The performance of Airmar’s "1 kW 260 family" of transducers has made them legendary. The combination of power and sensitivity has made this the high performance transducer of choice for use with conventional fishfinders.

Operating at 50 kHz and 200 kHz, the narrow 6° beam at 200 kHz provides excellent target resolution and crisp images of fish holding tight to wrecks and reefs.

The 50 kHz provides excellent deep water detection and the wide 19° beam provides broad coverage under the boat.

SS260 features a stainless steel housing which is compatible for all hull materials.

Installed with the included custom fitting high-performance fairing, the 260 can provide excellent performance at speeds up to 30 knots (34 MPH).

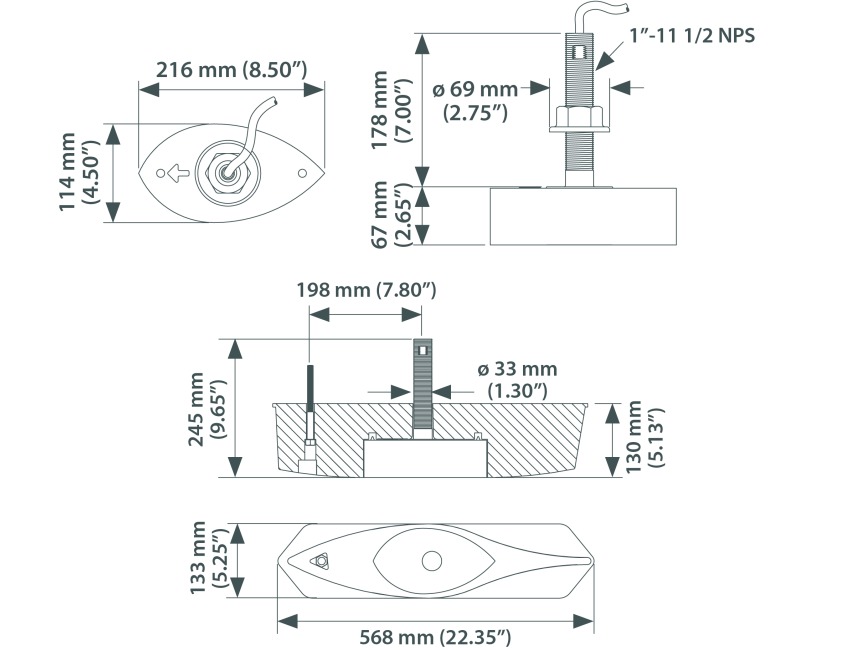

Dimensions (W x H x D) 114 × 216 × 244 mm (W, L, D) (4.5 X 8.5 X 9.6") without fairing block
Weight 7.3 kg ( 16 lb)
Frequencies 50/200 kHz
Max Depth 735m (2400 ft) (low freq) depending on sonar
