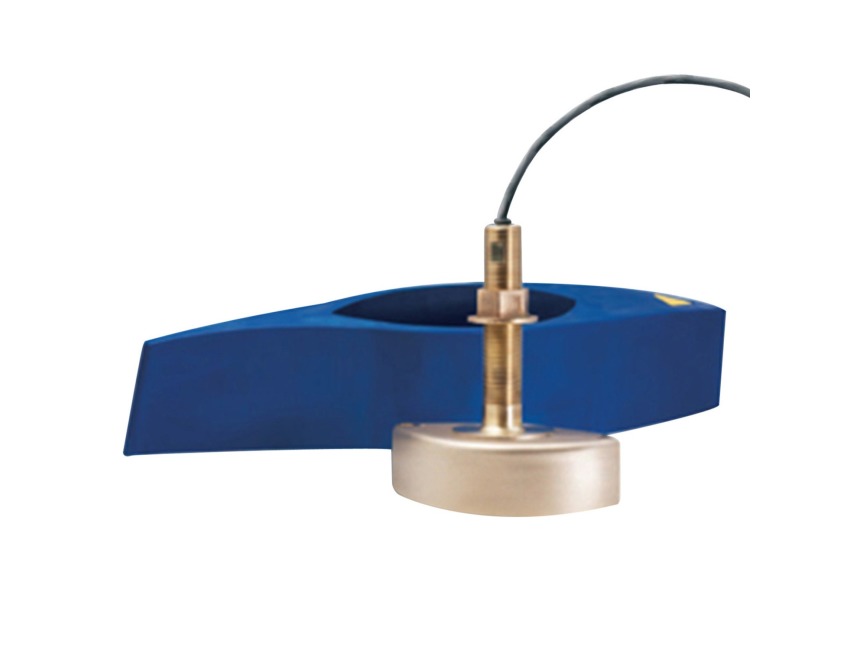

Lowrance Simrad B258 - 1kW Bronze Through Hull Transducer - 000-13964-001

Airmar - Lowrane/Simrad XSonic B258 1kW Depth/Temperature Transducer (10 meter cable with 9 pin connector)

The B258 is an excellent, economical 1 kW, dual frequency transducer for anglers.

Its unique four ceramic element construction produces an elliptical beam pattern that covers a wider area and produces excellent target resolution.

The combination of 200 kHz and 50 kHz make it a great option for both shallow and deep water use.

The included high-performance fairing provides excellent performance at speeds up to 30 knots (34 MPH).

Key Features

High Performance
-The 1kW transducer is perfect for fast, sportfishing vessels that can install a thru-hull transducer with a fairing.

Deep Water Fishing
-Excellent for deep water bottom and structure fishing up to 500m/1640ft.

Depth/Temperature
-Calculate depth and temperature from one compact sensor.

Easy To Install

Wide Operating Range
-From 1 knot to 45 knots.

Highly Accurate Sounding
-Provides extremely accurate echosounding data, even at speeds of over 30 knots.

Dual Frequency
-Works at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water.

Bronze
-Built to withstand the environment.

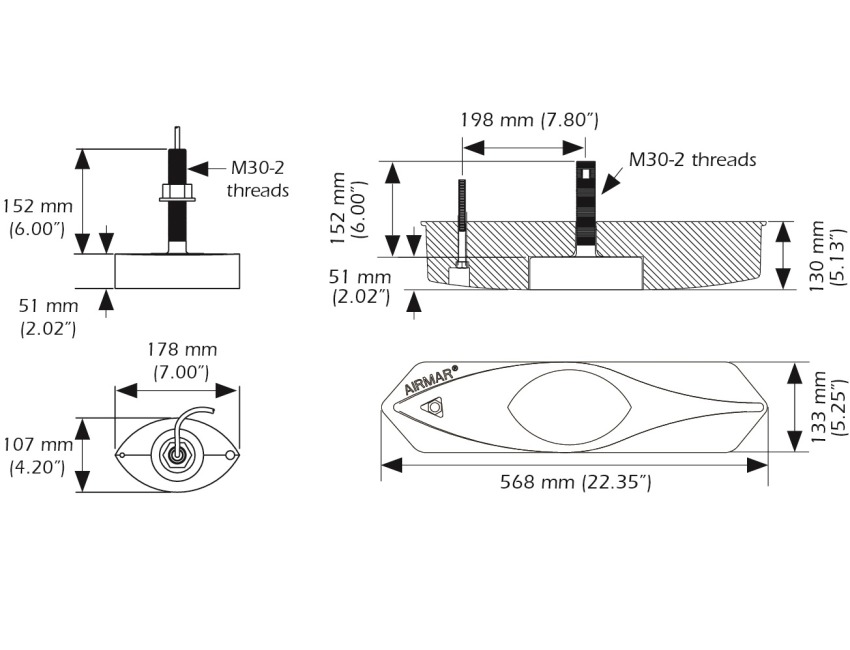

Dimensions (W x H x D) 108 × 178 × 203 mm (W, L, H) (4.3 × 7 x 8")
Weight 3.6 kg (7.9 lb)
Frequencies 50/200 kHz
Max Depth 640m (2100 ft) depending on sonar
