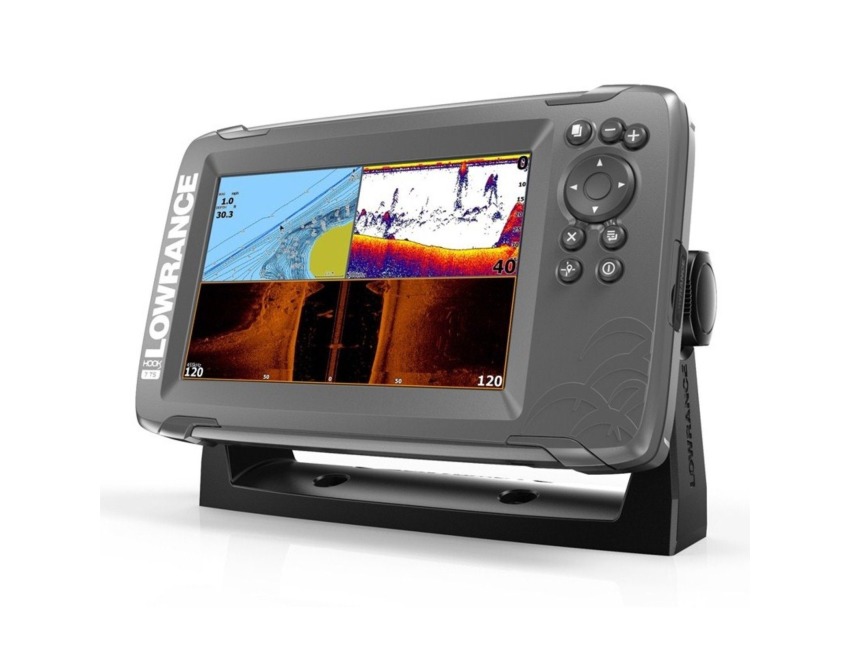

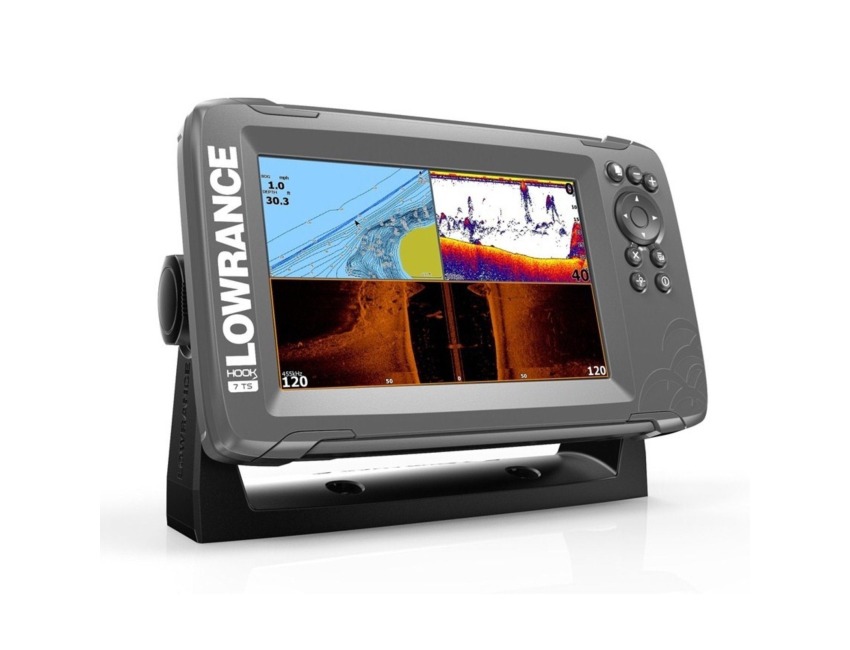

LOWRANCE HOOK²-7 Fishfinder/Chartplotter Combo with TripleShot Hook2 - 000-14024-001

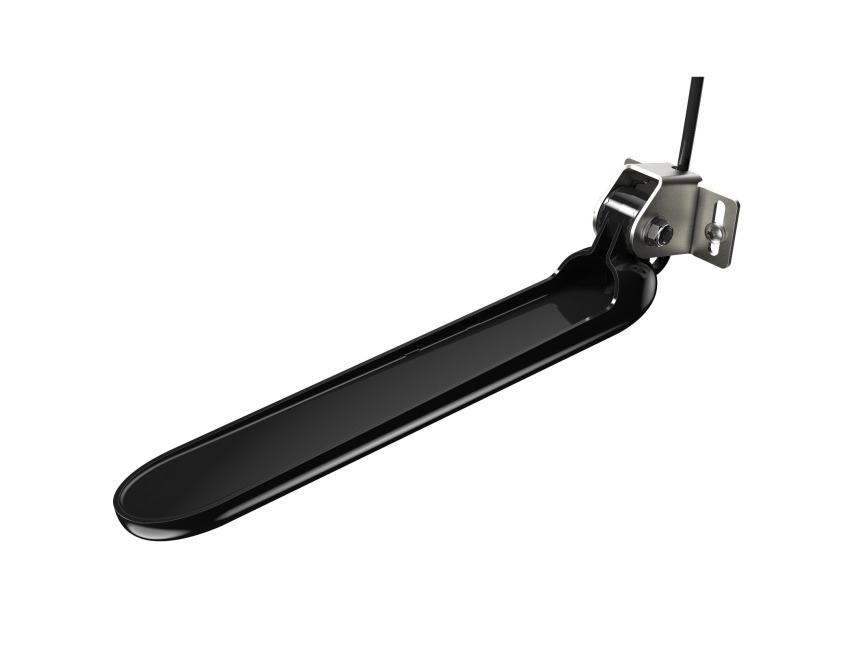

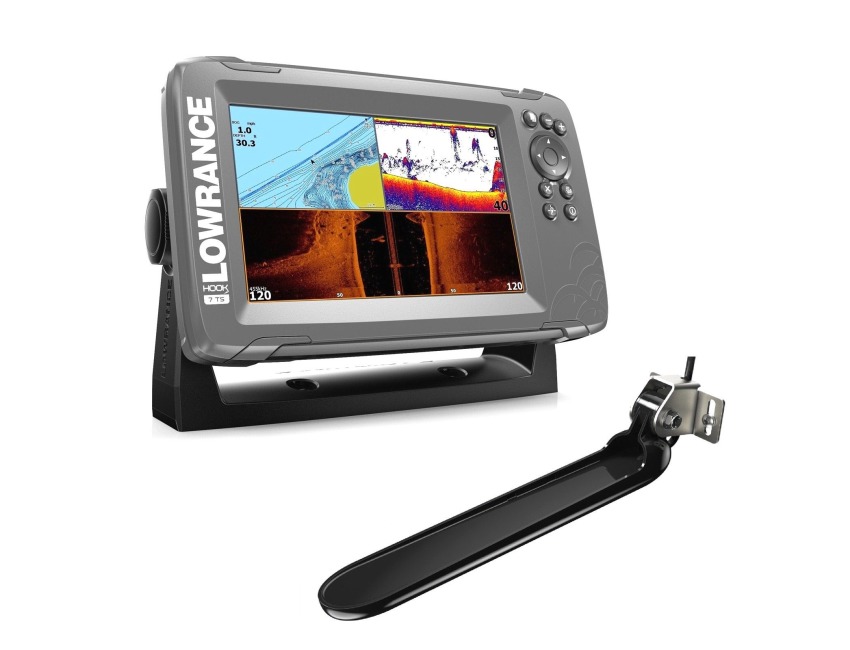

HOOK²-7 Fishfinder/Chartplotter with TripleShot Transducer
(No Cartography)

The easy to use HOOK2 7 TripleShot fishfinder offers simple menus, easy access to key functions and Autotuning sonar. Powered by proven Lowrance® performance, HOOK2 7 features TripleShot 3-in-1 sonar with wide-angle, High CHIRP coverage, SideScan and DownScan Imaging, plus a built-in way-point background. Just plug it in and fish. Yes, it's that easy.

7-inch SolarMAX Display

Get crisp and clear views of fish and fish-holding structure with the excellent clarity and daylight visibility of a high-resolution SolarMAX display.

Automated sonar settings

You will spend more time fishing and less time dialing in your sonar with HOOK2 Autotuning sonar. Just plug it in and fish. It doesn't get any easier.

Easiest-to-use menu operation and Dedicated Keypad

Make the adjustments you want with fewer key presses via a simplified menu layout and dedicated keypad.

Tripleshot 3-in-1 Sonar with High CHIRP, SideScan and DownScan Imaging

TripleShot 3-in-1 sonar makes it easier to stay on te fish, delivering the best traditional sonar views and lifelike images of fish-holding structure beneath and beside your boat.

Mapping options

You can easily upgrade the mapping on your HOOK2 with optional mapping cards from C-MAP, C-MAP Genesis, Navionics® and more.

microSD card slot

Save your waypoints, routes and trails to a microSD card or upgrade your mapping with an optional chart card.

Easy front-dash or quick-release bracket mount installation

Pick the best installation option for your boat from simple flush-mount and quick-release bracket installation options.

Specifications:

Display
Display Size 7.0in (178mm)
Display Resolution 800 × 480
Display Type Color TFT

Sonar
Sonar Broadband Frequency 200 kHz/High CHIRP
Sonar DownScan / SideScan Frequency 455/800 kHz
Sonar Broadband Max Power 200w RMS
Sonar DownScan / SideScan Max Power 500w RMS
Sonar Broadband Max Depth 500ft (152m)
Sonar DownScan Max Depth DownScan : 300ft (91.4m) / SideScan L/R : 300ft (91.4m)
Sonar Alarm Shallow, Deep, Arrival, Depth
TrackBack Yes
Temperature Readings Yes

GPS/Navigation
GPS Type Internal high-sensitivity WAAS + EGNOS + MSAS
Waypoints 3000
Routes 100
Trails 100 plots with up to 10,000 points per trail

Language Packs
Standard Language Pack:
Afrikaans/Afrikaans,
Danish/Dansk,
German/Deutsch,
English (US),
English (UK),
Spanish/Español,
Finnish/Suomi,
French/Français,
Greek,
Icelandic/íslenska,
Italian/Italiano,
Dutch/Nederlands,
Norwegian/Norsk,
Portugese (Brazil)/Português (BR),
Portugese (Portugal)/Português (PT),
Swedish/Svenska
Other language pack models at additional cost:
Eastern European Language Pack*
Middle East Language Pack*
Asian Language Pack*
Russian/Ukrainian*
*only available from authorized dealer/distributor in the target region.

Technical/Environmental
Power Supply 10-17V DC (12V systems)
Waterproof Yes IPX-7
Micro SD Card Slot 1

Dimensions:
Width 9.30in (236mm)
Height 6.46in (164mm)
Depth 3.3in (84mm)
