LOWRANCE HOOK2-9 Fishfinder/Chartplotter Combo with Splitshot - 000-14182-001

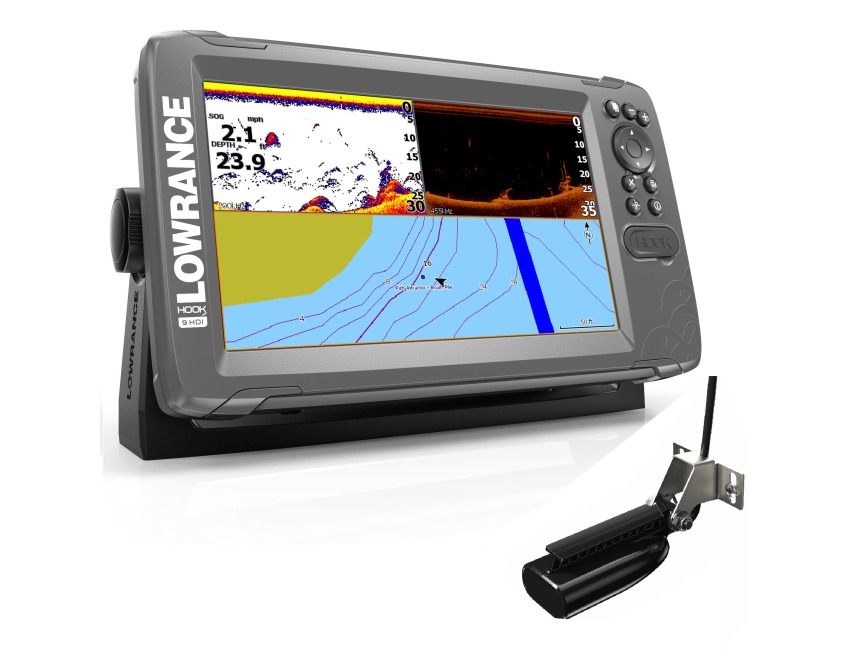

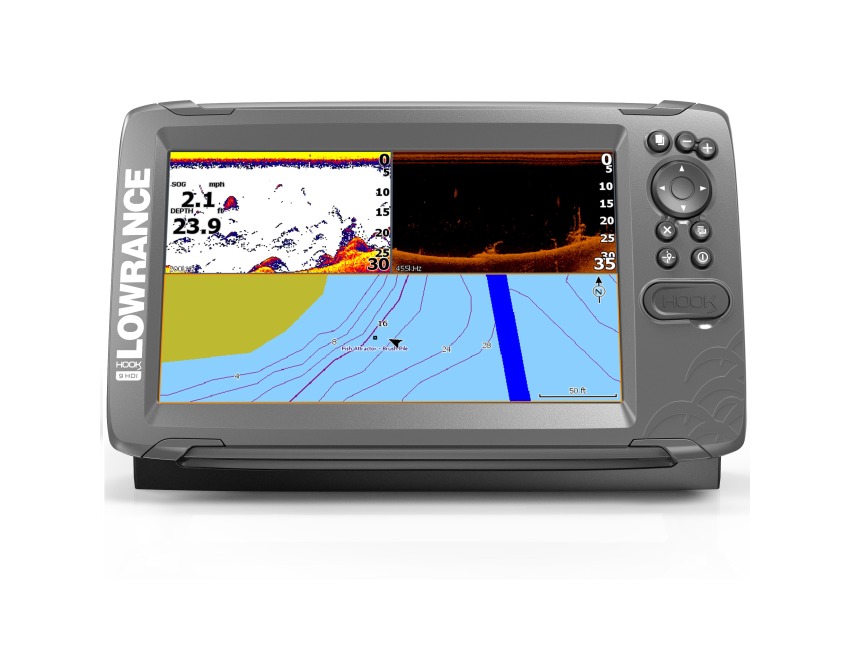

HOOK²-9 Fishfinder/Chartplotter with SplitShot Transducer

The easy to use HOOK2 9 SplitShot fishfinder offers simple menus, easy access to key functions and Autotuning sonar. Powered by proven Lowrance performance, HOOK2 9 featuresSplitShot2-in-1 sonar with wide-angle, High CHIRP coverage and DownScan Imaging,plus a built-in way-point background. Just plug it in and fish. Yes, it's that easy.

9-inch SolarMAX Display
Get crisp and clear views of fish and fish-holding structure with the excellent clarity and daylight visibility of a high-resolution SolarMAX display.
Automated sonar settings
You will spend more time fishing and less time dialing in your sonar with HOOK2 Autotuning sonar. Just plug it in and fish. It doesn't get any easier.
Easiest-to-use menu operation and Dedicated Keypad
Make the adjustments you want with fewer key presses via a simplified menu layout and dedicated keypad.
Splitshot 2-in-1 Sonar with High CHIRP and DownScan Imaging
SplitShot2-in-1 sonar makes it easier to stay on te fish, delivering the best traditional sonar views and lifelike images of fish-holding structure beneath and beside your boat.
Mapping options
You can easily upgrade the mapping on your HOOK2 with optional mapping cards from C-MAP, C-MAP Genesis, Navionics and more.
microSD card slot
Save your waypoints, routes and trails to a microSD card or upgrade your mapping with an optional chart card.
Easy front-dash or quick-release bracket mount installation
Pick the best installation option for your boat from simple flush-mount and quick-release bracket installationoptions.

Specifications:

Display
Display Size 9.0in Diagonal (288mm)
Display Resolution 800 × 480
Display Type Color TFT

Sonar
Sonar Broadband Frequency 200 kHz/High CHIRP
Sonar DownScan Frequency 455/800 kHz
Sonar Broadband Max Power 200w RMS
Sonar DownScanMax Power 500w RMS
Sonar Broadband Max Depth 500ft (152m)
Sonar DownScan Max Depth DownScan: 300ft (91.4m)
Sonar Alarm Shallow, Deep, Arrival, Depth
TrackBack Yes
Temperature Readings Yes

GPS/Navigation
GPS Type Internal high-sensitivity WAAS + EGNOS + MSAS
Waypoints 3000
Routes 100
Trails 100 plots with up to 10,000 points per trail

Language Packs
Standard Language Pack:
Afrikaans/Afrikaans,
Danish/Dansk,
German/Deutsch,
English (US),
English (UK),
Spanish/Espaol,
Finnish/Suomi,
French/Franais,
Greek/
Icelandic/slenska,
Italian/Italiano,
Dutch/Nederlands,
Norwegian/Norsk,
Portugese (Brazil)/Portugus (BR),
Portugese (Portugal)/Portugus (PT),
Swedish/Svenska

Other language pack models at additional cost:
Eastern European Language Pack*
Middle East Language Pack*
Asian Language Pack*
Russian/Ukrainian*
*only available from authorized dealer/distributorin the target region.

Technical/Environmental
Power Supply 10-17V DC (12V systems)
Waterproof Yes IPX-7
Micro SD Card Slot 1
Dimensions:
Width 10.92in (277mm)
Height 6.39in (162mm)
Depth 4.4in (111mm)
