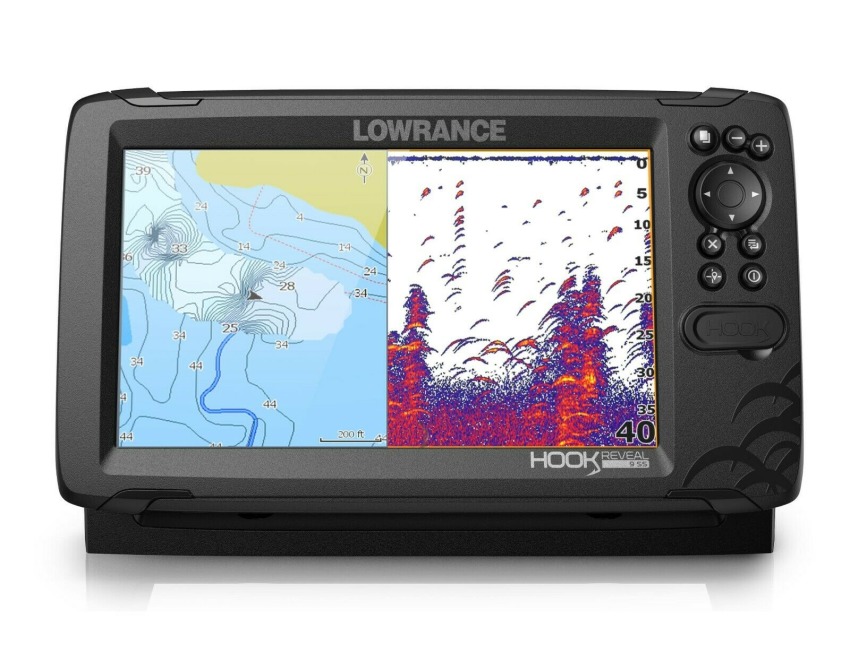

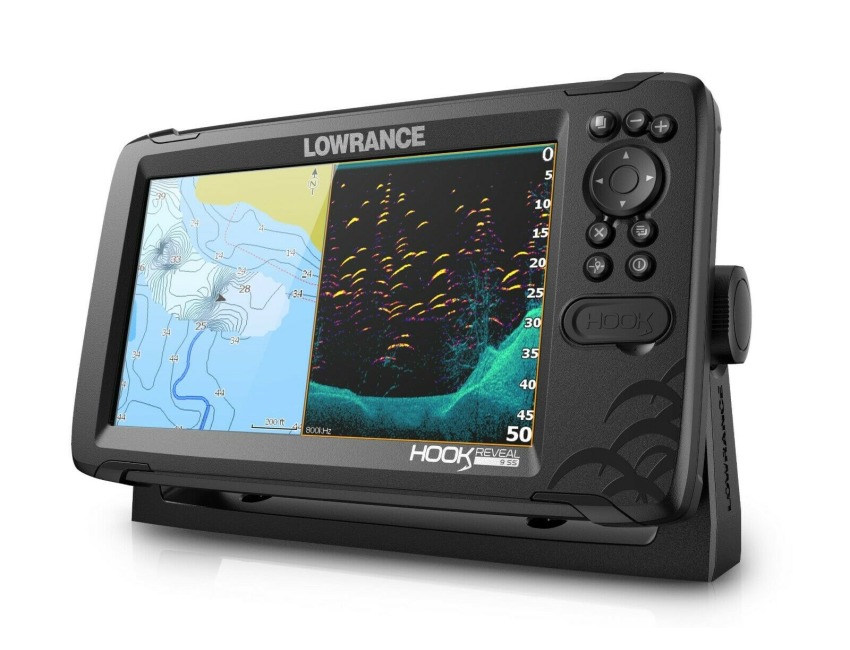

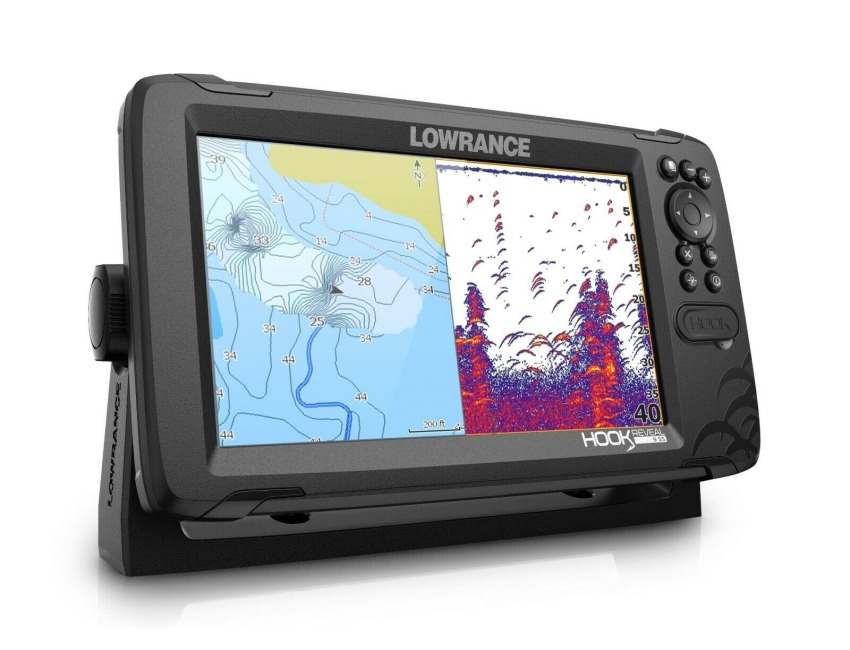

LOWRANCE HOOK Reveal 9 50/200 HDI Chartplotter Chirp Fishfinder - 000-15527-001

Hook Reveal 9 Fishfinder/Chartplotter c/w 50/200 HDI Transducer
(Base Cartography Only)

The all-new HOOK Reveal makes fishing easier, delivering powerful performance with proven fish-finding tools including, Auto tuning Sonar and DownScan Imaging and now Fish Reveal,
which makes fish easier to see by combining the benefits of Lowrance CHIRP sonar and DownScan Imaging on one screen.
The all-new HOOK Reveal makes fishing easier, delivering powerful performance with proven fish-finding tools.

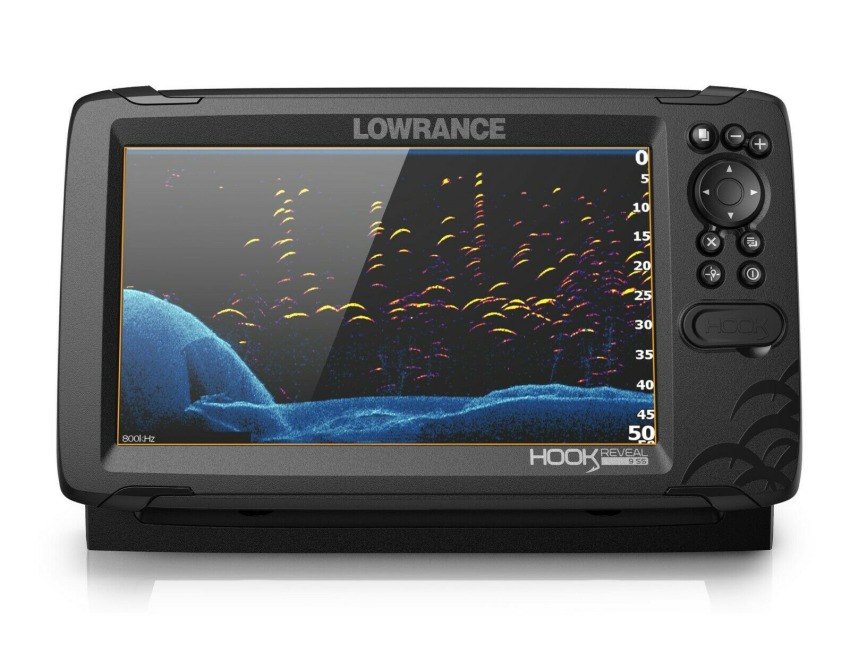

FishReveal
Fish are easier to find and easier to identify with FishReveal, which combines on one screen the proven performance of Lowrance CHIRP sonar and the high-resolution images of fish-holding structure from DownScan Imaging.
Fish targets light up your display.

Autotuning Sonar
Spend more time fishing and less time reworking your sonar settings with HOOK Reveal Auto tuning sonar, which ensures you get the best sonar image every time by automatically adjusting settings as fishing conditions change.

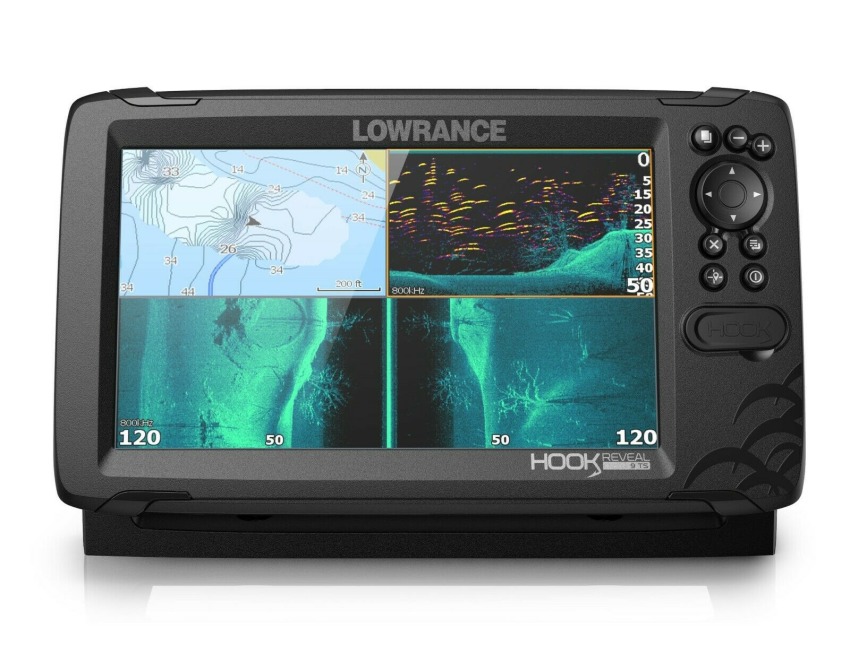

HDI High CHIRP Sonar with DownScan Imaging
Perfect for anglers who want all their sonar from a single transducer, HDI features the fish-finding capability of wide-angle high CHIRP sonar and the high-resolution images of fish-holding structure from SideScan and DownScan Imaging.
SolarMAX Display
Enjoy crisp and clear views of your display no matter the conditions even in direct sunlight with excellent clarity and daylight visibility of HOOK Reveals SolarMAX display.

Easiest-to-use Menu Operation and Dedicated Keypad
Easily navigate through menus, select options and access key functions with HOOK Reveals simple menu layout and dedicated keypad.

Specification:
Display
Backlight Color Pure White LED
Resolution 800 × 480
Screen Brightness >1000 NITS
Size and Type 9" (228 mm) SolarMAX Display
Viewing Angles 80 top/bottom
Electrical
Power Consumption, typical 1.5A @ 13VDC with backlight on full
Recommended Fuse Rating 5A
Supply Voltage 12v DC (10.8-17VDC)
Humidity 60C, 95% relative humidity (RH) for 18 hours
Environment
Operating Temperature Range 5F to 131F (-15C to 55C )
Shock and Vibration 100,000 cycles of 20 G
Storage Temperature Range 4F to 140F (-20C to 60C )
Waterproof rating IPX7 with card door closed
GPS
Correction DGPS, WAAS
Time to First Fix 30s
MFD
Cartography included: C-Map World Base Map
Cartography supported: C-MAP Lake Insight HDC-MAP Insight ProC-MAP (MAX N, MAX N+) Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)
External Storage
Micro SD Card(32 gb Max)
GPS
1 Hz GPS GLONASS WAAS EGNOS MSAS
Sonar
Integrated: CHIRP Broadband DownScan
Max depth Sonar: 152 m Max depth DownScan: 91 m
Waypoints, Routes, Tracks
3000 Waypoints 100 Routes 100 Trails
Compass Safe Distance
12" (300mm)
Physical
Dimensions (W x H x D)10.92" (277.3 mm) x 6.90 (175.2 mm) x 4.42" (112.3 mm)
Mounting Type Gimbal Bracket Front Dash Flush Mount
Weight 1.90 lb. (0.86 kg)

Languages:

Afrikaans/Afrikaans, Danish/Dansk, German/Deutsch, English (US), English (UK), Spanish/Español, Finnish/Suomi, French/Français, Greek/????????, Icelandic/íslenska, Italian/Italiano, Dutch/Nederlands, Norwegian/Norsk, Portugese (Brazil)/Português (BR), Portugese (Portugal)/Português (PT), Swedish/Svenska
