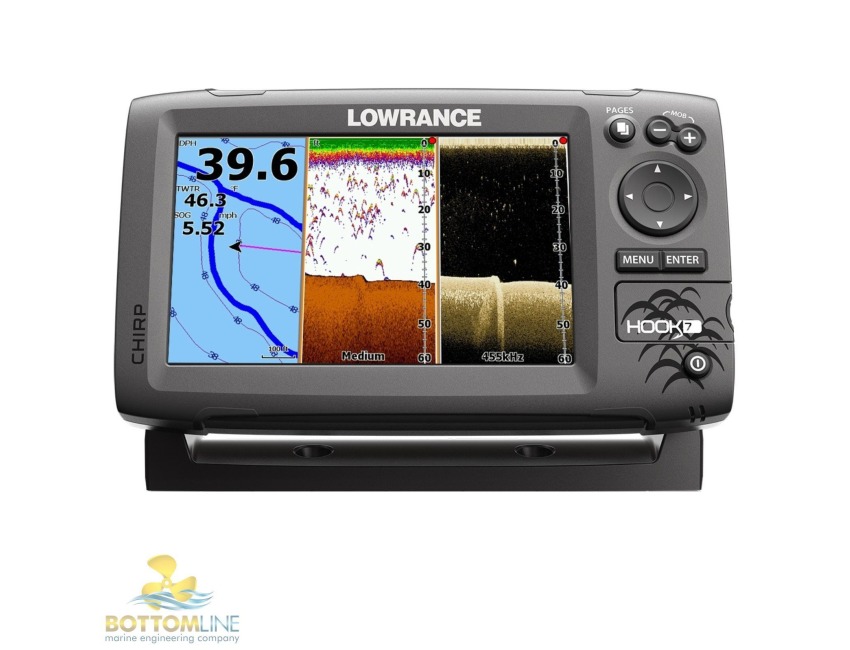

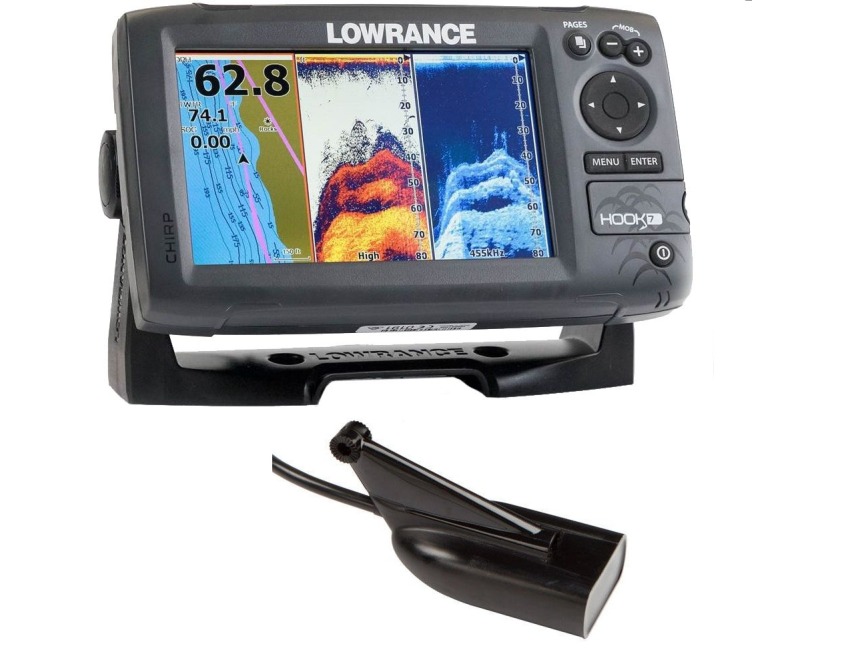

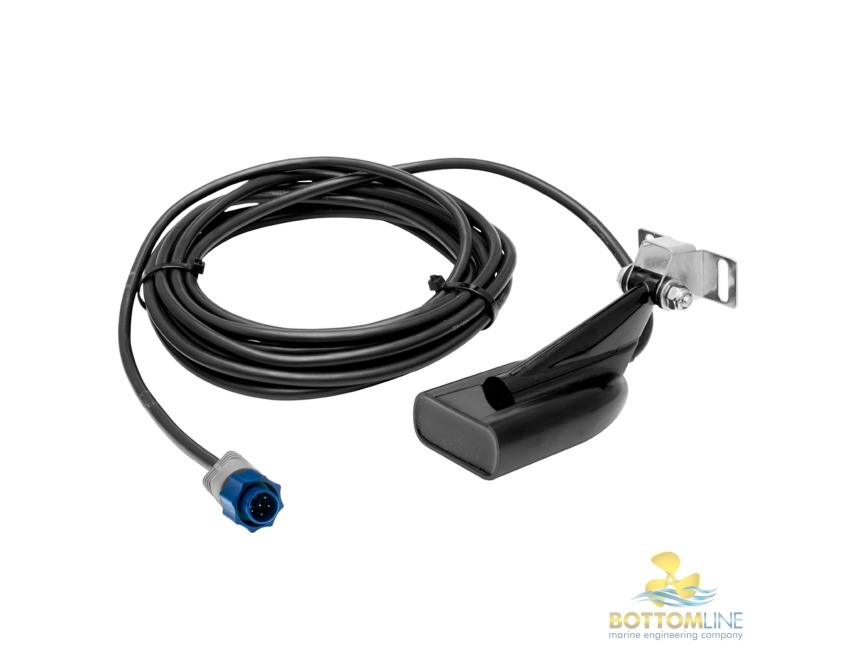

Lowrance HOOK 7 Chartplotter / Fishfinder c/w CHIRP Hybrid skimmer transducer

Hook-7 Fishfinder/Chartplotter with Mid/High/DownScan Transducer
(No Cartography)

7-inch Fishfinder/Chartplotter with high-bright, LED-backlit display, combined CHIRP and DownScan technology, built-in
FIND
CHIRP sonar technology: Combine the power of two CHIRP ranges for the ultimate in target separation and noise rejection
Hybrid Dual Imaging (HDI): The power of two award-winning technologies

Broadband Sounder PLUS Exclusive DownScan Imaging
combined to provide the best possible view of the water column and everything in it.
DownScan Overlay: Exclusive technology overlays DownScan Imaging onto Broadband Sounder display for one stunning view that separates and clearly exposes fish targets from surrounding structure. Overlay transparency and color palettes are fully adjustable.
TrackBack: Easily scroll back in sonar history to review covered areas and pinpoint spots (saves time and fuel trying to re-trace your path). With chartplotter models, simply mark a waypoint at your cursor location with the press of a button.
Advanced Signal Processing: Reduces manual adjustments to automatically see fish, structure and bottom detail more clearly.

NAVIGATE
Reliable Navigation Thats Easy To Use
Highly accurate, built-in GPS antenna. An optionalmicro SD card can also be used to display Navionics Gold and Jeppesen C-Map Max-N Wide charts.
Create your own map from real sonar data that you record with the online Insight Genesis map creation service (Subscription required)
Allows users to make their own custom, high-resolution contour, bottom hardness and vegetation maps from recorded sonar logs.

DOMINATE
Hook-7 Color Display: Lowrance-exclusive, high-resolution, 7-inch, color display provides brilliant visibility and viewing detail in all conditions.
All-New Page Selector: An easier-to-use menu system with quick access to all features using one-thumb operation.
Multi-Window Displays: Choose from as many as eight preset page layouts, including up to three panels in split-screen mode to view chart, Broadband Sounder and DownScan Imaging
all on one screen simultaneously. Multi-Window view can be accessed while viewing live sonar and charting.
Supported by Lowrance Advantage Service program and limited one-year warranty.

(Charts available separately)

CHIRP sonar advantages:
- Easier to identify and distinguish bait and game fish targets
- Better target identification at greater depths
- Mark fish clearly at faster boat speeds
Exclusive Lowrance Hook-7 CHIRP advantages:
- Multiple CHIRP ranges from a single transducer
- CHIRP sonar performance with a greater number of affordable transducers, including the Lowrance HDI Skimmer
- View multiple CHIRP sonar settings on one display

Specifications
Display 7" / 178mm Widescreen 16:9 Resolution 800 × 480
Power Output: RMS (PTP) Max 250W RMS, 30,000W Peak to Peak analogue equivalent
Operating Frequency 83/200 kHz + 455/800 kHz
Max Depth: Sonar DownScan 455/800 kHz 300ft (91m) Max Depth: Sonar Broadband Mid/High (83/200 kHz) transducer 1000ft
(305M)
Operating Voltage 12 vDC (10-17 vDC min-max)
Waterproof:Yes IPX7
Network: NMEA 0183Output
Warranty One year
Languages 14
Supported by 5-Year Advantage Service -
