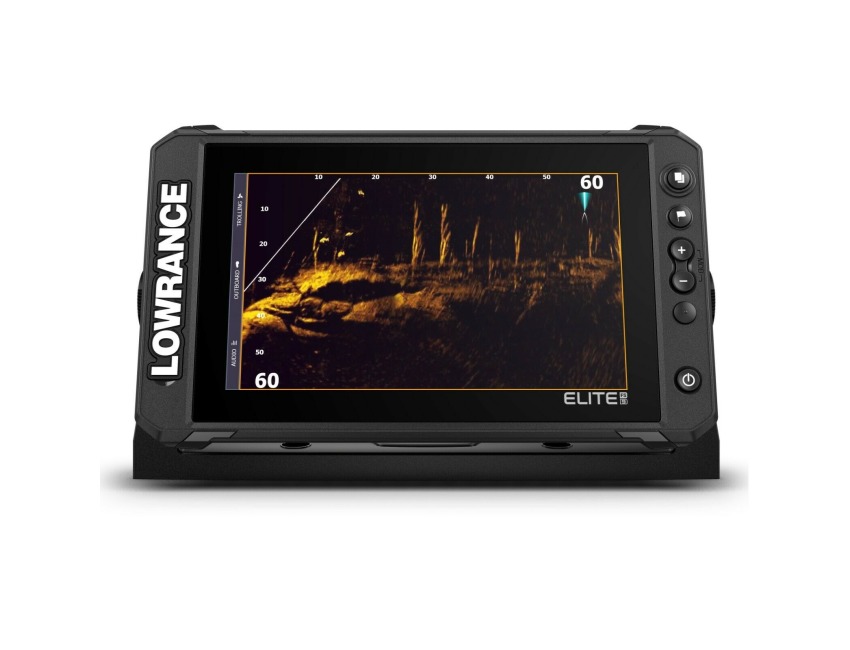

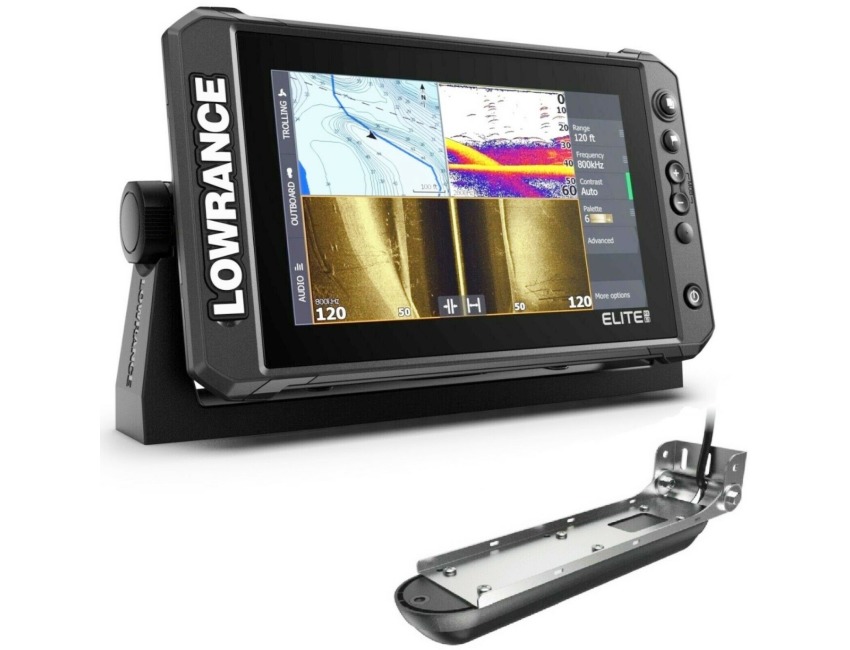

Lowrance Elite 9FS with 3-in-1 Transducer - 000-15693-001

Lowrance Elite 9 FS AI With 3 in 1 Transducer

The Elite Fishing System (FS) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install.

From integrated support for ActiveTarget live sonar and extreme high-resolution Active Imaging with Lowrance CHIRP sonar, SideScan and DownScan Imaging to compatibility with a wide range of chart options, Elite FS gives you all the tools you need to find and catch more fish.

Find More Fish with Proven Lowrance Sonar

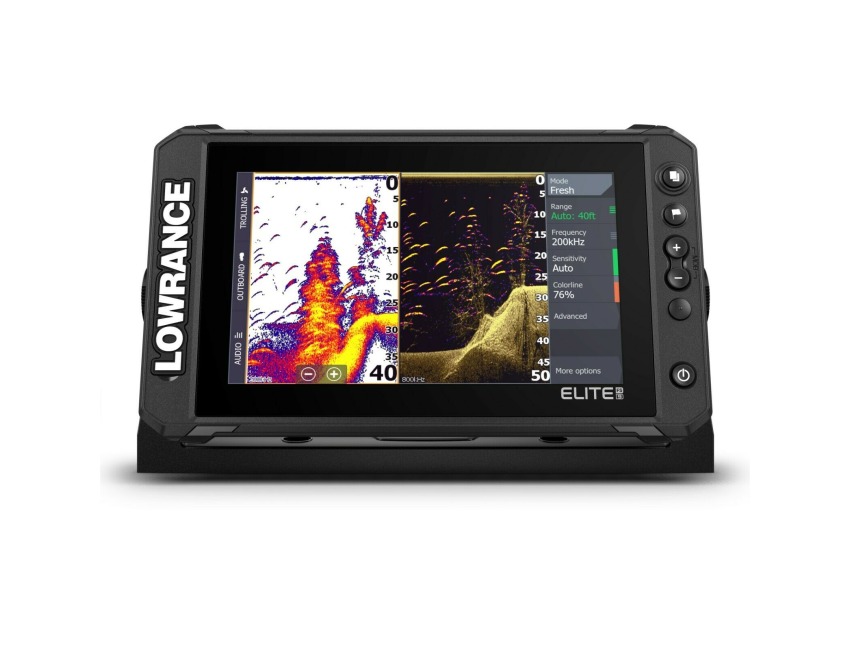

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging™ 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal. Get the best of CHIRP sonar and DownScan Imaging on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Target Fish Live with New ActiveTarget Live Sonar
Fish smarter when you know exactly what fish are doing – in real time – with ActiveTarget Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.

Multitude of Chart Options
Preloaded with a worldwide basemap, Elite FS displays offer compatibility with a wide range of chart options, including C-MAP, Navionics and more.

Features:

ActiveTarget Live Sonar ready
Active Imaging 3-in-1 ready
FishReveal
Includes worldwide basemap, plus a wide range of chart options, including C-MAP, Navionics and more
C-MAP Easy Routing, Navionics Autorouting capability
C-MAP Genesis Live onscreen mapping
High-resolution multi-touch touchscreen
Integrated wireless, NMEA 2000 and Ethernet connectivity
Full touchscreen control of Power Pole® anchors and Ghost® Trolling Motor

Lowrance Elite FS 9 Specifications

Screen Brightness - >1200 nits
SD Card Storage - 1 micro SD card up to 32GB
Ethernet Ports - 1 × 100Mbit
Warranty Period - 1 Year + 4 additional years of upgrade options Totaling 5 years
Update rate - 10 Hz
GPS - 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS
Shock Vibration - 100,000 cycles of 20 G
Compass Safe - 12" (300mm)
Supply Voltage - 12v DC (10.8-17VDC)
GPS Receiver Channels - 16
NMEA 2000 Connectivity - 1x Micro-C
NMEA 0183 Connectivity - None
Power Consumption max 2.0A @ 13VDC with backlight on full
Power Consumption typical 2.0A @ 13VDC with backlight on full
Power Consumption min 2.0A @ 13VDC with backlight on full
Weight - 2.7 lbs (1.2 kg)
Position Accuracy - 20m RMS
Waypoints, Routes, Tracks 3000 Waypoints100 Routes100 Trails with up to 10,000 points per trail
Time to First Fix - 30s
Recommended Fuse Rating - 3A
Storage Temperature Range - 4°F to 140°F (-20°C to 60°C )
Radar compatibility - 4G (Broadband)3G (Broadband)Halo20 (Pulse Compression Dome Radar)Halo20+ (Pulse Compression Dome Radar)Halo24 (Pulse Compression Dome Radar)
Operating Temperature Range - 5°F to 131°F (-15°C to 55°C )
Viewing Angles - 50° top60°bottom70° left/right
Humidity - 60°C, 95% relative humidity (RH) for 18 hours
Display Resolution - 800×480
AIS - AIS Chart overlay. Target vessel details. (Additional equipment required)
Charts supported - C-MAP (MAX N, MAX N+)C-MAP GenesisC-MAP Precision Contour HD (AMER ONLY)Navionics (Gold, NAV+ Platinum+)Insight (Pro and HD)Lowrance Regional Mapping Partners
Cartography included C-MAP ROW Basemap (ROW models)Navionics basemap (AMER, AUS/NZ and ROW models)

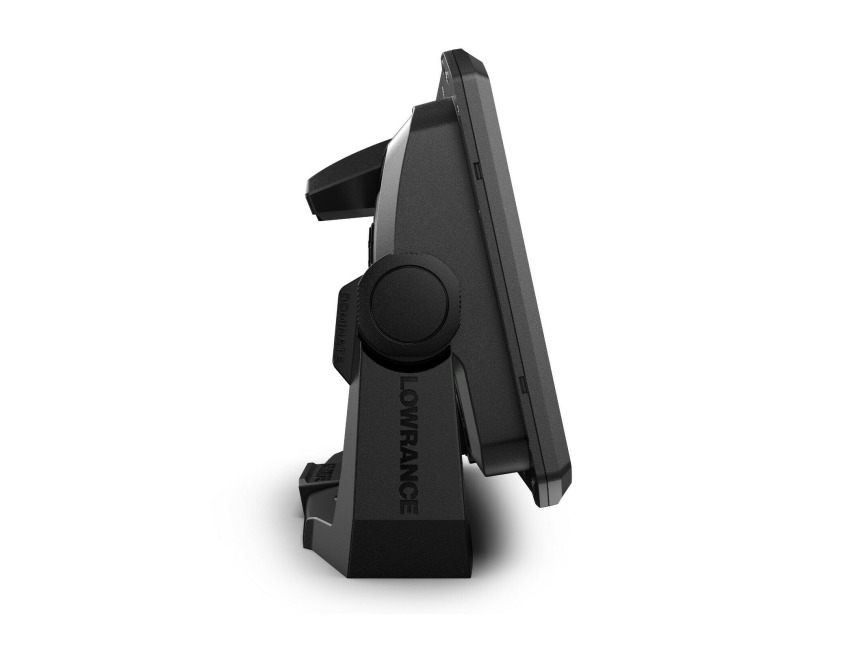

Mounting Type - Gimbal Bracket or Dash Flush Mount
Bluetooth - Integrated Bluetooth 4.0 with support for Bluetooth Classic
Sonar Compatibility - Integrated: CHIRP BroadbandActive Imaging DownScanActive Imaging SideScanCompatible with:SonarHubStructureScanStructurreScan 3DLiveSightActive Target
Connectivity - WiFi Internal 802.11b/g/n
Waterproofrating - IPX7 with card door closed
Interface Multi-Touch TouchscreenZoom /-MOB = (/- combined)PagesWaypointLight/Power
PC Connectivity - None
Video - None
Digital Switching - None
Autopilot Outboard PilotGhost Trolling MotorMotorGuide Xi5/Xi3 Trolling Motor **requires Motorguide PinPoint Gateway
Backlight Colour - Pure White LED
N2K PGNs Receive only 65240 ISO Commanded Address, 127245 Rudder, 127251 Rate of Turn, 127257 Attitude, 127488 Engine Parameters, Rapid Update, 127489 Engine Parameters, Dynamic, 127493 Transmission Parameters, Dynamic, 127505 Fluid Level, 127508 Battery Status, 129033 Time and Date, 129038 AIS Class A Position Report, 129039 AIS Class B Position Report, 129040 AIS Class B Extended Position Report, 129794 AIS Class A Static and Voyage Related Data, 129801 AIS Address Safety Related Message, 129802 AIS Safety Related Broadcast Message, 129808 DSC Call Information, 130313 Humidity, 130314 Actual Pressure, 130576 Small Craft Status, 65285 Temperature with Instance, 65325 Reprogramming Status, 65480 Parameter Reply, 1
