LOWRANCE - TotalScan Mid/High/StructureScan - Through hull Transducer 000-14257
Click to enlarge
Code162983026073
MPN 000-14257-001
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

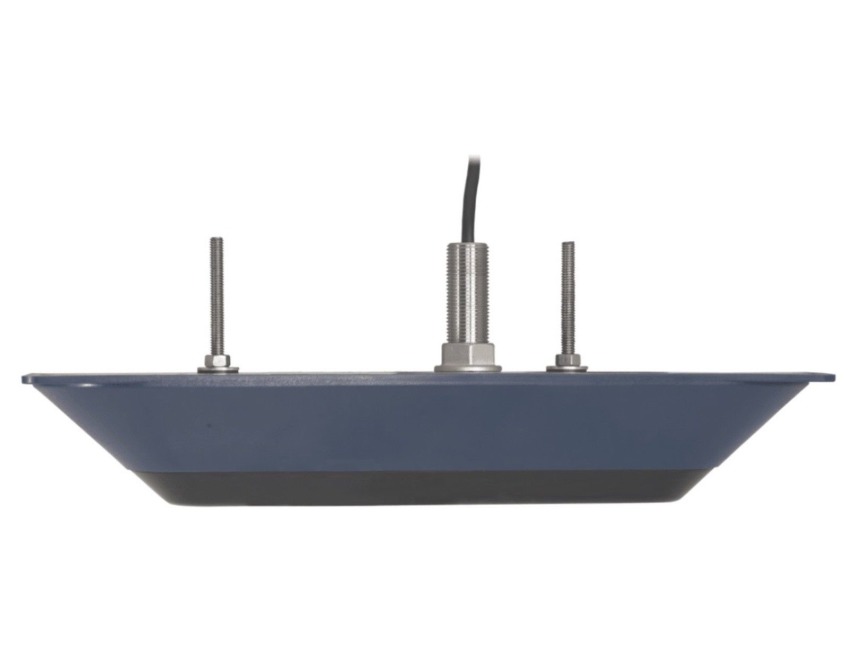

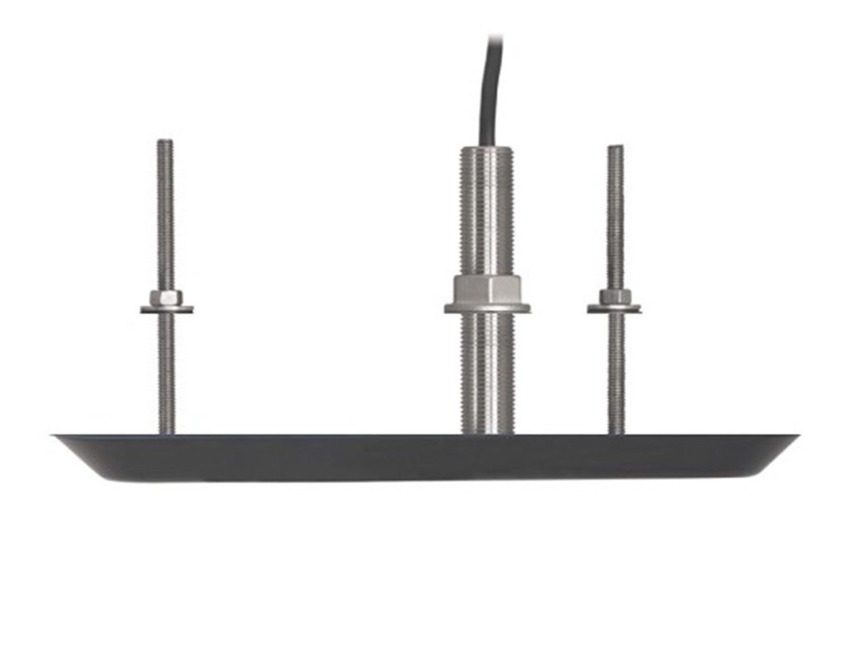

TotalScan Through hull Mid/High/StructureScan
The New TotalScan Through hull Transducer combines the proven technology of CHIRP, DownScan Imaging and StructureScan HD into one package.
The TotalScan Transducer will allow anglers to access Medium CHIRP, High CHIRP, DownScan Imaging and StructureScan using only a single transducer mounted through the hull.
Single transducer for flat to hull mounting or fits deadrises up to 5 degrees with fairing block.
All-in-one transducer featuring Broadband, CHIRP, StructureScan HD and DownScan Imaging
Supports 83/200kHz Broadband sonar frequencies
Supports Medium and High CHIRP frequencies
Supports 455/800kHz StructureScan frequencies
Compatible with:
Lowrance: Elite-Ti, HDS Gen3, HDS Carbon
Simrad: GO XSE, GO XSR, NSS Evo3
Totalscan transducers include XID and are automatically recognised by the display they are connected to,
....so no user setup required!
Transducer Frequencies 83/200/455/800kHz, Medium/High CHIRP
Sidescan range 300ft to each side.
Downscan range 300ft deep.
Specification List
| Type | Transducer |
|---|
