Lowrance - Structure-Scan HD plastic through hull transducer - HDS Touch- LSS-2

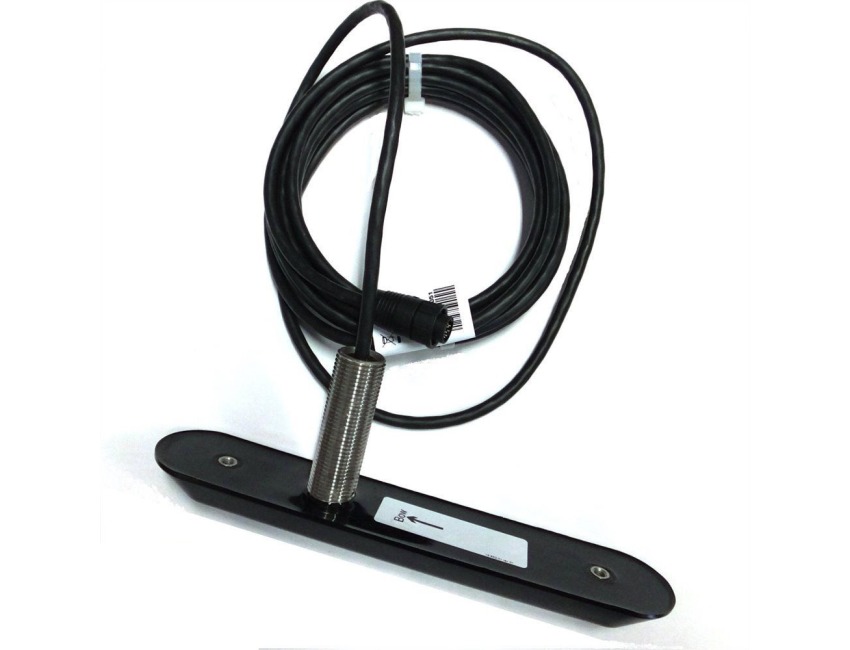

Lowrance StructureScan HD
Plastic Through Hull Transducer

The new StructureScan HD through hull transducerdelivers greater resolution and wider range for enhanced underwater images. It provides anglers and boaterswith three-dedicated transducer signals for crisp, clear views to the left, right and directly beneath the boat. This unit produces a higher level of definition straight down. Works withStructure scan HD sonar imaging systemand HDS Gen2 Touch models.
The through hull threaded tube andmounting hardware are allmade from stainless steel for maximum security.
Through hull streamlinetransducers slice through water without sonar-interfering bubbles for ideal sounding performance and cleanest sounder returns, even at speeds up to 61 kts/70 mph.
Specifications:
Body: L 270mm x W 51mm x H 25mm
Shaft: H 75mm x Diameter 24mm
Fairing block: No
Cable length: 20ft
455kHz/800kHz Frequency
Max Power: 500W RMS, 4000W Peak-to-Peak
