Lowrance / SIMRAD - StructureScan 3D - with Transom Mount Transducer Gen3 EVO2

Lowrance / SIMRAD StructureScan 3D
Structure-Scan 3D - with Transom Mount Transducer
For: Lowrance HDS Gen3 and Simrad NSS EVO2 / NSO EVO2

StructureScan 3D provides a new and easy way to view and interpret StructureScan HD Imaging data.

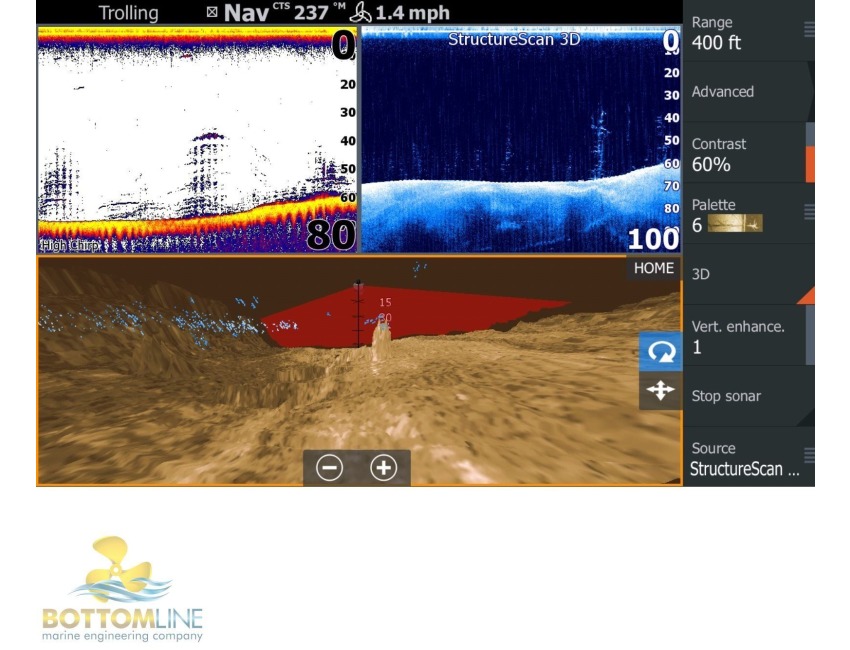

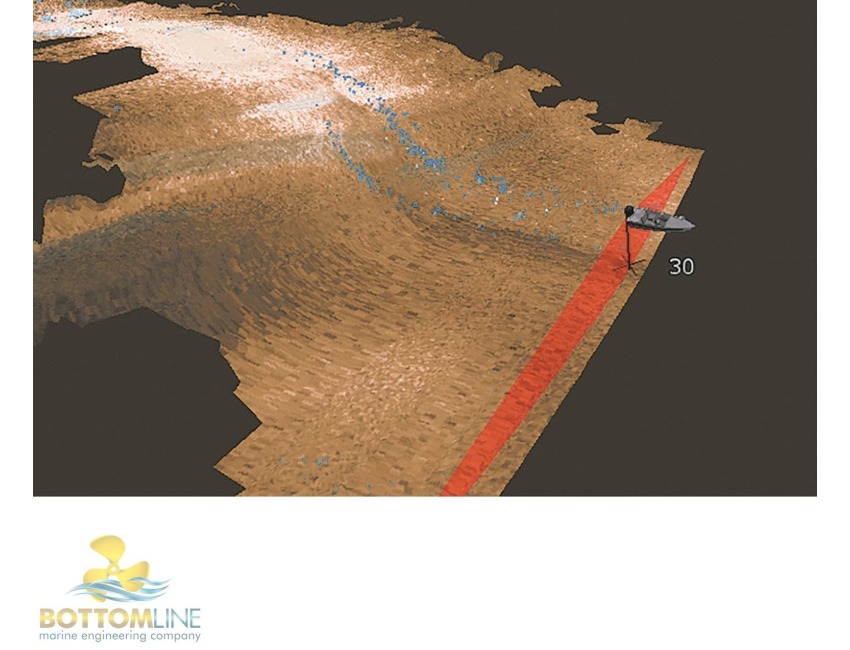

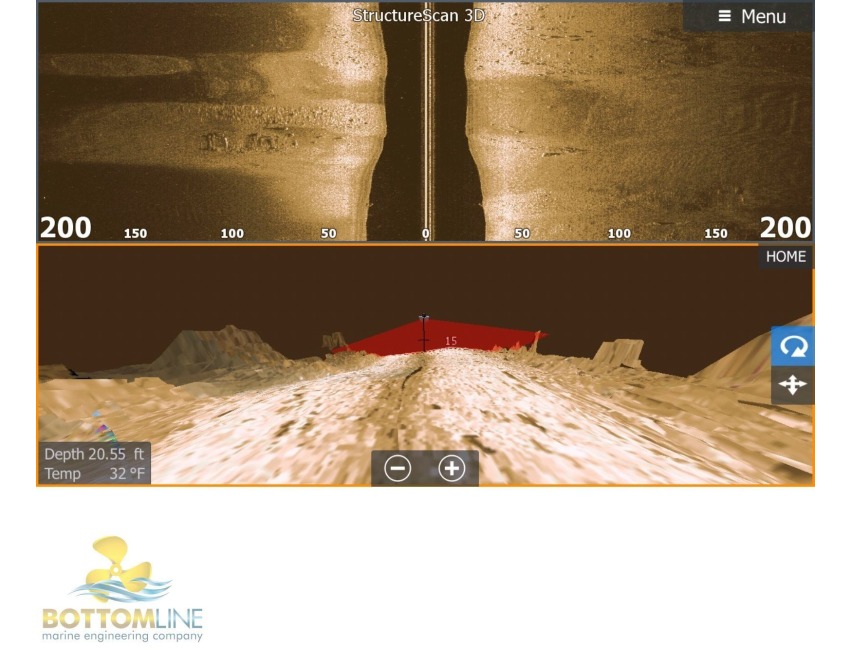

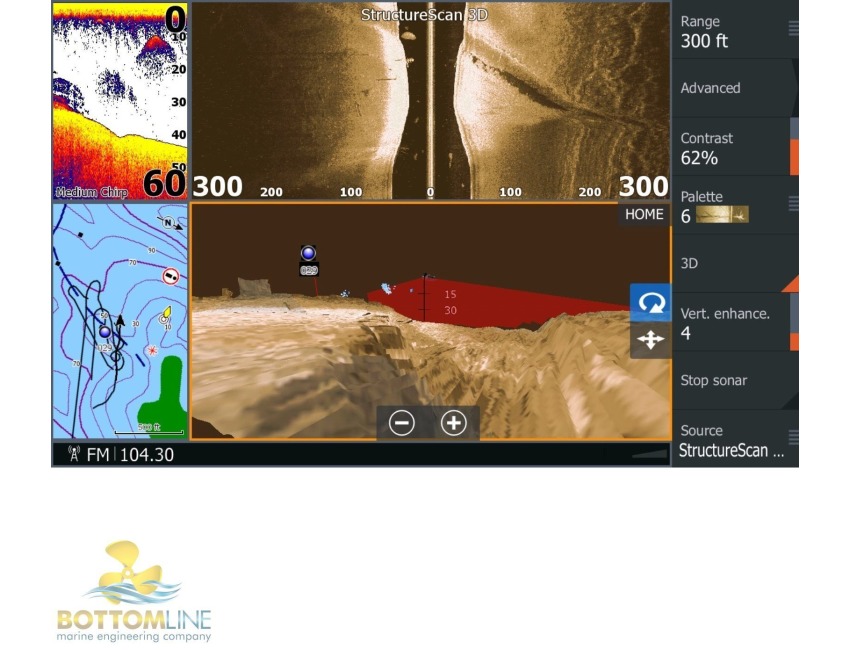

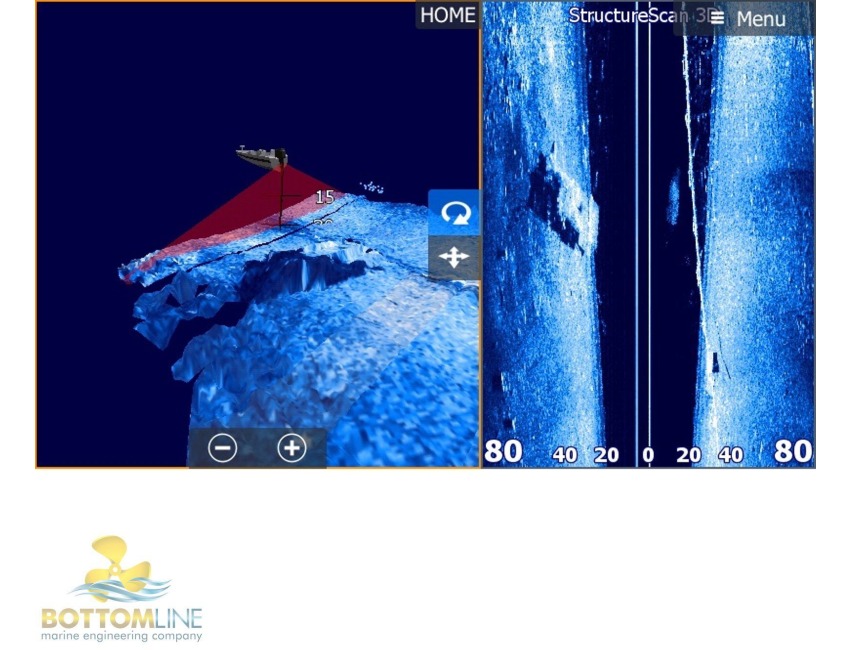

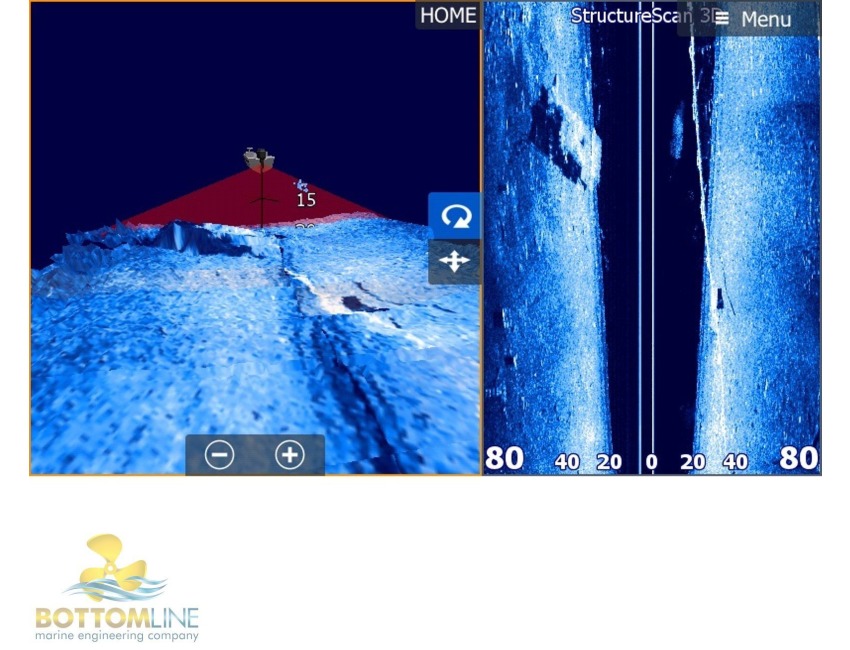

StructureScan 3D allows anglers to see fish, structure and bottom contour in a stunning three-dimensional view. StructureScan 3D imaging scans underwater terrain and fish-holding structure to create a high-resolution, 180-degree, three-dimensional view beneath your boat. With this unique imaging view, anglers gain a better understanding of where fish and structure are located in relation to their boat.
Easier Visualization
3D visualizations can be viewed from any angle with ScanTrack pan-tilt-rotate control using on-screen touch gestures and easy-to-use, preset viewing positions.
Master The Bottom Line
For the first time, StructureScan 3D allows anglers to easily see all underwater fish-holding structure and the fish as if they were fishing underwater.
Eliminate confusion when fish arent on the banks and in shallow, visible cover.
Now, a slow idle over a potential area quickly lets you master bottom contours, identify a vertical break or secondary point, and catch more fish in and near the main deep water channel.
Technical/Environmental Product Width180 mm / 7.1 in Product Height57 mm / 2.2 in Product Weight0.9 kg / 2 lbs Operating Temperature-28 to 75 C (-20 to 167 F) Water ResistanceIPX-7 Power Supply (Supply Voltage)12 or 24 V DC
Sonar Performance StructureScan Output Power500w RMS Max Side Range600ft each side Max Down Range300 ft Frequency 455kHz Six Cable Connections Ethernet3 ports Power4 Pin power connector
Included in the box:

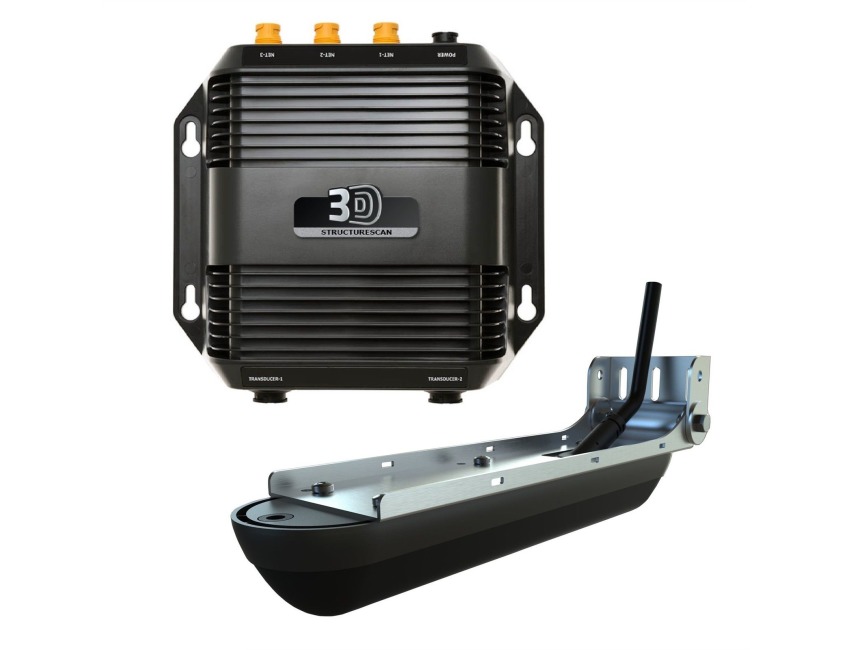

Structure-Scan Module Structure-Scan 3D skimmer transducer - With 20 FT (6m) integral Cable 15 FT (4m) Ethernet cable 6.6 FT (2m) Fused Power cable Installation Screws Installation & operation manuals
