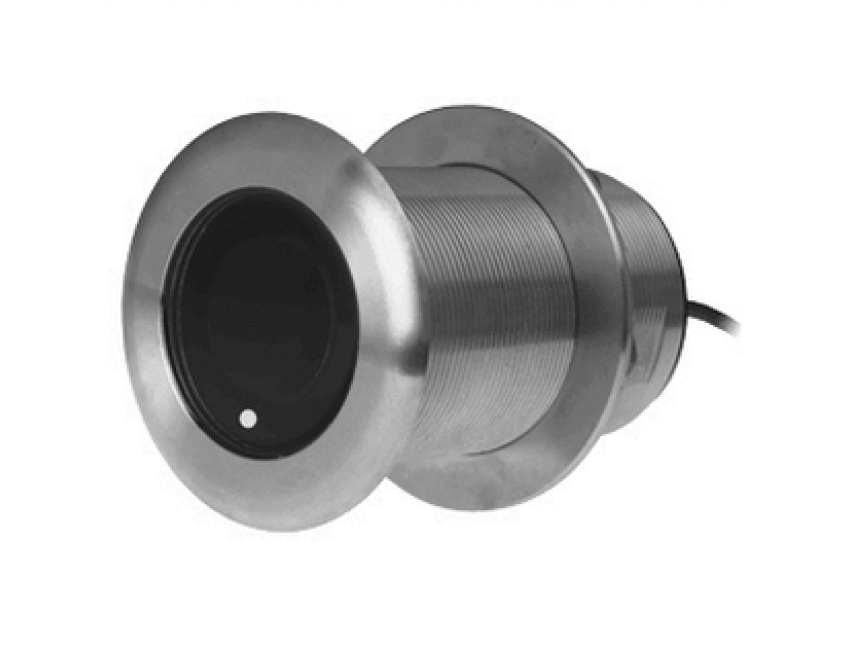

Lowrance / Simrad - SS75H Chirp 600W Stainless Through Hull 20 Degree Tilt - 000-13913-001

SS75H Chirp-ready Tilted Element™ Thru-hull
600 W - 20°

Airmar’s low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles.

The high-frequency band delivers a narrow beamwidth, excellent for pinpointing fish holding tight to wrecks, reefs, and other structure.

High frequency also delivers amazing target separation on baitfish and schooling gamefish.

The SS75H transducer delivers up to 80 kHz of total bandwidth in just one installation for amazing bottom detail and fish-target resolution.

SS75H transmits across the following bandwidth:

High frequency 130 to 210 kHz

Tilted Element™ transducers have the element fixed at a 20°, 12° or 0° angle within the housing.

Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise.

It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

The SS75H is available in three Tilted Element models:

This one is the fixed 20° tilted version for 16° to 24° hull deadrise

High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns

Low-profile, thru-hull housing provides good resolution at speed when installed properly

Stainless steel housing for use on stepped, planing or displacement hull

Specifications
Weight: 1.4 kg (3 lb.)
Recommended Boat Length: Up to 8 m (25')
Hull Material: Compatible with all hull materials
Hull Deadrise: Up to 24°
Acoustic Window: Urethane
Hole Diameter:
Fiberglass or wood hull—70 mm or 2-13/16"
Metal hull—79 mm or 3-1/8"
Transducer Element: One internal broadband ceramic assembly
600 W with a maximum depth performance to 214 m (700')
High frequency: 130 to 210 kHz
15° to 9° beamwidth
