Lowrance / SIMRAD / B&G / Airmar DST810 - Through hull Transducer - NMEA2000 P617V

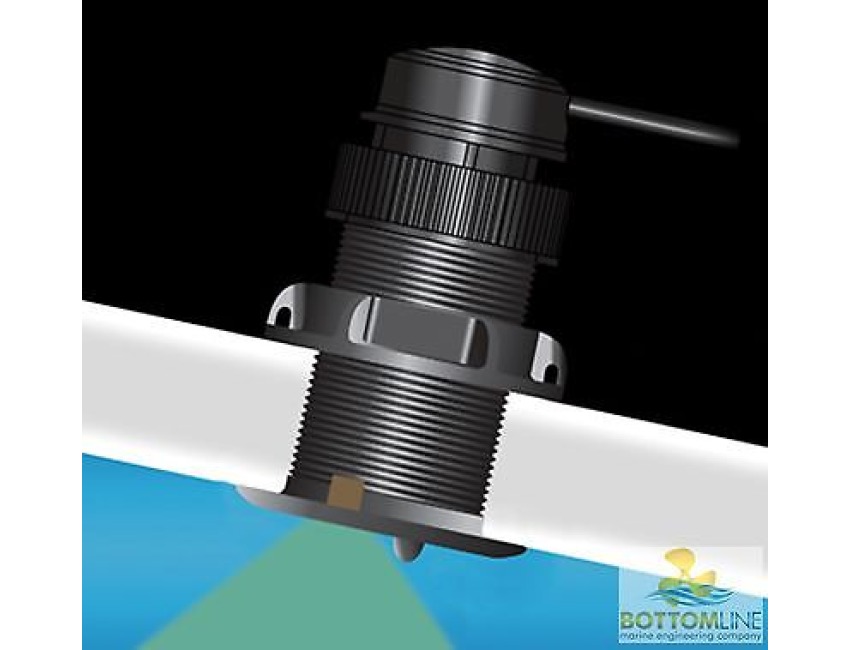

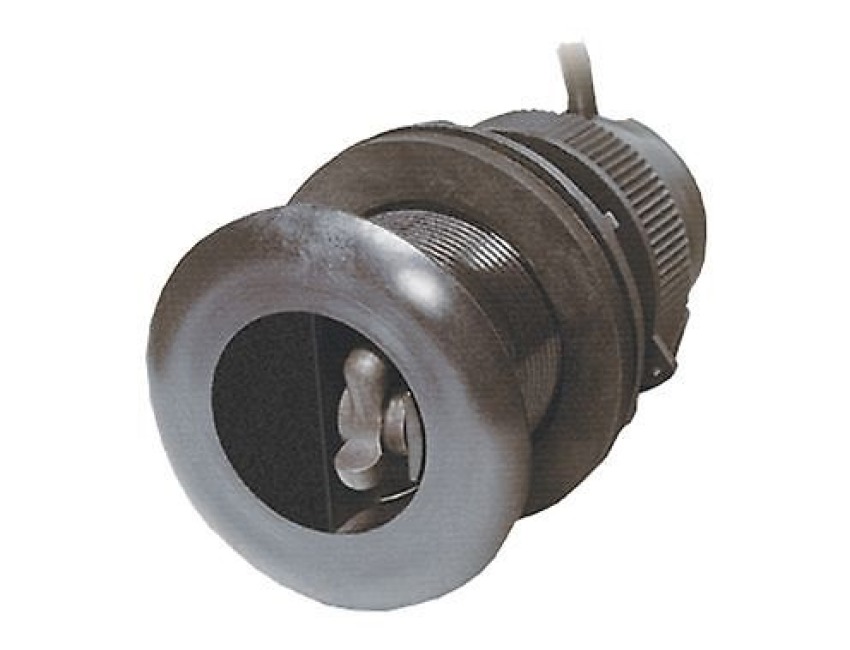

Airmar DST810 Through Hull Transducer

(Also Known as P617V)

Depth, Speed-Through-Water, Water Temperature, Boat Attitude

For a product to be considered “breakthrough”, it has to vastly change conventional behavior and enhance abilities.

The new DST810 Smart Multisensor, together with Airmar's CAST™ App, is the convergence of advanced hull data, matched with a simple and reliable way to calibrate accurate speed via a wireless device.

This changes how boaters receive and deliver information to get greater performance from their hull.

It is a simple, consistent way to calibrate speed-through-water regardless of what display system is on board. The DST810 and Airmar CAST App deliver capabilities that until now, were only available through expensive PC based software.

Besides water temperature, depth and newly upgraded 5 Hz (5X per second) speed-through-water output, the DST810 features an integrated attitude sensor for heel and trim data.

This information, combined with Airmar’s powerful and simple CAST App, makes heel-compensated speed calibration across multiple heel angles and speed ranges both fast and intuitive, and is independent of the onboard instruments.

All speed calibrations and NMEA configurations are stored in the DST810 sensor—not in the displays.

Features

NEW – 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making

NEW – Integrated attitude sensor for heel and trim benefits sailing and power boats

Simple attitude calibration to correct for off-center mounting

NEW – Wireless connectivity to Airmar's CAST App has new user-friendly benefits:

Calibrate the DST810 in a simple, intuitive way regardless of the instrument brand or model that is on board

Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs across the speed range

Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software

Enable and disable PGN’s and set offset and output rates

Specifications

Weight: 0.9 kg (2.0 lb)—Plastic

Acoustic Window: Urethane

Hull Deadrise: Up to 22°

Data Update Rate:

Depth: 1X/second

Speed: 5X/second

Heel/Trim: 10X/second

Attitude Accuracy: +/– 1° nominal after sensor calibration

Depth Frequency: 235 kHz

Minimum Depth Range: 0.5 m (1.6')

Maximum Depth Range: Up to 100 m (330')—NMEA 2000®

Speed Range: Up to 45 knots

Pressure Rating: 3 m (10')

Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile

Supply Voltage: 9 VDC to 16 VDC—per NMEA 2000

Supply Current: <200 mA—per NMEA 2000®

Wireless Protocol: Bluetooth Low Energy (BLE)

Wireless Range: Up to 30 feet depending on mount location

Standard Cable Length: 6 m (20') DeviceNet—NMEA 2000®

Temperature Sensor Accuracy: ±0.5°C (±1.8°F)

Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)

NMEA 2000 Load Equivalency Number (LEN): 3

CE Regulation: Complies to IERC60945
