Lowrance / Simrad - B75H Chirp 600W Bronze Through Hull 12 Degree Tilt = 000-12496-001

Click to enlarge

Code165763381193

MPN 000-12496-001

£859.49

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

B75H 12 Degree tilt - 000-12496-001

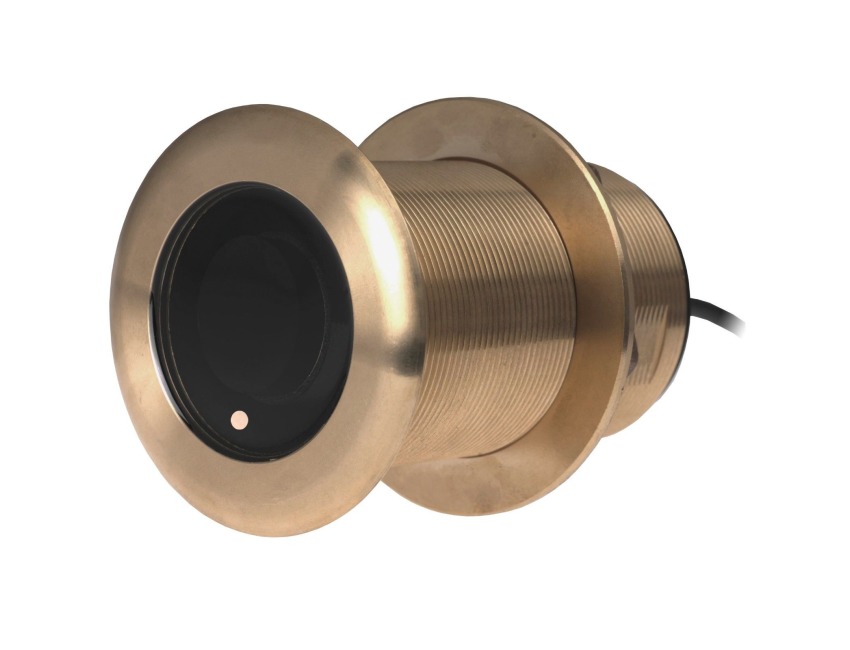

B75H Depth/Temperature Transducer 12° Tilt

7-Pin Blue plug

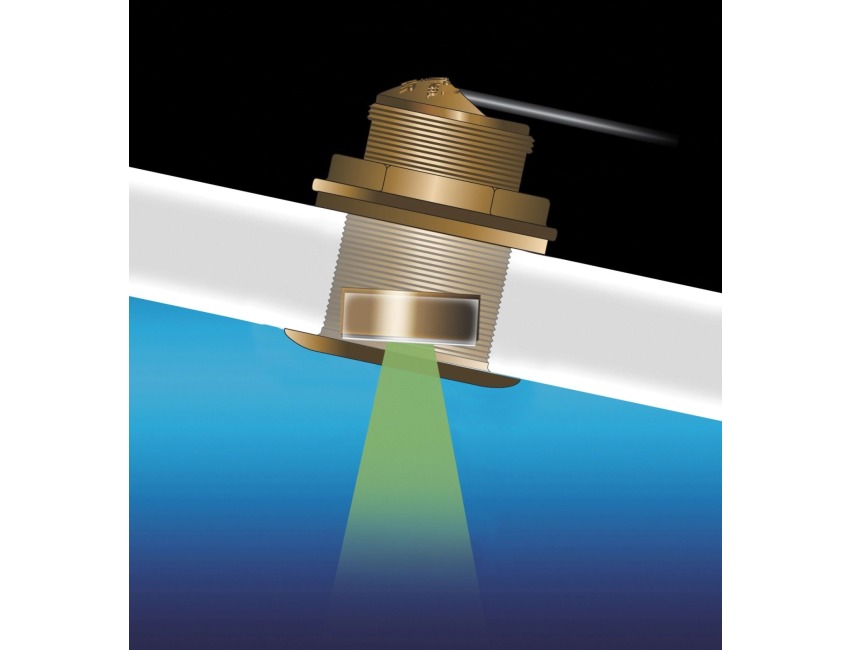

The B75H is a bronze, thru-hull, tilted, high-frequency (130-210kHz), depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.

Key Features

CHIRP
-CHIRP transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures.

Depth/Temperature
-Calculates how deep the water is, so that you can avoid running aground, whilst also incorporating a temperature sensor for accurate water temperature readings.

Easy To Install

High Frequency
-CHIRP range is 130kHz-210kHz for good target detail in shallow water and excellent bottom tracking in deep water.

Highly Accurate
-Provides extremely accurate data.

12° Tilt
-The 12° tilt is ideal for boats with a 8° to 15° hull deadrise.

Low Profile
-The low profile housing minimizes drag with just 5mm extending outside of the hull.

Plug & Play Connection
-Easily connect to NSS, NSE, NSO or Lowrance

Features:

Depth & fast-response water-temperature sensor

High—CHIRPS from 130 kHz to 210 kHz, 15° to 9° beamwidth

12° tilted version

80 kHz of total bandwidth from one transducer

Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth

Bronze transducer housing

Boat Size: Up to 8 m (25’)

Hull Type: Fiberglass or wood

Specification
Frequency: Chirp frequency 130 kHz to 210 kHz
Rated RMS Power: 600W
Weight: 1.4kg (3lb.)

Specification List

Type Transducer
