Lowrance - Bronze HDI Through Hull - Transducer - 12 degree Tilt
Click to enlarge
Code186150708732
MPN 000-13906-001
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

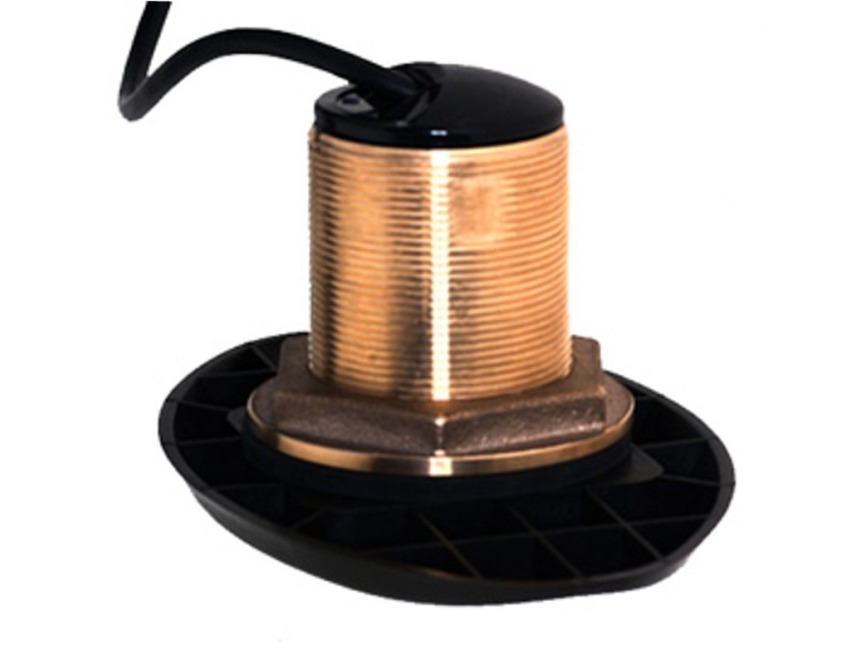

Hybrid Dual Imaging (HDI) Bronze 12 TiltThru-Hull Transducer - B148
Provides Broadband Sounder (50/200kHz) and DownScan Imaging
(455/800kHz)
(12 Tilted element)
Includes Temperature Sensor
Includes a 33' (10M) cable Operating Frequency 50kHz
Max Depth: 3,000'
Beam(-3dB): 45
Operating Frequency 200kHz
Max Depth: 1,000'
Beam(-3dB):11
Operating Frequency 455kHz
Max Depth:300'
Coverage(-3dB) Fore/Aft:3
Coverage (-3dB) Port/Starboard: 55
Operating Frequency 800kHz
Max Depth:100'
Coverage(-3dB) Fore/Aft:1.5
Coverage (-3dB) Port/Starboard: 30
Specification List
| Type | Transducers |
|---|
