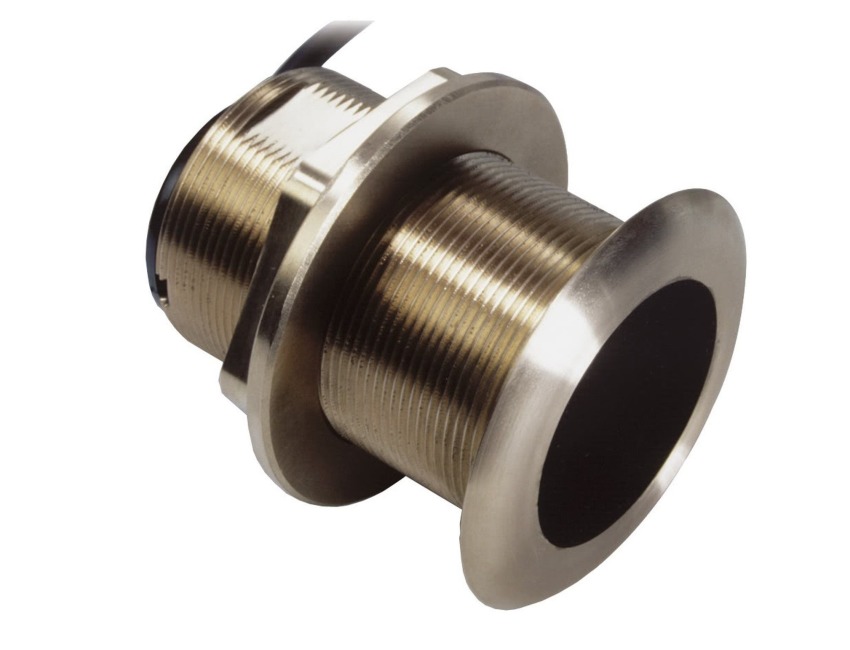

Lowrance - B60 - Elite - HDS - 600W Bronze Through Hull Transducer - 20 degree Tilt

Airmar B60 Thru-Hull Transducer 20 - degree Tilt (Blue Plug)
The dual-frequency, 50/200 kHz, B60has atilted Elementand low-profile housings that compensate for hull deadrise.
The innovative design tilts the ceramic element inside the transducer housing
Inside the housing, the ceramic element is tilted for built-in, deadrise compensation.
The resulting vertical beam gives excellent echo returns for more-accurate depth readings.
The nearly-flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.
This unique design offers professional and recreational boaters the advantages similar to using a fairing block but installed nearly flush to the hull.
Applications Inshore or coastal fishing in shallow to medium depths. Slow trolling, structure fishing and drifting Deep water lake fishing
Features Fixed 20 degree tilted version for 15 to 25 degree hull deadrise Engineered for centre console and trailered boats Low-profile protrusion below the hull No affect on your boats running performance Built in Temperature sensor Boat size: Up to 8m (25ft)
Specification Frequency: Dual frequency 50kHz and 200kHz Beam Width: 45 @ 50kHz, 12 @ 200kHz Rated RMS Power: 600W Weight: 1.4kg (3lb.)
