Loncin D440FD5 10Hp Diesel Stationary Engine Hatz Yanmar L100 Lombardini

Click to enlarge

Code1

MPN D440FD5

£1134.99

Delivery Information

Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.

Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders

Description

Heavy item - Please contact us before clicking to buy if you are in Northern Ireland, Republic of Ireland, Channel Islands, Isle of Wight, Scilly Isles, Scottish Highlands or Scottish Islands

D440FD 10Hp Diesel Stationary Engine
Powerful horsepower: the power of Loncin diesel engine is nearly 25%
(nearly 1kw) higher than that of other similar engines, with lower oil consumption under the same power and broader application.
Easy to start: designed with automatic decompression, more convenient for user operation; in terms of cold start, the engine with electric starter adopts a electric heating plug to heat the air inlet as to guarantee an easy start for users even in cold conditions.
Low noise and vibration: based on precise analog calculation, the operation with most optimized noise is obtained, the noise of which is 2dB lower than that of similar machines. (As a common sense, the noise will increase by 3bB when vibration becomes one time intense).
Long service life: the engine body, crankshaft, connecting rod and other structures are designed to endure high strength and users are guaranteed free warranty for 2000h or 2 years.
Easy maintenance: overhead valve can decrease the carbon accumulation, spot inspection on cylinder head can be conducted easily, the maintenance for air filter with foam filter element, simple equipment and high dust resistance becomes much easier.
Unique appearance: compact design, rational layout and patented appearance design.
Molybdenum disulfide piston: with reference to the latest piston and cylinder design in vehicle mechanism and the piston skirt is painted with molybdenum disulfide lubricating material, to improve power and to reduce friction between piston and cylinder sleeve and noise.
Perfect compatibility: light weight and exquisite product as a result of improved design of silencer, starter, air filter and fuel tank, which is more convenient for users to carry power equipment.
Engine Specifications:
Model: D440FD
Type: 4 Stroke Aircooled Diesel
Fuel system: Direct Injection
Starting Method: Electric Start / Recoil Pull Start
Piston Displacement: 441cc
Bore x Stroke: 86mm x 76mm
Compression ratio: 211
Gross Power: 10Hp
Net Power: 9.1Hp / 3600rpm
Rated speed: 3600rpm
Max Speed: 3780 rpm
Idle Speed: 1300rpm +- 150

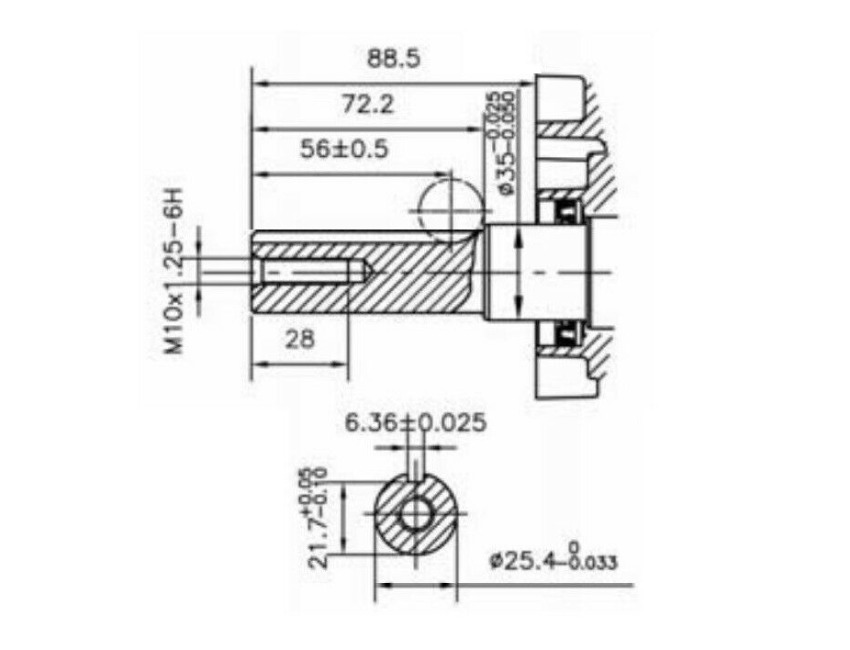

Output shaft size: 1" parallel with keyway
Lubrication System: Forced
Air Filter: Dual element, semi-dry (i.e. oil dampened)
Oil capacity: 1.6 L
Fuel tank capacity: 4.5L

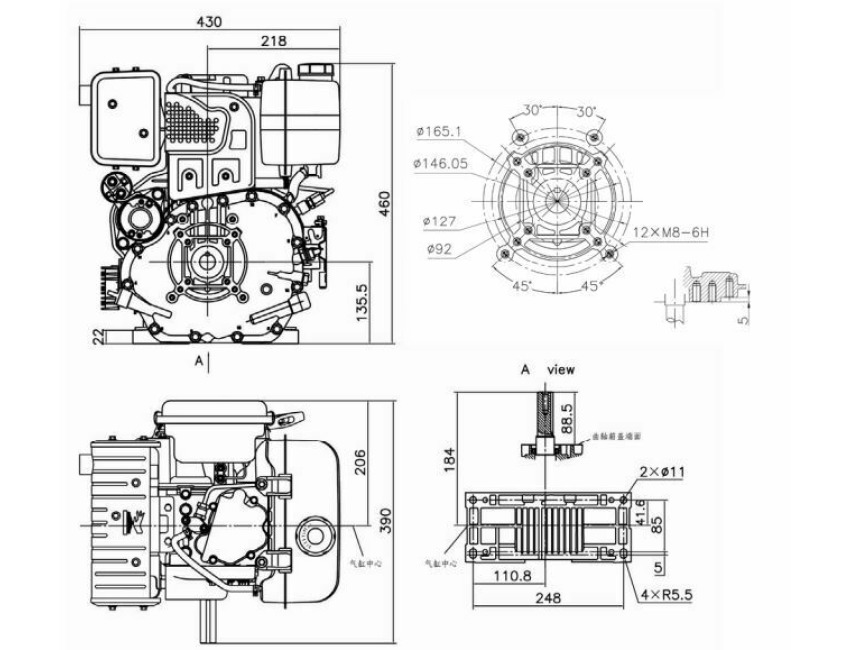

Dimensions(L x W x H): 420 × 450 × 490mm
Net Weight: 50Kg

Specification List

Type 4 Stroke Aircooled Diesel Engine Number of Cylinders 1
Fuel Type Direct Injection Diesel Gross HP 10 hp
Cylinder Capacity 441cc PTO Shaft size 1" Parallel
Start System Electric & Recoil pull start Dry Weight 50Kg
Power (kW) 6.8 Modified Item No
Country/Region of Manufacture China Featured Refinements Stationary Diesel Engine
