Genuine Mercury MerCruiser Alpha One Gimbal Hinge Pin (with groove) - 77123
Click to enlarge
Code1
MPN 77123
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

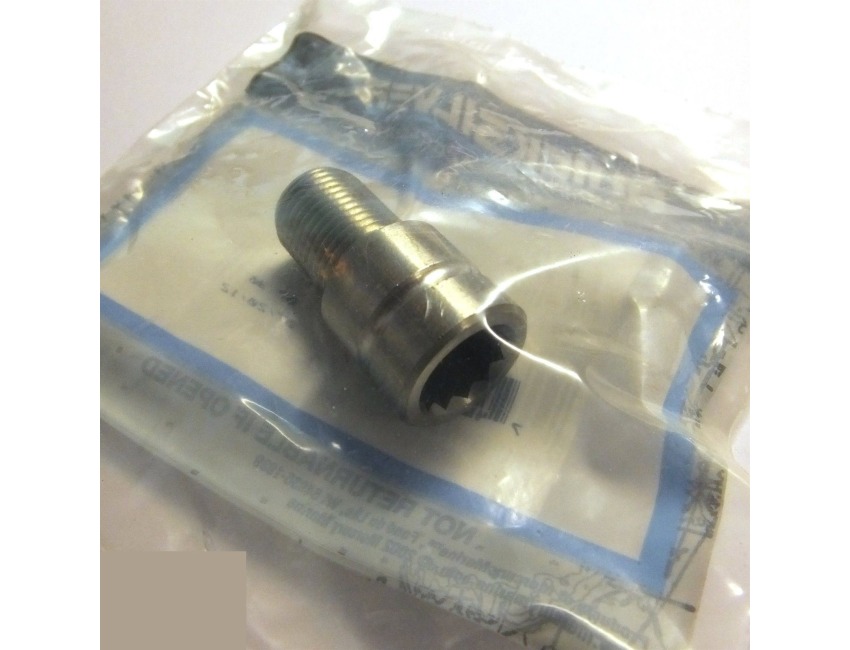

QuicksilverMercuryMerCruiser Gimbal ring hinge pin (with grease groove)
Part Number:77123
Genuine OEM Part Made by Quicksilver for Mercury Marine
Hinge pinfor the following models:
(Caution: There are two types. We stock both types so please make surebefore ordering)
Dimensions: Length overall: 39mm Thread Length: 20mm Head Diameter: 20.6mm Thread: 5/8" (15.75mm approx.)
Model application:
ALPHA ONE (GEN.II) 1998 AND UP \ 0M815638 & Below
Also:
ALPHA ONE (GEN.II) 1996-1997 \ 0F680000 THRU 0K999999 ALPHA ONE (GEN.II) 1991-1995 \ 0D469859 THRU 0F679999 R/MR/ALPHA ONE (Sterndrive) 1983-1990 \ 6225577 THRU 0D469858 R/MR/ALPHA ONE (Transom Assembly) 1983-1990 \ 6216687 THRU 0D469858
Plus Many earlier drives made by MerCruiser
Specification List
| Country/Region of Manufacture | Mexico | Type | Hinge pin |
|---|
