Genuine Mercury MerCruiser Alpha / Bravo Gimbal Hinge Pin - 10-86801
Code164856295757
MPN 10-86801
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

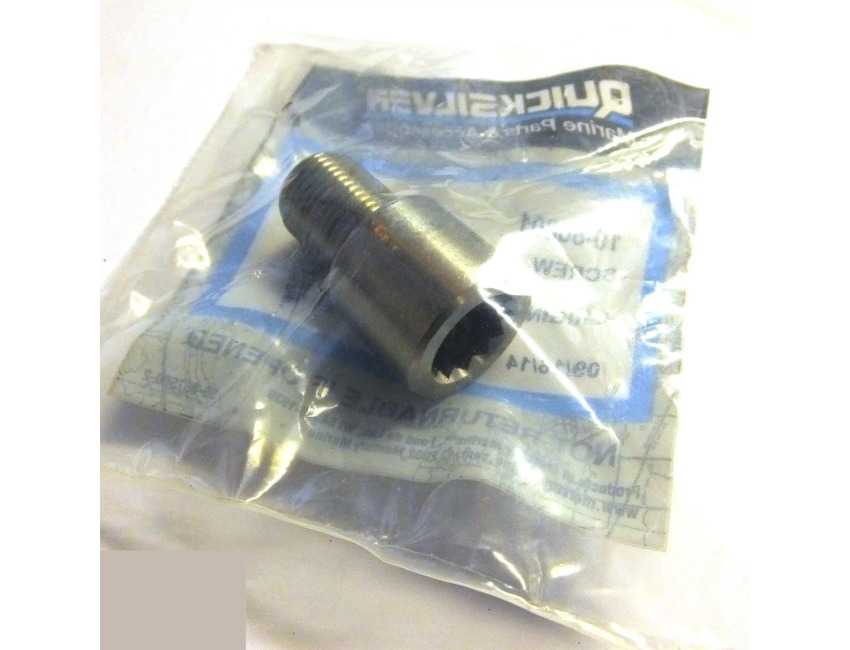

Quicksilver Mercury MerCruiser Gimbal ring hinge pin
Part Number:10-86801
Genuine OEM Part Made by Quicksilver for Mercury Marine
Hinge pin for the following models:
(Caution: There are two types. We stock both types so please make sure before ordering)
Dimensions: Length overall: 39mm Thread Length: 20mm Head Diameter: 22mm Thread: 5/8" (15.75mm approx.)
Model application:
ALPHA ONE (GEN.II) 1998 AND UP \ 0L100040 & Up
Also:
BLACKHAWK 1994-1995 \ ALL
BRAVO ONE \ 0B664190 THRU 0F729999
BRAVO ONE \ 0F730000 THRU 0M100000
BRAVO ONE \ 0M100001 THRU 0W249999
BRAVO ONE \ 0W250000 & Up
BRAVO ONE \ 0W250000 & Up
BRAVO THREE \ 0B664190 THRU 0F729999
BRAVO THREE \ 0F730000 THRU 0M100000
BRAVO THREE \ 0M100001 THRU 0W249999
BRAVO THREE \ 0W250000 & Up
BRAVO THREE \ 0W250000 & Up
BRAVO TWO \ 0B664190 THRU 0F729999
BRAVO TWO \ 0F730000 THRU 0M100000
BRAVO TWO \ 0M100001 THRU 0W249999
BRAVO TWO \ 0W250000 & Up
BRAVO TWO \ 0W250000 & Up
BRAVO X ONE \ 0M100001 THRU 0W249999
BRAVO X ONE \ 0W250000 & Up
BRAVO X ONE \ 0W250000 & Up
BRAVO X THREE \ 0M100001 THRU 0W249999
BRAVO X THREE \ 0W250000 & Up
BRAVO X THREE \ 0W250000 & Up
BRAVO X TWO \ 0M100001 THRU 0W249999
BRAVO X TWO \ 0W250000 & Up
BRAVO X TWO \ 0W250000 & Up
BRAVO XR ONE \ 0L914990 THRU 0W239999
BRAVO XR ONE \ 0W240000 & Up
BRAVO XR SPORTMASTER \ 0M052945 THRU 0M906877
BRAVO XR SPORTMASTER \ 0M906878 & Up
BRAVO XR THREE \ 0W240000 & Up
BRAVO XZ ONE \ 0L914990 THRU 0M999999
HI PERFORMANCE TRANSOM \ 0W150003 & Up
INTEGRATED TRANSOM \ 0M052768 & Up
INTEGRATED TRANSOM \ ALL THRU 0M052767
VAZER DRIVE \ 0W995000 & Up
VAZER TRANSOM \ 0W755000 & Up
Specification List
Type | Hinge pin | Country/Region of Manufacture | Mexico |
---|
