Genuine Mercury carb rebuild kit - 2 - 2.5 - 3.3 - Quicksilver - 855546A4 / 8M0171816
Click to enlarge
Code181613735956
MPN 8M0171816
Delivery Information
Currently we only deliver to the UK (inc. Northern Ireland), Channel Islands, Norway, Australia, New Zealand, Canada and USA for online ordering - please contact us on sales@bottomlinemarine.com if you live elsewhere.
Free shipping on UK orders over £75 (£5.95 for UK orders under £75)
Excludes certain heavy items
All prices include UK VAT - No customs or duty fees for UK orders
Description

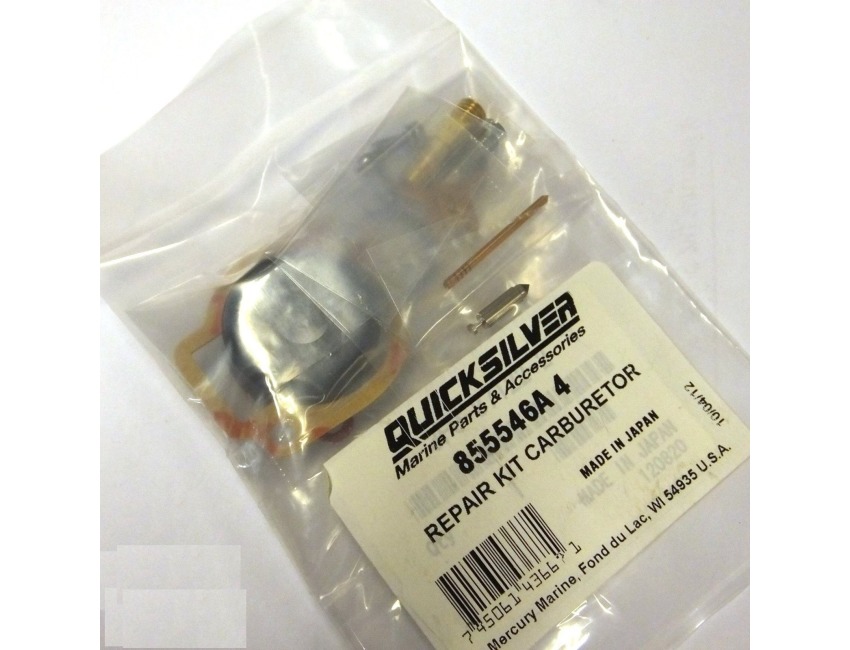

Genuine Quicksilver- Mercury / Mariner Carb rebuild kit
Part Number : 8M0171816
Supseded from: 855546A4
Genuine Quicksilver part: Carb rebuild kit for Mercury 2 stroke outboard motors.
Fits 2hp, 2.5hp and 3.3hp (Tohatsu derived engines)

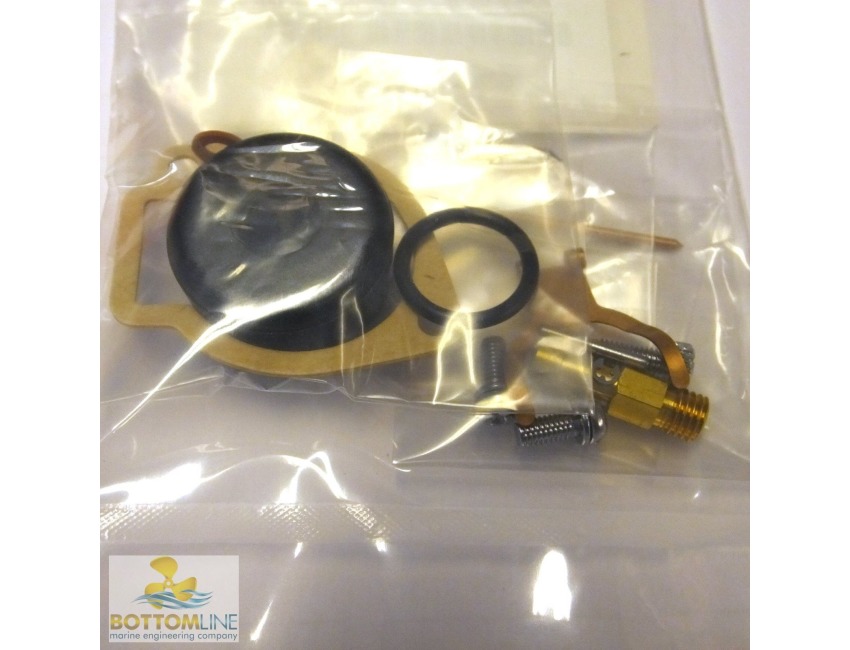

Kit contents:

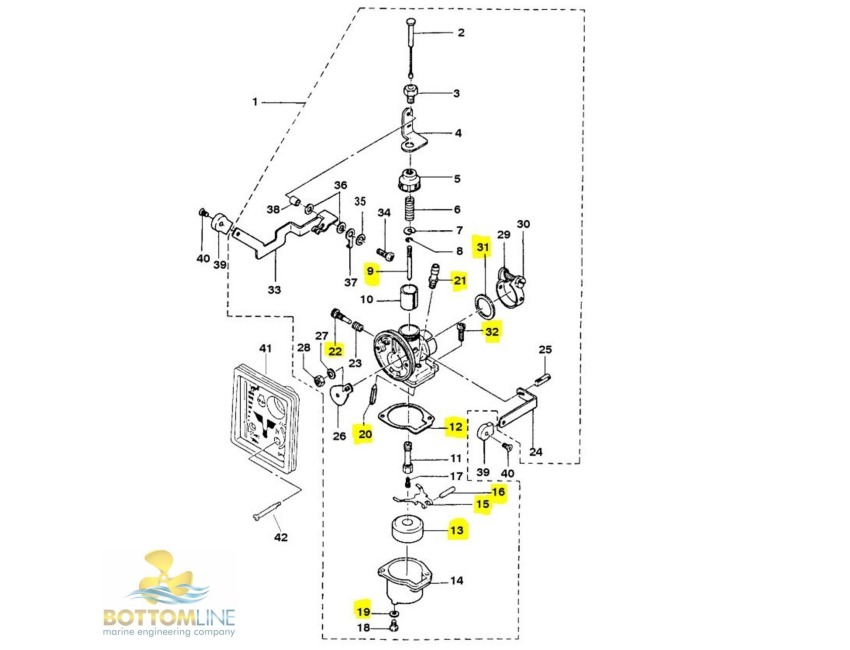

Part number / Description / Diagram number
8151263 / Jet needle / (9) 27-95324 / Float bowl gasket / (12) 95259 / Float / (13) 952621 / Fuel inlet valve hinge / (15) 17-95327 / Fuel inlet valve lever hinge pin / (16) 27-95326 / Fibre washer for drain screw (4mm) / (19) 952631 / Fuel inlet valve / (20) 952641 / Fuel inlet valve seat/hose tail / (21) 10-95328 / Pilot adjusting screw / (22) 25-811601 / Base 'O' ring / (31) 10-815071 / screws with captive washers (2x M4×10) / (32)
This kit may also be used to rebuild certain Tohatsu carbs
If unsure please contact us with the model and serial number of your outboard.
We also sell the complete 2.5hp carb, eBay item number: 181511777685
Specification List
| Type | Carb rebuild kit | Sub-Type | Carb Repair Kit |
|---|---|---|---|
| Country/Region of Manufacture | United States |
